For Sale: MIDAS HERITAGE 3000 (UPGRADED; 52 CHANNELS)
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on January 10, 2024 - Viewed 752 times

MIDAS H3000 (YOM: 2005) (S#: 3218) SUPERB (8-9) FEATURES:

- ULTIMATE FLEXIBILITY: THE HERITAGE 3000 IS A UNIQUE LIVE PERFORMANCE MIXING CONSOLE THAT BRINGS COMPLETE FLEXIBILITY TO THE LIVE CONSOLE ARENA. AT HOME IN A THEATRE, AN OUTSIDE BROADCAST TRUCK, ON STAGE OR AT FRONT OF HOUSE, THE H3000 OFFERS A UNIQUE, EASY TO USE, THREE POSITION SWITCHING SYSTEM THAT CHANGES THE CONSOLES OUTPUT FUNCTIONS ACCORDING TO THE APPLICATION.

- INTERCHANGEABLE MODULES: THE H3000 IS EASILY SERVICEABLE DUE TO ITS FULLY MODULAR DESIGN. STEREO MODULES CAN BE EASILY SWAPPED WITH MONO MODULES IN ANY INPUT POSITION WITHIN THE FRAME.

- IMPROVED XL4 MIC PRE AMP: THE H3000 FEATURES A NEW MIC AMPLIFIER WHICH FURTHER IMPROVES ON THE XL4 DESIGN GIVING A CMR IMPROVEMENT OF +30DB WHILST RETAINING THE XL4'S CONSTANT HF BANDWIDTH TOPOLOGY WHICH ASSURES EXCELLENT AMPLIFIERS STABILITY, RF REJECTION AND NOISE PERFORMANCE AT ALL GAINS.

- EQUALIZER: WARM, RESPONSIVE AND FRIENDLY FOUR BAND FULLY PARAMETRIC XL4 EQUALIZER DESIGN.

- DIRECT OUTPUTS: EVERY INPUT MODULE IS FITTED WITH A DIRECT OUTPUT AS STANDARD WITH ITS OWN LEVEL CONTROL AND FRONT PANEL SWITCHING WHICH SELECTS THE SOURCE FROM PRE / POST EQUALIZER.

- 24 MIX SENDS: THE 24 MIX SENDS CAN BE EASILY CONFIGURED DEPENDANT ON THE REQUIRED APPLICATION. EACH PAIR OF OUTPUTS CAN EITHER BE 2 AUDIO SUB GROUPS OR 2 AUX SENDS OR A STEREO AUX SEND (LEVEL / PAN). THESE SETTINGS ARE MEMORISED ON POWER DOWN.

- INSERTS: EACH CHANNEL HAS A HALF NORMALIZED FULLY BALANCED INSERT SEND AND RETURN POINT WHICH CAN BE SWITCHED IN OR OUT FROM THE FRONT PANEL AND SET AS EITHER PRE OR POST EQUALIZER.

- SPACIAL IMAGE SYSTEM (SIS): EACH INPUT MODULE IS FITTED WITH THE MIDAS SPACIAL IMAGE SYSTEM (SIS™) FOR USE WITH LEFT, CENTER, AND RIGHT LOUDSPEAKER SYSTEMS. WHEN SIS IS ACTIVE, THE UNIQUE IMAGE CONTROL ROTARY FADER MODIFIES THE ACTION OF THE PAN CONTROL ALLOWING THE INPUT TO BE FED INTO ALL 3 OUTPUTS. THIS CAN BE PARTICULARLY USEFUL FOR DISTRIBUTING THE LOAD OF HIGH ENERGY, CENTER PANNED SOUNDS ACROSS ALL FOH LOUDSPEAKER ARRAYS.

- VCA GROUPS AND MUTE GROUPS: EACH CHANNEL CAN BE CONTROLLED BY ANY COMBINATION OF THE 10 VCA MASTER FADERS AND 10 MUTE MASTERS. ASSIGNMENT OF THESE BUSSES CAN BE UNDER AUTOMATION CONTROL. A SAFE SWITCHES CAN DISCONNECT THE CHANNEL FROM ALL MUTE GROUPS AND / OR VCA CONTROL.

- LINK CAPABILITY: DIRECT INPUTS ON ALL OUTPUTS ALLOW THE POSSIBILITY TO LINK CONSOLES TOGETHER OR TO A SIDECAR / EXTENDER.

- MATRIX: AS STANDARD THE 8 MATRIX OUTPUTS DERIVE THEIR SIGNALS FROM THE 24 MIX SENDS, LEFT, RIGHT AND MONO MASTERS CREATING A 27 X 8 MATRIX.

- AUTOMATION: THE AUTOMATION SYSTEM CAN STORE AND RECALL UP TO 500 SCENES. VCA SUB GROUP ROUTING IS AUTOMATED AS WELL AS ALL INPUT AND MAJOR OUTPUT MUTES. INPUT CHANNELS AND VCA SUB GROUP LEVELS CAN BE ALSO CONTROLLED VIA THE AUTOMATION SYSTEM.

- MECHANICAL AND ELECTRONIC DESIGN MODULES: ALL MODULES ARE EXTRUDED TO PROVIDE EXCEPTIONAL MODULAR STRENGTH.

- PCB MATERIAL: MILITARY SPECIFICATION PCB MATERIAL (FR4).

- FRAME: ZINC PLATED STEEL CHASSIS IN 3 BOX SECTIONS TO PROVIDE EXCEPTIONAL STRENGTH. THE AUDIO IS SEPARATED FROM DIGITAL AUTOMATION CONTROL BY THE STEEL CHASSIS ALONG THE LENGTH OF THE CONSOLE. ANY INTERCONNECTIONS BETWEEN THE TWO ARE FILTERED ON BOTH ENDS OF THE CABLE TO ENSURE AUDIO PURITY.

- FADERS: P&G FADERS USED THROUGHOUT.

- AMP DESIGN: LOW NOISE SUMMING AMPLIFIERS.

- BUSS DESIGN: HUM / NOISE CANCELLING BUSSES.

- POTENTIOMETERS: HIGH COST, HERMETICALLY SEALED ALPS POTENTIOMETERS USED THROUGHOUT.

- COMPONENTS: TIGHT TOLERANCE RESISTORS AND CAPACITORS USED THROUGHOUT. STABLE CIRCUITRY DESIGN THAT BANISHES OSCILLATION.

EXTRAS:

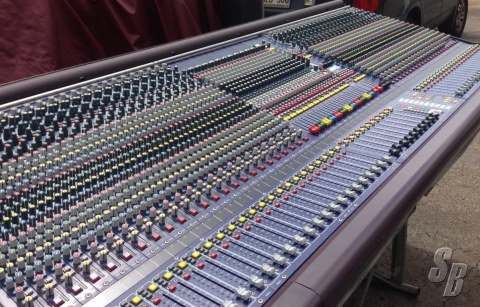

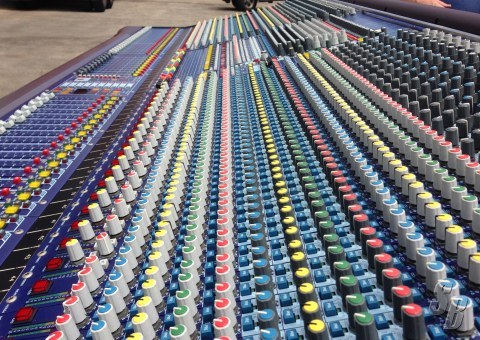

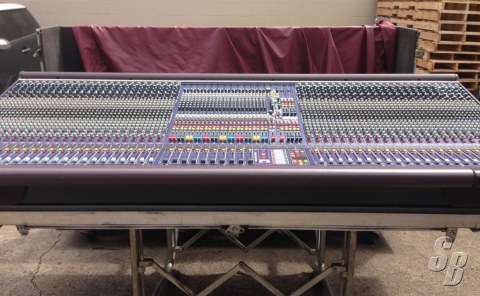

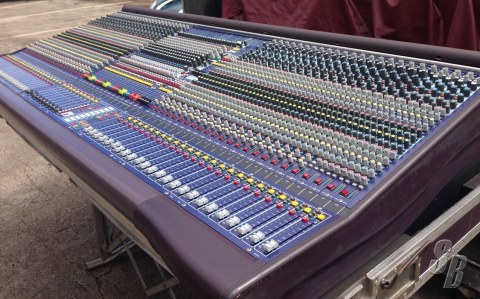

(1) MIDAS H3000 CONSOLE 52 CHANNEL ANALOG CONSOLE (44 MONO, 4 STEREO CARDS) WITH SOFTCOVER

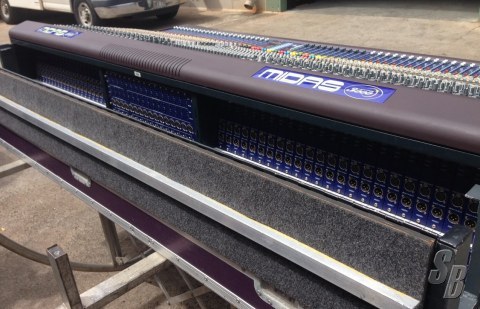

(1) CONSOLE FLIGHT CASE

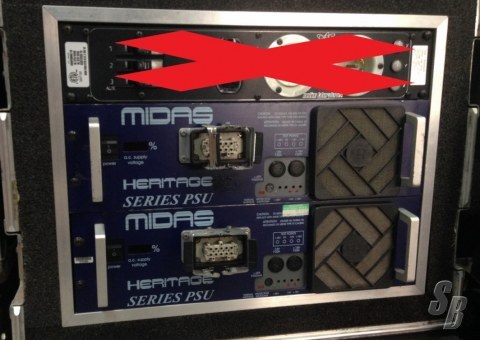

(2) MIDAS H3000 POWER SUPPLIES IN FLIGHT CASE

(1) SET OF LITTLITES

MODIFICATIONS:

(4) STEREO CARDS ADDED FOR A TOTAL OF 52 CHANNELS

HISTORY:

NEVER TOURED; CONSOLE WAS USED FOR LOCAL CONCERTS AND CORPORATE EVENTS.

COMMENTS:

NONE

THIS UNIT WAS NEVER TOURED
