ID # 111691    CURRENT CATEGORY - CONSOLE


For Sale: SOUNDCRAFT VI4/6 TO 5000/7000 LOCAL RACK UPGRADE KIT
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on December 21, 2023 - Viewed 452 times

SOUNDCRAFT VI4/6 TO 5000/7000 LOCAL RACK UPGRADE KIT

SOUNDCRAFT  VI4/6 TO 5000/7000 LOCAL RACK UPGRADE KIT

SKU# 5100265-00

SEE THE SOUNDCRAFT VI1000 DIGITAL MIXING SYSTEM CONSOLE

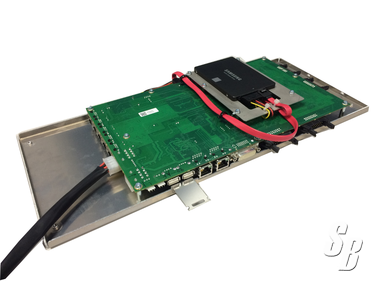

THE VI400/600 CONTROL MODULE IS DESIGNED TO DIRECTLY REPLACE THE VI4/6 ‘SILVER BOX’ CONTROL MODULE AND PROVIDE A FASTER PROCESSOR, MORE RELIABLE PERFORMANCE WITH HARD-SOLDERED DISPLAYLINK-BASED GRAPHICS OUTPUTS RATHER THAN THE PCI GRAPHICS CARD OF THE ORIGINAL SYSTEM.

THE NEW MODULE RUNS A VARIANT OF V6.X SOFTWARE, BUT WITH A CUT-DOWN FEATURE SET COMPARED TO VI000- SERIES CONSOLES, APPROPRIATE TO THE CAPABILITIES OF THE VI2/4/6 SURFACE AND LOCAL RACK. A USEFUL APPLICATION FOR THIS UPGRADE WOULD BE TO GIVE AN EXISTING SURFACE

A NEW LEASE OF LIFE AND ALLOW IT TO FUNCTION AS AN EMERGENCY BACKUP SURFACE, RATHER THAN BEING DISPOSED OF, WHEN A FULL VI5/7000 UPGRADE IS PURCHASED.

THE CONTROL SURFACE WILL EXTERNALLY REMAIN A VI4 OR 6, BUT WILL IDENTIFY AS A VI400 OR 600 ON ITS MAIN MENU SCREEN.

NOTE THAT THE CONTROL MODULE UPGRADE IS ALSO AVAILABLE FOR VI2 CONSOLES, WHICH WILL BECOME VI200 ONCE UPGRADED.

FEATURES

FEATURES AVAILABLE WHEN A VI2/4/6 CONSOLE IS UPGRADED WITH THIS OPTION:

  • NEW-LOOK 3D-VISTONICS TOUCHSCREEN GRAPHICS, AS VI000-SERIES CONSOLES
  • 30-SECOND FAST-BOOT
  • FASTER SURFACE RESPONSE, PARTICULARLY ON LAYER CHANGES
  • FUNCTIONING SETUP BUTTONS FOR ENCODER USER MODE ASSIGN AND F1-6-KEY ASSIGN
  • SHURE MIC MONITORING
  • FULL-FEATURED VISI REMOTE, WITH EQ, DYNAMICS & METERING (V6.2 S/W AND VISI REMOTE V3.2 ONWARDS)
  • ‘MIRRORING’ OF TWO CONSOLES (V6.2 S/W ONWARDS)
  • ABILITY TO CONTROL THE CONSOLE ON-LINE USING VIRTUAL VI AS WELL AS THE CONTROL SURFACE
  • INPUT CHANNELS ASSIGNABLE TO MASTER BAY FEATURE (V6.2 S/W ONWARDS)
  • INCREASED NUMBER OF INSERT POINTS (64) AND TIE LINES (128)
  • ABILITY TO USE THE UPGRADED SURFACE WITH EITHER A VI4/6 ‘CLASSIC’ LOCAL RACK, OR A VI5/7000 LOCAL RACK *
  • LOCAL I/O CAN EITHER USE ORIGINAL PASSIVE BREAKOUT BOX ON CLASSIC LOCAL RACK, OR ABB ON VI5/7000 LOCAL RACK
  • ABILITY TO BENEFIT FROM FUTURE SOFTWARE UPDATES ON THE V6.X SOFTWARE PLATFORM (NEW FEATURES MAY BE RESTRICTED COMPARED WITH VI000-SERIES DUE TO THE LIMITATIONS OF THE SURFACE AND DSP IN THE LOCAL RACK)

*FEATURES FROM VI5/7000 THAT ARE NOT AVAILABLE WITH THE VI4/600 CONTROL MODULE UPGRADE ARE:

  • 128 INPUTS NOT AVAILABLE (CHANNEL COUNT REMAINS AT 96CH ASSUMING MINIMUM OF 3 DSP CARDS IN CLASSIC RACK, OR 5 OR 8 DSP CARDS IN A VI5/7000 LOCAL RACK).
  • 96KHZ SAMPLE RATE OPERATION NOT AVAILABLE
  • BSS DPR 901II DYNAMIC EQ NOT AVAILABLE
  • VMIX AUTOMATIC MICROPHONE MIXING NOT AVAILABLE

THESE FEATURES ARE ONLY AVAILABLE BY IMPLEMENTING A FULL VI5000/7000 UPGRADE OR BY PURCHASING A COMPLETE NEW VI5000/7000 SYSTEM (SEE THE VI5000 OR 7000 WEB PAGES FOR PRODUCT DETAILS AND INFORMATION ABOUT THE UPGRADE POSSIBILITIES).

NEW WITH FULL FACTORY WARRANTY, FOB CA. - SKU# 5100265-00

WWW.SOUNDBROKER.COM LINKING BUYERS AND SELLERS TOGETHER SINCE 1997 FOR NEW AND USED PROFESSIONAL AUDIO, LIGHTING, STAGING, PROJECTORS, AND VIDEO EQUIPMENT.

Additional Details
ID#: 111691
Listing Type:
Standard
Model: LOCAL RACK UPGRADE KIT
Manufacturer: SOUNDCRAFT
Condition: MFG A STOCK
Shipping Info: 0.00 lbs., 0
Seller's Location: NV, USA
Updated: December 21, 2023
M.S.R.P.: $0.00
Offered at: Contact Us
