SOUNDTRACS DPC 2 (2000) (S#: TBD) SUPERB (8-9)
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on November 21, 2006 - Viewed 544 times

SOUNDTRACS DPC 2 (2000) SUPERB (8-9)

PRICE JUST LOWERED BY 33%. WE MUST SELL

MADI: SN'S 154155/9906, 154112/9902, 154153/9906 CONSOLE SN:150103/9906

SOFTWARE AND COMPUTER OPERATING SYSTEM VERS 2.06

TWO SOUNDTRACS DPC-II DIGITAL AUDIO CONSOLES FOR THE PRICE OF ONE. THAT'S RIGHT. WE HAVE TWO POWERFUL DPC 2 CONSOLES THAT WE'RE SELLING AS A PACKAGE. USE THE SECOND CONSOLE AS PARTS FOR THE FIRST ONE, OR SET UP BOTH. THE CHOICE IS YOURS. ONCE AGAIN, THE LOW PRICE IS THE PRICE FOR BOTH CONSOLES.

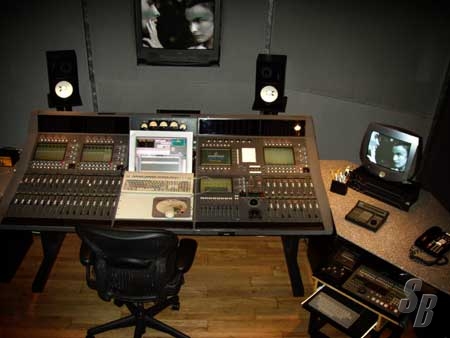

THESE CONSOLES WERE PURCHASED NEW IN 2000 AND USED IN A PROFESSIONAL STUDIO ENVIRONMENT.

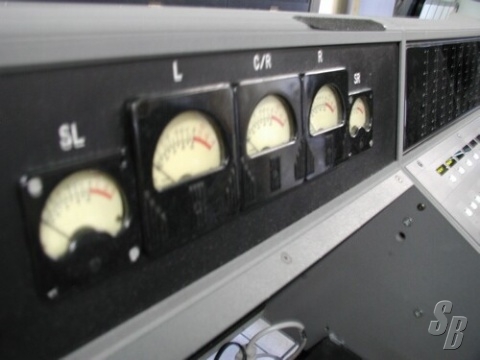

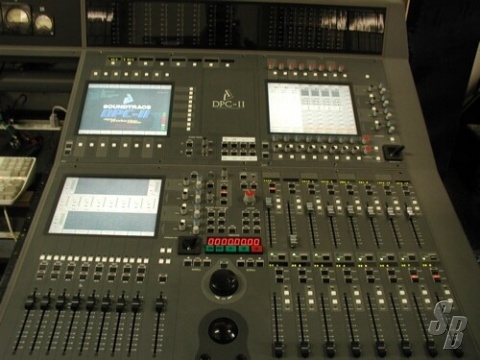

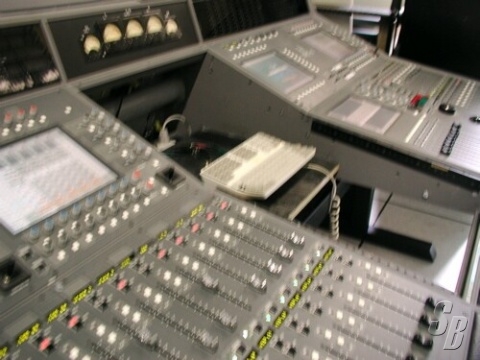

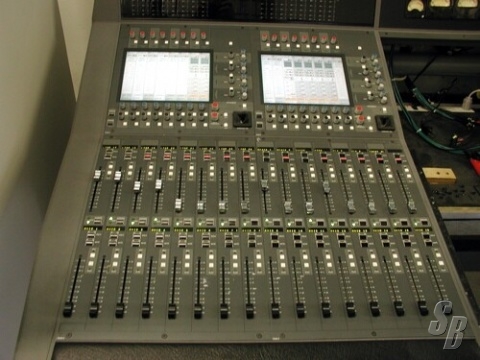

BOTH CONSOLES FEATURE TOUCH-SCREEN CONTROL SURFACES WITH MOTORIZED FADERS. ADDITIONALLY, BOTH CONSOLES HAVE BEEN RETROFITTED WITH ANALOG VU METERS FOR 5.1 SURROUND METERING. THE ARCHITECTURE OF THESE CONSOLES IS THOUGHTFULLY LAID OUT, WITH DSP PHYSICALLY LOCATED WITHIN THE CONTROL SURFACE AND AUDIO CONNECTIONS MADE VIA REMOTELY LOCATED AND REMOTE CONTROLLED MADI RACKS, EACH CONTAINING A VERY NICE ASSORTMENT OF DIGITAL AES/EBU AND ANALOG INPUTS AND OUTPUTS.

CONSOLE #1 IS CURRENTLY USED DAILY. IT IS COMPLETE AND IN VERY GOOD WORKING CONDITION.
CONFIGURATION OF CONSOLE #1 IS AS FOLLOWS:
160 LOGICAL INPUT CHANNELS
40 LOGICAL OUTPUTS
56 MICROPHONE INPUTS
56 ANALOG LINE INPUTS
64 ANALOG LINE OUTPUTS
56 ANALOG INSERTS
72 AES/EBU INPUTS
72 AES/EBU OUTPUTS
56 MOTORIZED FADERS

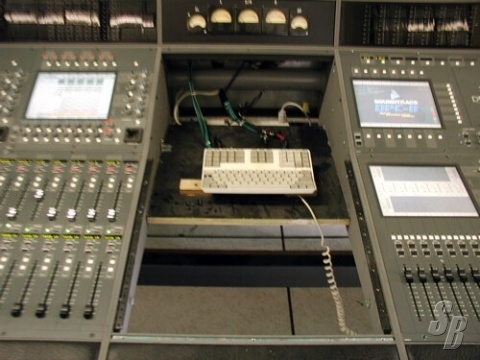

CUSTOM CENTER SECTION FITTED TO ALLOW MOUNTING OF DAW OR REMOTES
3 REMOTELY LOCATED MADI RACKS
AUTOMATION

CONSOLE #2 IS ALSO IN GOOD WORKING CONDITION, ALTHOUGH A FEW COMPONENTS HAVE BEEN USED AS
SPARES FOR CONSOLE #1. THIS CONSOLE COULD BE MADE COMPLETE AGAIN WITH NOMINAL INVESTMENT OR IT COULD BE USED AS AN EXCELLENT, COMPREHENSIVE SPARES KIT TO KEEP CONSOLE #1 RUNNING WITH NO DOWNTIME.

CONFIGURATION OF CONSOLE #2 IS AS FOLLOWS:
160 LOGICAL INPUT CHANNELS
40 LOGICAL OUTPUTS
64 MICROPHONE INPUTS
64 ANALOG LINE INPUTS
56 ANALOG LINE OUTPUTS
64 ANALOG INSERTS
80 AES/EBU INPUTS
72 AES/EBU OUTPUTS
56 MOTORIZED FADERS
3 REMOTELY LOCATED MADI RACKS
AUTOMATION

DIMENSIONS:

CONSOLE #1 CONTROL SURFACE IS APPROXIMATELY 85埜 X 44妊

CONSOLE #2 CONTROL SURFACE IS APPROXIMATELY 66埜 X 44妊

MADI RACKS ARE STANDARD 19 RACK MOUNT CHASSIS, 8 RU IN HEIGHT.


NO ADDITIONAL EXTRAS BEYOND THE ABOVE DESCRIPTION

NO SPECIAL MODIFICATIONS

CONSOLES HAVE ONLY BEEN IN OUR PROFESSIONAL STUDIO ENVIRONMENT SINCE 2000. ORIGINAL PRICE FOR EACH CONSOLE $200,000. NOW DISCOUNTED FOR QUICK SALE.

NO KNOWN PROBLEMS

THIS UNIT WAS NEVER TOURED

HERE ARE THE DIMENSIONS IN INCHES FOR THE DPC II

DESK #1 88.5L X 42.5D X 18.5H
DESK #2 65.5L X 42.5D X 18.5H
MADI RACKS 19W X 14D X 14H (6 OF THESE) STAND 77L X 31.5D X 25.5H
