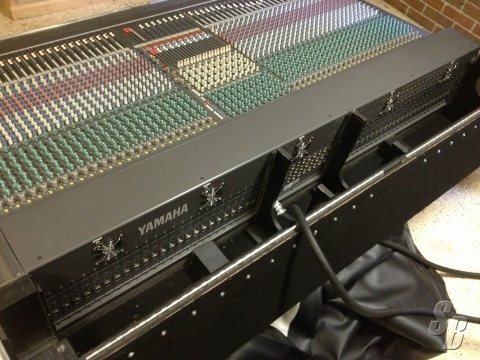

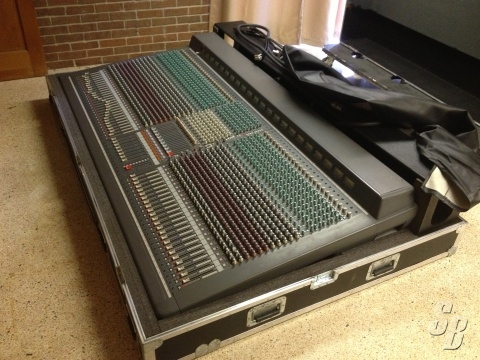

YAMAHA PM4000 48 CHANNEL CONSOLE
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on October 08, 2013 - Viewed 164 times

YAMAHA PM4000 (YOM: ?) (S#: TBD) LIKE NEW (9-10)

FEATURES: FOUR STEREO INPUT MODULES INCLUDED ALONG WITH FORTY-EIGHT STANDARD INPUTS

ELECTRONICALLY BALANCED - XLR INPUTS AND OUTPUTS.

ALL INSERT IN/OUT POINTS OPERATE AT +4DBU LEVEL - THIS IS FOR OPTIMUM COMPATIBILITY WITH PRO EQUIPMENT.

CONTINUOUSLY VARIABLE 50 DB GAIN TRIM - IN ADDITION, SWITCHABLE 30 DB PAD LET INPUTS HANDLE ANY SIGNAL.

6-STEP LED METERS ON EACH INPUT - THE LED METERS ON EACH INPUT ASSIST CORRECT SETUP FOR OPTIMUM GAIN STRUCTURE.

8 MONO AUXILIARY MIXING BUSSES - IN ADDITION, TWO PAIR OF STEREO AUX MIXING BUSSES THAT CAN BE USED AS DUAL MONO, FOR TOTAL OF 12 AUXES.

8 MASTER MUTE GROUPS

8 VCA GROUPS - THE GROUPS HAVE MUTE CAPABILITY AND FULL-LENGTH GROUP FADERS.

8 PRIMARY MIX BUSSES ("GROUPS") - THE MIX BUSSES PLUS A STEREO BUS WHICH CAN BE "DIRECT ASSIGNED" FROM INPUTS OR FROM GROUPS.

11 X 8 MIX MATRIX

EXTENSIVE INPUT-PRIORITY - IT FEATURES "IN-PLACE" CUE SYSTEM, PLUS SOLO MODE THAT MUTES OTHER CHANNELS.

BUILT-IN FIXED/VARIABLE FREQUENCY TEST OSCILLATOR AND PINK NOISE SOURCE - THE OSCILLATOR AND PINK NOISE SOURCE SPEED SETUP AND OVERALL SYSTEM TROUBLESHOOTING.

LARGE, DEDICATED STEREO VU METERS - ALSO, SWITCHABLE VU METERS FOR OTHER BUSSES (SWITCHING CONVENIENTLY LOCATED NEXT TO OPERATOR).

HUNDREDS OF LEDS - THE LEDS INDICATE STATUS, CLIP LEVELS, AND ILLUMINATE SWITCHES AND METERS-NO LAMPS TO MAINTAIN.

EXTENSIVE INTERNAL SWITCHES - IN ADDITION, JUMPERS TO ALTER "DEFAULT" CONSOLE FUNCTIONS.

LOWER NOISE THAN EVER - IT ALSO FEATURES SUPERB AUDIOPHILE QUALITY.

MULTIPLE EXHAUST FANS ON REAR PANEL - THESE FANS KEEP CIRCUITRY COOL FOR MAXIMUM LONGEVITY.

DIMMER-CONTROLLED "LITTLITES"

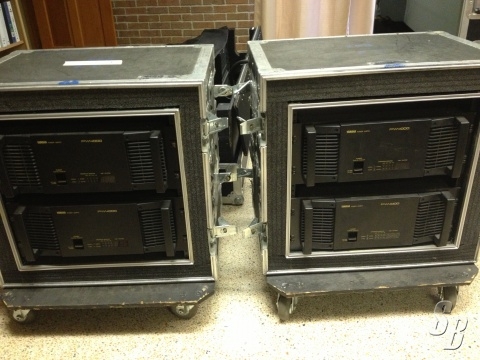

PW4000 POWER SUPPLY - THE POWER SUPPLY INCLUDES FULL-TIME AC LINE VOLTAGE DIGITAL READOUT AND DC OUTPUT MONITOR LEDS.

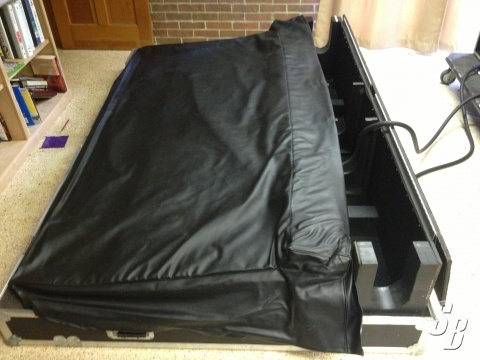

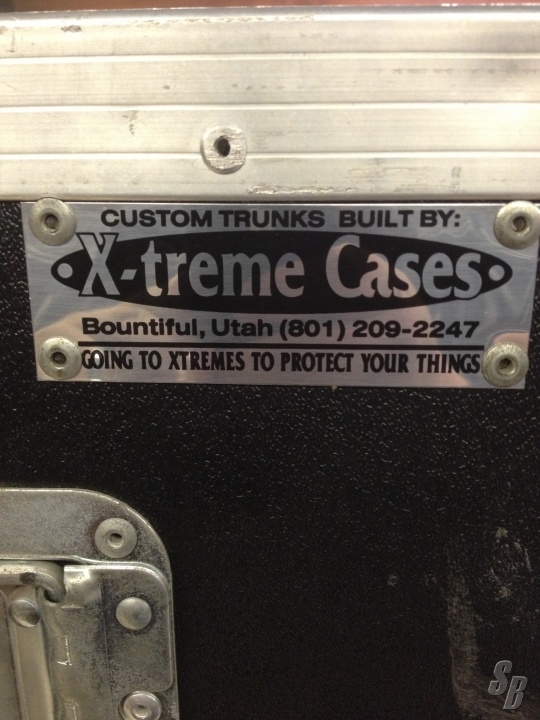

EXTRAS: COMES WITH CUSTOM MADE ATA ROAD CASES.
INCLUDES THE POWER SUPPLIES ALSO IN CUSTON ATA ROAD CASES.
LAMPS INCLUDED.

MODIFICATIONS: N/A

HISTORY: THESE WERE USED FOR LARGE-FORMAT CONFERENCES. 4 OF THEM TO BE EXACT.

COMMENTS: N/A

THIS UNIT WAS NEVER TOURED
