ML3000-32 TOUR PACK WITH CASES
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on March 24, 2012 - Viewed 247 times

ALLEN & HEATH ML3000-32 (YOM: 2004) (S#: 001052) VERY GOOD (7-8)

FEATURES: ALLEN AND HEATH HAVE INCLUDED THEIR UNIQUE LCRPLUS PANNING SYSTEM,
BRINGING SOPHISTICATED SIGNAL IMAGING WITHIN REACH FOR SMALLER SHOWS.
ALL THIS POWER IS HARNESSED IN A REMARKABLY COMPACT CONSOLE WHICH IS A
REAL PLEASURE TO DRIVE THANKS TO ITS SIMPLE, UNCLUTTERED CONTROL LAYOUT.

DUAL FUNCTIONALITY
GRP/AUX MODE SWITCHES REVERSE THE GROUP FADER AND AUX ROTARY MASTER
SECTIONS TO ALLOW YOU TO CHOOSE ANY COMBINATION OF UP TO 8 AUX SENDS AND
UP TO 4 AUDIO SUBGROUPS ON FADER MASTERS WITH INSERTS AND FULL METERING.

A CENTRE MODE SWITCH CONVERTS THE 100MM C FADER TO AN ENGINEER'S LISTEN
WEDGE CONTROL WITH INSERT

4 AUDIO GROUPS
ASSIGNED FROM PAIRED ROUTING BUTTONS AND PAN FROM CHANNEL. GROUPS ARE
ROUTED TO LCRPLUS VIA A SINGLE BUTTON

8 VCA GROUPS
USING A SIMILAR SOFT-CONTROLLED SYSTEM AND THE SAME CPU AS THE ML4000.
MASTER VIEW BUTTON ALLOWS CHECKING OF SELECTED GROUP ASSIGNMENTS. HIGH
QUALITY VCA'S ARE FITTED TO MONO AND STEREO INPUT CHANNELS

8 AUXILIARY SENDS
5-8 WITH FADERS ON MASTERS. 7-8 CAN BE CONFIGURED AS STEREO PRE/POST
FADE PAIR FOR I.E.M. AUXES 1- 4 HAVE ROTARY MASTERS IN GROUP MODE, AND
FADER MASTERS WITH INSERTS IN AUX MODE. AUXES HAVE BALANCED XLR OUTPUTS

LCRPLUS PANNING
AVAILABLE FROM CHANNELS AND GROUPS. USES BLEND AND PAN CONTROLS TO ALLOW
ANY SIGNAL POSITIONING ACROSS THE C AND LR BUSSES

8X4 MATRIX
FED FROM THE GROUPS AND THE LR AND C BUSSES. WITH INSERTS AND EXTERNAL
INPUT. MATRIX HAS VU METER ACCESS

8 MUTE GROUPS
INPUT CHANNELS HAVE SOFT MUTES AND ARE PART OF THE MUTE GROUPING AND
MIDI CONTROL. SOFT ASSIGNMENT IS THE SAME AS ML4000

4 BAND EQ
‘RESPONSIVE’ FEEL WITH SEPARATE CONTROLS FOR SWEEP AND CUT/BOOST ON MID
BANDS

2 DUAL STEREO CHANNELS
ADDITIONAL TO THE CHANNEL COUNT, MIXABLE A&B [TRS] INPUTS WITH GAIN, 4
BAND EQ AND MONO SUMMING

ML MIC PRE WITH SWEPT HPF
SAME EXTENDED FREQUENCY RESPONSE THROUGH SIGNAL PATH AS THE ML5000.
SWEPT OFF - 400HZ HPF. NEW POT LAW FOR SMOOTHER GAIN RANGE WITH SWEPT HPF

BALANCED XLR PLUS INSERTS
GOLD PLATED XLR CONNECTORS. INSERTS [TRS] ON CHANNELS, FADER MASTERS,
AUXES 5-8 AND LCR

PAFL SYSTEM
PFL OVERRIDES AFL. LED STATUS INDICATORS ON CHANNELS AND GLOBAL STATUS
INDICATION ON METERBRIDGE

128 SNAPSHOT MEMORIES
SHOW AUTOMATION OF VCA ASSIGNMENT / MUTE ‘SCENES’ VIA MIDI/RS232 AND
‘ARCHIVER’ SOFTWARE

TALKBACK
TALK TO ANY OF THE FADER MASTER GROUP/AUX AND LRC OUTPUTS VIA TB ENABLE
SWITCHES WITH LED IN EACH SECTION. +48V AND TRIM CONTROL FOR MIC

ENGINEER’S TOOLBOX
PHONES, WEDGE AND LOCAL MONITOR CONTROLS, - 20DB ‘DIM’ WHEN TB ACTIVE.
PINK NOISE AND OSCILLATOR, GROUND COMPENSATED DIRECT OUTS ON CHANNELS,
2TRK, LR & C MONITOR SELECTION WITH MONO CHECK. VU METERING HAS BUILT IN
PEAK LED. TB/OSC OUTPUT [TRS]

LAMPS
3 XLR LAMP SOCKETS ARE PROVIDED

CONFIGURATION OPTIONS
INTERNAL JUMPERS TO CONFIGURE AUX1 TO DIRECT OUT, PRE/POST DIRECT OUT,
PRE/POST EQ/PRE-INSERT FOR THE PRE-FADER SOURCE.

ISOLATE PRE-FADE FROM CHANNEL MUTE. PRE INSERT / POST FADE FOR 2 TRACK
RECORDING SOURCE

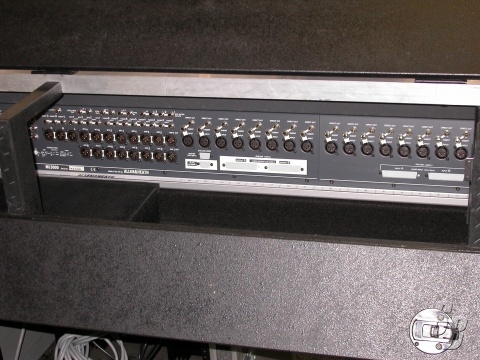

INPUTS
MIC (PAD OUT) XLR BALANCED, PIN2+ 2KOHM VARIABLE -60 TO -10DBU MAX +11DBU MIC/LINE (PAD IN) >10KOHM VARIABLE -40 TO +10DBU MAX +31DBU STEREO ST 1-4 TRS JACK BALANCED, TIP+ >20KOHM VARIABLE -18 TO +6DBU MAX
+27DBU
2-TRACK TRS JACK BALANCED, TIP+ >20KOHM +4DBU MAX +25DBU
MATRIX EXT IN TRS JACK BALANCED, TIP+ >20KOHM 0BU MAX +21DBU INSERTS INPUT TRS JACK TIP SEND, RING RETURN 0DBU MAX +21DBU OUTPUT TRS JACK TIP SEND, RING RETURN -2DBU MAX +21DBU MATRIX TRS JACK TIP SEND, RING RETURN -2DBU MAX +21DBU OUTPUTS L,R,C XLR BALANCED, PIN2+ <75OHM 0DBU MAX +23DBU GRP 1-4 XLR BALANCED, PIN2+ <75OHM 0DBU MAX +23DBU AUX 1-8 XLR BALANCED, PIN2+ <75OHM 0DBU MAX +23DBU MATRIX 1-4 XLR BALANCED, PIN2+ <75OHM 0DBU MAX +21DBU DIRECT OUT TRS JACK GROUND COMP, TIP+ <50OHM 0DBU MAX +21DBU 2-TRACK TRS JACK GROUND COMP, TIP+ <50OHM -2DBU MAX +21DBU LOCAL MONITOR TRS JACK GROUND COMP, TIP+ <50ohm 0dBu Max +21dBu Headphones TRS jack tip left, ring right for stereo headphones >30OHMS


EXTRAS: THIS IS A ALLEN AND HEATH ML3000 TOUR PACK
SYSTEM COMES WITH:

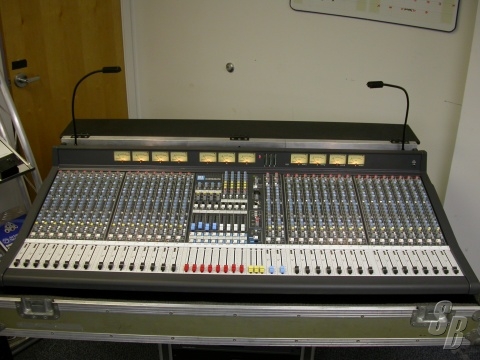

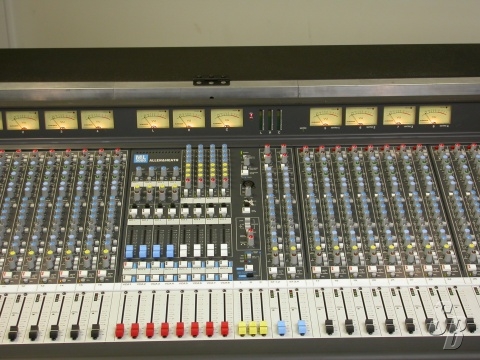

1XML3000 CONSOLE

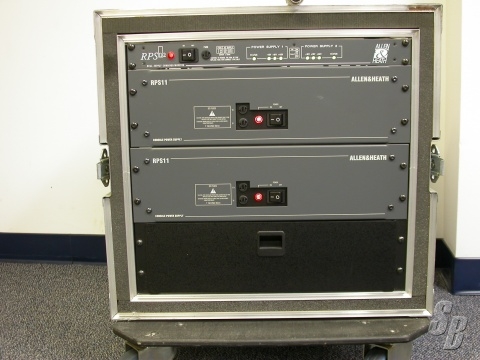

2XRPS2 POWER SUPPLIES
1XRPSD2 REDUDANT POWER SWICHER
1XSPECTRUM CONSOLE ROAD CASE
1XSPECTRUM POWER SHOCK CASE
3XLITTLE LITES
1XML3000 SOFT CONSOLE COVER
ALL ORIGINAL MANUALS

MODIFICATIONS: NO MODIFICATIONS

HISTORY: THIS CONSOLE WAS USED FOR LOCAL THEATER SHOW AND FOR SOME MONITOR MIXES.

COMMENTS: ROAD CASES SHOW SIGNS OF WARE, BUT THE CONSOLE AND POWER SUPPLIES ARE VERY CLEAN AND FUNCTION PERFECTLY.

THIS UNIT WAS NEVER TOURED
