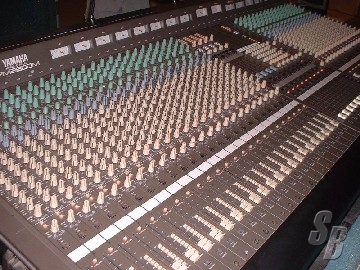

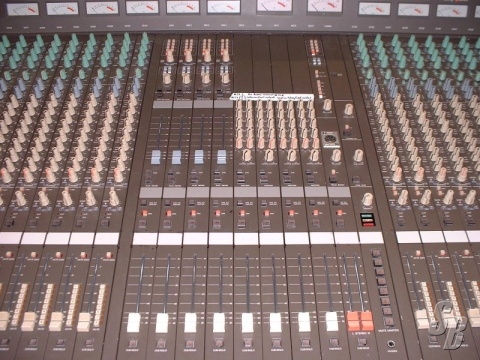

PM2800 40 X 14 MONITOR CONSOLE (40 INPUTS, 12 AUX PLUS STEREO OUTPUTS) INCLUDES
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on August 28, 2008 - Viewed 55 times

EVERY INPUT AND OUTPUT CHECKED FOR FUNCTIONALITY USING A HARDWIRED COUNTRYMAN E6 (TO TEST FOR 48V FUNCTIONALITY), THROUGH A PAIR OF MEYER SOUND UPM-1P SPEAKERS. ALL MUTE GROUPS, SWITCHES AND POTS CHECKED THOROUGHLY.

-PHANTOM POWER WORKS CORRECTLY ON ALL CHANNELS
-ALL GAIN POTS AND SENSITIVITY SWITCHES WORK CORRECTLY
-ALL PAN POTS FUNCTION CORRECTLY
-ALL HIGH PASS IN/OUT SWITCHES AND FREQUENCY POTS WORK CORRECTLY
-ALL EQ IN/OUT SWITCHES WORK, AND ALL POTS (FREQUENCY, BOOST/ATTENUATE) WORK CORRECTLY

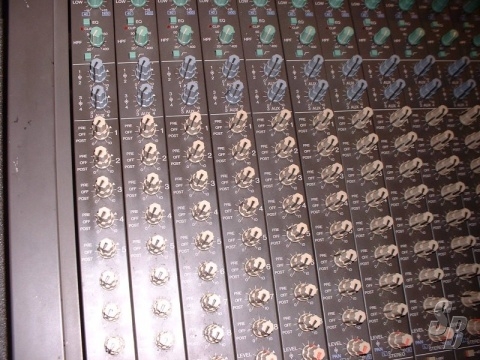

-ALL AUX SEND POTS WORK CORRECTLY AND ARE SET TO POST FADE ALL THE TIME
-ALL MIX SEND PRE/POST SWITCHES AND POTS WORK CORRECTLY
-ALL SUB-INPUTS WORK CORRECTLY
-ALL STEREO RETURNS WORK CORRECTLY
-ALL ASSIGN SWITCHES WORK CORRECTLY ON THE STEREO RETURNS
-ALL VOLUME KNOBS WORK CORRECTLY ON THE STEREO RETURNS
-ALL METERS FUNCTION CORRECTLY
-ALL LITTLITES FUNCTION CORRECTLY
-INTERCOM INPUT TO CONSOLE FUNCTIONS CORRECTLY

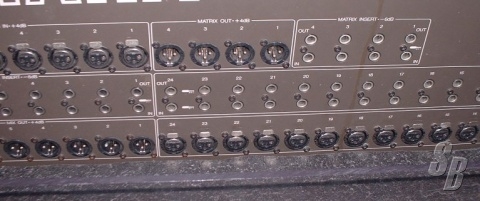

NONE OF THE MATRIX OUTPUTS (4 OF THEM) ARE IN WORKING ORDER. THE FIRST ONE HAS NO AUDIO OUTPUT FROM THE XLR CONNECTION. MATRICES 2-4 APPEAR TO HAVE SOME SORT OF A SHORT OR COLD SOLDER JOINTS IN THEIR CHAIN AS THE AUDIO IS SOMETIMES DISTORTED, AND OFTEN TIMES VERY LOW IN VOLUME. WHEN CHECKING THE INPUTS, IF YOU TAP ON THE METER BRIDGE OF THE CONSOLE YOU CAN HEAR AN AUDIBLE CLICK COMING OUT OF THE MAIN OUTPUTS. IT IS NOT VERY LOUD, HOWEVER IT IS PRESENT. (THE AUX OUTS AND MIX OUTS WERE NOT TESTED FOR THAT PROBLEM.) THE POWER SUPPLY WORKS FINE AND WAS USED TO TEST THE CONSOLE. THERE ARE ALSO 2 WORKING POWER SUPPLY CABLES.
ONE OF THE FEMALE XLR CONNECTORS ON STEREO RETURN 3 IS BROKEN, BUT USABLE. ALSO MANY OF THE FADERS ARE VERY STIFF. THEY ALL WORK PROPERLY, THEY JUST NEED EITHER LUBRICATED OR REPLACED.

ITEMS INCLUDED IN SALE:
PM2800 CONSOLE
ROAD CASE
PM 2800 MANUAL
4 LITTLE LITES
(2) POWER SUPPLIES
(2) POWER SUPPLY CABLES
(2) IEC TO EDISON
