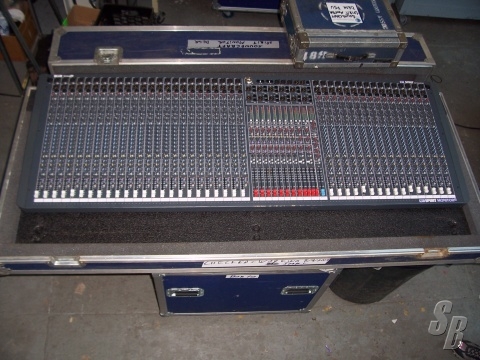

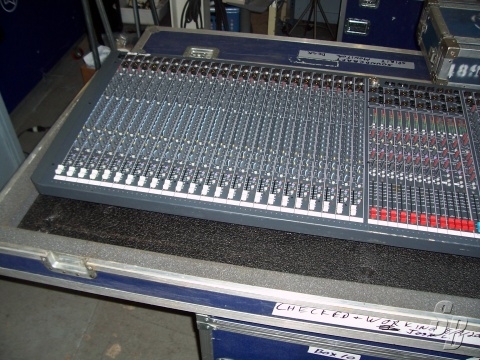

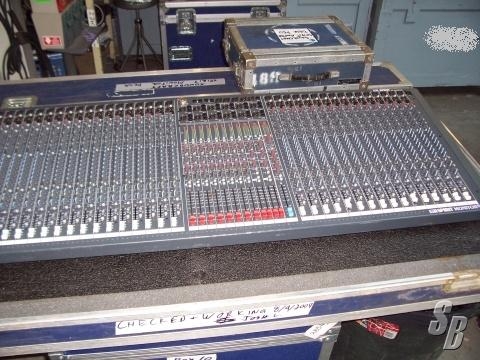

SOUNDCRAFT SPIRIT MONITOR 2
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on February 01, 2010 - Viewed 235 times

SOUNDCRAFT SPIRIT (YOM: ?) (S#: TBD) SUPERB (8-9)

FEATURES: THE MONITOR 2 COMBINES ALL THE NECESSITIES OF A PROFESSIONAL MONITOR DESK WITH ELEGANT DESIGN FEATURE AIMED AT SPEED AND CLARITY IN USE - SUCH AS SPLIT OUTPUTS THAT ALLOW EASY CONNECTIONS TO A FOH MIXER WITHOUT USING SPLITTER LEADS. AND BECAUSE VERSATILITY IS A PRIORITY IN ALL OF THE SPIRIT RANGE DESIGNS, THE MONITOR 2 IS FLEXIBLE ENOUGH TO PERFORM FOH MIXING WHERE NO OTHER MIXER IS AVAILABLE.

40 INPUT CHANNELS, TWELVE SENDS INCLUDING TWO STEREO PAIRS SPECIFICALLY FOR IN-EAR MONITORING. ALL MONITOR SENDS ARE PRE-POST FADER SWITCHABLE AND, IN ADDITION, EACH INPUT HAS A BUILT-IN MIC SPLITTER, NEGATING THE NEED FOR DEDICATED SPLITTER BOXES ON STAGE. 2-
MONITOR 2 HAS 4 BAND EQ SECTION WITH TWO MID-SWEPT FREQUENCIES ON EVERY INPUT, PLUS EQ IN-OUT SWITCHES. OTHER FEATURES INCLUDE A DIM SWITCH, ALLEVIATING FEEDBACK PROBLEMS BY IMMEDIATELY ATTENUATING EACH MONITOR OUTPUT BY 6DB, TWO DEDICATED EFFECTS RETURNS AND TWO HOUSE MIC HEEDS, ALLOWING PERFORMERS WITH IN-EAR MONITORS TO HEAR THE AUDIENCE AS PART OF THEIR MIX.
APPLICATIONS:
• MONITORING IN TOURING, VENUE AND THEATRE
• MONITOR PLUS FOH IN SMALL VENUES

KEY FEATURES:
• 4-BAND EQ WITH TWO SWEPT MID BANDS
• 12 MONITOR SENDS WITH 1-8 MONO AND 9-12 STEREO
• ULTRAMIC+™ PREAMPS ON ALL MONO INPUTS
• +48V PHANTOM POWER SWITCHABLE ON ALL CHANNELS
• SPLIT OUT CONNECTORS AVOID THE NEED FOR SPECIAL CABLES OR SPLITTER BOXES
• PRE-EQ INSERT POINT ON ALL MONO CHANNELS
• DIM SWITCH CUTS MONITOR OUTPUT LEVEL BY 6DB
• SUB-GROUPING ON CHANNELS 1-10 PROVIDES FOH MIXING CAPABILITY
• RACKMOUNTABLE EXTERNAL POWER SUPPLY
SPECIFICATIONS
• 8 MONO WEDGE AND 2 IN-EAR STEREO MIX CONFIGURATION
• BUILT-IN MIC SPLITTER THAT ALLOWS STAGE MICS TO BE LOOPED THROUGH AND ON TO THE FRONT OF HOUSE, ELIMINATING THE NEED FOR AN EXPENSIVE MIC/LINE SPLITTER STAGE BOX.
• ULTRAMIC PLUS PREAMPS WITH 66DB OF GAIN WHICH ALLOWS MIC OR LINE SIGNALS TO BE ACCOMMODATED WITHOUT WORRY OF OVERLOAD
• 4-BAND, 2 MID-SWEEP EQ (LIVE 8)
• 100HZ/18DB PER OCTAVE HIGH-PASS FILTER
• INPUT CHANNEL MASTER FADERS AND 100MM WEDGE FADERS
• SWEEPABLE HIGH-PASS FILTERS ON ALL MONITOR OUTPUTS
• XLR BALANCED OUTPUT
• SEPARATE INSERT SEND AND RETURN JACKS FOR OUTBOARD GRAPHICS WITH PRE/POST METER AND PRE/POST MONITOR SWITCHING
• SEPARATE LEFT & RIGHT MIC PREAMPS FOR HOUSE MICS AND EFFECTS RETURNS FOR IN-EAR MIXES
• ENGINEER'S WEDGE STEREO OUTPUT WITH FADER
• TALKBACK FACILITIES IN CENTER MIX SECTION
• INDIVIDUAL CHANNEL PCB CONSTRUCTION
•


EXTRAS: POWER SUPPLY AND ROAD CASE

MODIFICATIONS: NO

HISTORY: USED ON ONLY ONE BROADWAY SHOW

COMMENTS: EXCELLENT CONDITION WITH A FEW SCRATCHES AND MARKS. ALL KNOBS THERE AND WORKING. 100% WORKING CONDITION.

THIS UNIT WAS NEVER TOURED
