YAMAHA M7CL-48
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on April 07, 2012 - Viewed 230 times

YAMAHA M7CL-48 (YOM: 2009) (S#: TBD) SUPERB (8-9)

FEATURES: 48 HIGH-PERFORMANCE HEAD AMPS ONBOARD ALLOW ANALOG MICROPHONE AND LINE SIGNALS TO BE DIRECTLY HOOKED UP TO THE CONSOLE. IDEAL WHERE ANALOG INFRASTRUCTURE IS ALREADY INSTALLED.
48 MONO MICROPHONE/LINE INPUTS, 4 STEREO INPUTS, AND 3 MINI-YGDAI CARD SLOTS (A TOTAL OF 56 MIXING CHANNELS).
16 MIX BUSES, LCR BUS, 8 MATRIX CHANNELS, AND 8 DCAS ASSIGNABLE TO 16 OMNI OUTPUTS.
VIRTUAL EFFECT AND EQ RACK: UP TO 4 SIMULTANEOUS MULTI-EFFECT PROCESSORS; UP TO 8 SIMULTANEOUS 31-BAND GRAPHIC EQS.
CENTRALOGIC INTERFACE: CENTRAL, LOGICAL, AND INTUITIVE.
DUAL POWER MODES: USE THE BUILT IN POWER SUPPLY, OR ADD AN EXTERNAL PW800W POWER SUPPLY UNIT FOR FAILSAFE DUAL-SUPPLY OPERATION.
MBM7CL
PEAK METER BRIDGE FOR M7CL
MY8-ADDA96
AD/DA CARD
96KHZ COMPATIBLE 8-IN / 8-OUT ANALOG AUDIO INTERFACE
MAX INPUT / OUTPUT LEVEL: +24DBU
8X EURO BLOCK CONNECTORS (BALANCED)
WITH XLR ENDS

CENTRALOGIC™ TOTAL ACCESS FOR ABSOLUTE CONTROL
YAMAHA'S TOUCH-PANEL BASED CENTRALOGIC INTERFACE SIMPLIFIES DIGITAL OPERATION TO THE POINT WHERE IT IS ACTUALLY AS INTUITIVE AS ANALOG... IF NOT EASIER. ALL MIX CONTROLS OTHER THAN THE INDIVIDUAL MOTOR FADERS PROVIDED FOR EACH CHANNEL CAN BE ACCESSED VIA JUST TWO DISPLAYS: OVERVIEW OR SELECTED CHANNEL.
VIRTUAL RACK
VIRTUAL EFFECT AND GEQ RACK
JUST TOUCH THE RACK BUTTON ON THE M7CL DISPLAY, AND THE VIRTUAL EFFECT AND EQ RACK POPS RIGHT UP FOR INSTANT, EASY ACCESS.
VERSATILE CHANNEL MODULE FUNCTIONS
HA GAIN
ADJUSTS GAIN OF THE CONSOLE'S CLASS-LEADING INPUT-CHANNEL HEAD AMPLIFIERS OVER A 72-DB RANGE.
DYNAMICS 1 AND DYNAMICS 2
DYNAMICS 1 ADJUSTS GATE THRESHOLD LEVEL FOR INPUT CHANNELS, OR COMPRESSOR THRESHOLD LEVEL FOR MIX, MATRIX, OR STEREO/MONO CHANNELS. DYNAMICS 2 ADJUSTS COMPRESSOR THRESHOLD LEVEL FOR INPUT CHANNELS. IN EITHER CASE THE ACTUAL PARAMETER CONTROLLED DEPENDS ON THE DYNAMICS PROCESSOR SELECTED FROM THE WELL-STOCKED DYNAMICS LIBRARY PROVIDED - GATES, COMPRESSORS, EXPANDERS, AND EVEN DE-ESSERS FOR ADVANCED VOCAL PROCESSING. ALTHOUGH INITIALLY SET UP FOR GATE + COMPRESSOR PROCESSING, YOU CAN ALSO USE DUAL COMPRESSORS.
EQ
THIS VERY VERSATILE 4-BAND PARAMETRIC EQ SECTION AFFORDS EXTRAORDINARY EQUALIZATION CONTROL AND QUALITY FOR ALL INPUTS AND BUSES.
MIX / MATRIX
SEND CONTROLS FOR THE 16 MIX BUSES AND 8 MATRIXES THAT CAN BE USED AS AUXILIARY, MONITOR, EFFECT SEND, OR GROUP CONTROLS DEPENDING ON WHETHER THE AUX SEND (VARI) PRE-ATTENUATOR OR PRE/POST-FADER MODE OR THE GROUP (FIXED) MODE IS SELECTED.
OUTSTANDING EFFECTS AND EFFECT CONTROL
HIGH RESOLUTION EFFECTS
YAMAHA DIGITAL EFFECTS ARE HIGHLY REGARDED IN THE PROFESSIONAL SOUND FIELD FOR A VERY GOOD REASON: THEY ARE SIMPLY THE BEST.
STANDARD OR FLEX15GEQ
THE M7CL'S STANDARD GRAPHIC EQ MODULES OFFER A FULL 31 BANDS FOR PRECISE CONTROL. IF YOUR APPLICATION REQUIRES MORE EQ CAPABILITY THAN THE STANDARD EQ MODULES PROVIDE, THE M7CL OFFERS FLEX15GEQ MODULES THAT FUNCTION AS TWO 31-BAND UNITS WITH 15-BANDS AVAILABLE AT A TIME. YOU CAN USE UP TO 16 CHANNELS OF FLEX15GEQ!
DIRECT EQ CONTROL
ANY OF THE 31 BANDS ON THE GRAPHIC EQUALIZER MODULES CAN BE DIRECTLY CONTROLLED VIA THE CENTRALOGIC FADERS.
EFFICIENT INTERFACE AND CONTROL FUNCTIONS
CENTRALOGIC™ NAVIGATION & PHYSICAL CONTROLS
THE 8 CENTRALOGIC FADERS ARE OF THE SAME TYPE AS THE PRIMARY CHANNEL FADERS.
USER DEFINED KEYS
THE 12 USER DEFINED KEYS CAN BE ASSIGNED TO PERFORM A RANGE OF HANDY FUNCTIONS.
DCA AND MUTE GROUPS
THE LEVELS OF CHANNELS ASSIGNED TO A DCA GROUP ARE CONTROLLED FROM ONE OF THE CONSOLE'S DCA FADERS IN THE CENTRALOGIC CONTROL AREA.
MEMORY & RECALL
STORE AND RECALL UP TO 300 SCENES

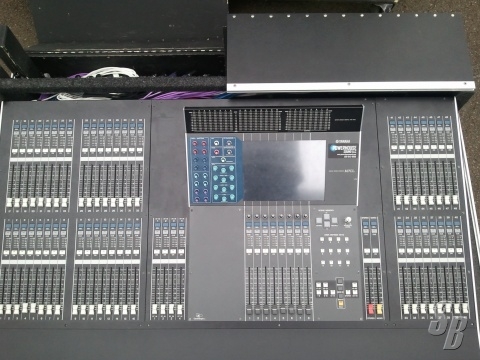

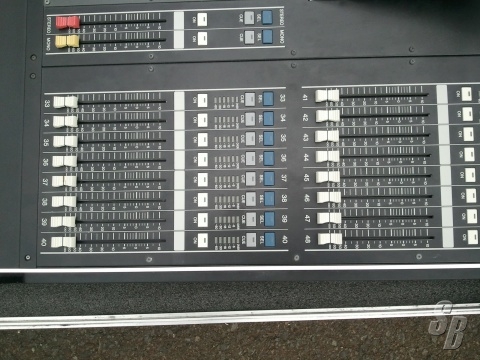

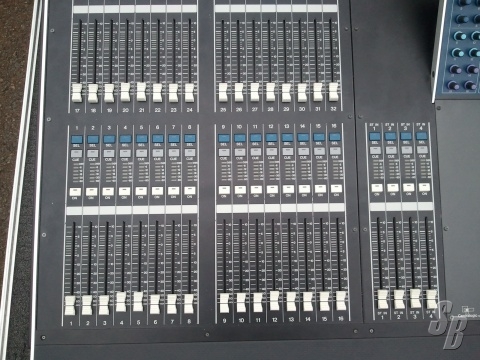

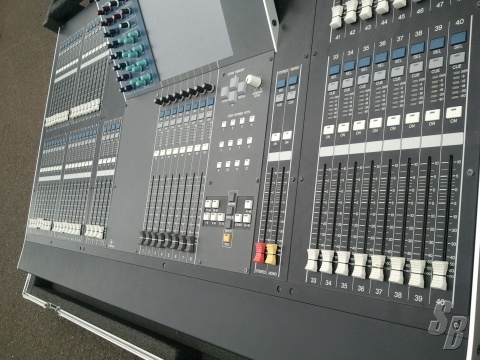

COMES AS SHOWN IN PITURES: DOES NOT INCLUED THE XLR MULTI PIN WHIRLWIND DOGHOUSE AS SHOWN....

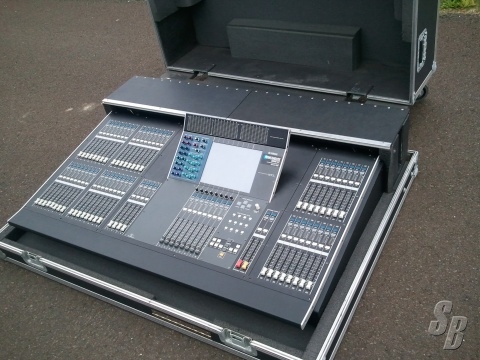

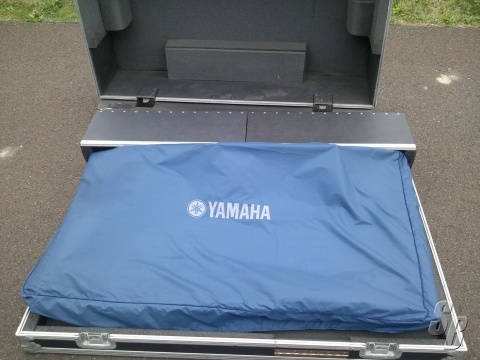

EXTRAS: EXTRAS ARE PHILLY PADDED ROAD CASE WITH DOG HOUSE

MBM7CL
PEAK METER BRIDGE FOR M7CL
MY8-ADDA96
AD/DA CARD
• 96KHZ COMPATIBLE 8-IN / 8-OUT ANALOG AUDIO INTERFACE
• MAX INPUT / OUTPUT LEVEL: +24DBU
• 8X EURO BLOCK CONNECTORS (BALANCED)
WITH XLR ENDS


MODIFICATIONS: NO MODIFICATIONS

HISTORY: THE CONSOLE WAS USED ON CORPORATE SHOWS AND LOCAL THEATER SHOWS. THIS CONSOLE WAS NEVER TOURED AND ONLY WAS USED AND SET UP BY OWNER.

COMMENTS: NO PROBLEMS AT ALL WITH THIS CONSOLE, JUST DO NOT NEED A LARGE CONSOLE AT THIS TIME.

THIS UNIT WAS NEVER TOURED
