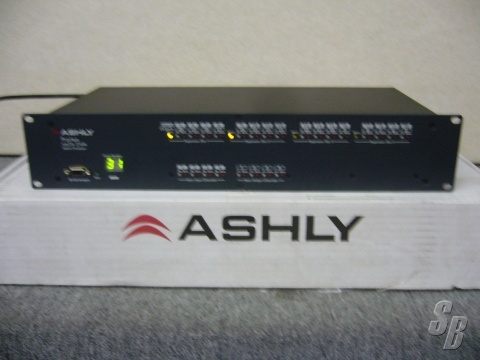

ASHLY NE24.24M (YOM: 2010) (S#: TBD) LIKE NEW IN ORIGINAL PACKAGING (10)
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on July 24, 2012 - Viewed 32 times

ASHLY NE24.24M (YOM: 2010) (S#: TBD) LIKE NEW IN ORIGINAL PACKAGING (10)

FEATURES: THE ASHLY NE24.24M 12X4 LOGIC MATRIX PROCESSOR USES MODULAR EXPANSION CARDS TO PROVIDE UP TO TWENTY CHANNELS OF AUDIO MATRIXING AND PROCESSING. THE NE24.24M 12X4 LOGIC* OFFERS A TWELVE-INPUT/FOUR-OUTPUT CONFIGURATION WITH A LOGIC CARD. EACH INPUT AND OUTPUT EXPANSION CARD HAS AN INDIVIDUAL DSP PROCESSOR ALLOWING YOU TO EXPAND THE BASE UNIT'S TOTAL INPUTS OR OUTPUTS FOUR CHANNELS AT A TIME. THESE CARDS: NE24.24M INPUT, NE24.24M OUTPUT AND NE24.24M LOGIC ARE EASILY INSTALLED IN THE FIELD WITHOUT THE NEED TO REPROGRAM THE DEVICE.

MATRIXING ALLOWS YOU TO ROUTE ANY INPUT TO ANY OUTPUT AND CONTROL INDIVIDUAL LEVELS ONCE THEY HAVE BEEN ASSIGNED. FIXED PATH ARCHITECTURE AND EXTENSIVE PROCESSING POWER PER CHANNEL WILL REDUCE THE AMOUNT OF TIME IT TAKES TO SET UP YOUR SYSTEM. ALL PROGRAMMING IS ACCOMPLISHED USING ASHLY'S PROTEA NE SOFTWARE ON A PC PLATFORM. NO FRONT PANEL CONTROLS AND MULTI-LEVEL SOFTWARE SECURITY ASSURES YOU A TAMPERPROOF AUDIO SYSTEM. INPUT CHANNEL PROCESSING BLOCKS INCLUDE MIC PREAMP WITH PHANTOM POWER, GAIN, DELAY, FIFTEEN EQ FILTERS, GATE, AUTOLEVELER AND DUCKER. INPUTS MAY BE CONFIGURED AS EITHER MIC OR LINE LEVEL. OUTPUT CHANNEL PROCESSING BLOCKS CONSIST OF A CROSS POINT MIXER, HPF/LPF, DELAY, FIFTEEN EQ FILTERS, GAIN AND LIMITER. THE CROSS POINT MIXER IN THE OUTPUT SECTION ALLOWS YOU TO ROUTE ANY INPUT TO ANY OUTPUT AT ANY LEVEL AND MUTE ANY INPUT AT ANY OUTPUT WITHOUT AFFECTING THE TRUE INPUT CONFIGURATION. THE HPF/LPF BLOCK OFFERS BESSEL, BUTTERWORTH AND LINKWITZ-RILEY FILTERS WITH 12, 18, 24 AND 48DB/OCTAVE SLOPES.

EXTRAS: UNIT COMES WITH ORIGINAL BOX WITH MANUAL AND POWER CORD.

MODIFICATIONS: NO MODIFICATIONS.

HISTORY: NEVER USED.

COMMENTS: UNIT IS THE BASE 4X4 CONFIG.

THIS UNIT WAS NEVER TOURED
