For Sale: VMB TL-056B TOWERLIFT SERIES 441 LBS/ 21.3' MAX
[PRICED PER UNIT - 0 AVAILABLE AT TIME OF LISTING]
Listing last update on January 19, 2022 - Viewed 364 times

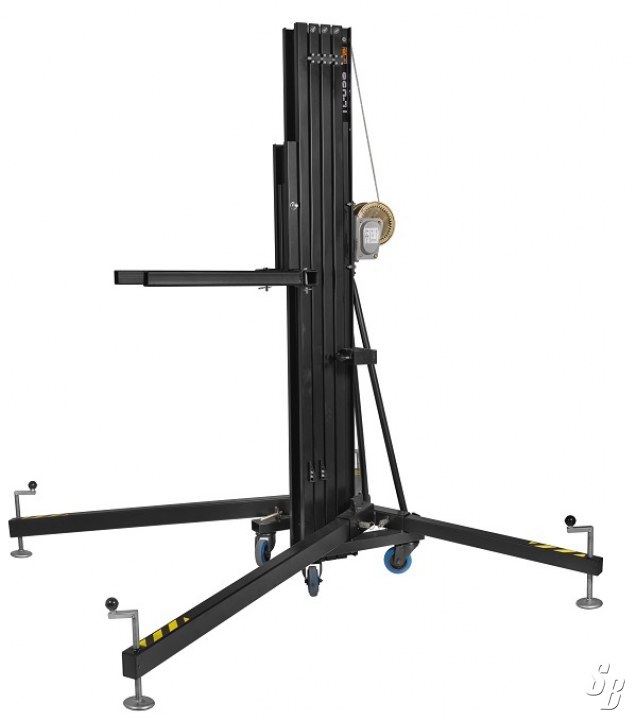

TL-A LINE ARRAY SERIES VMB TL-056B  441 LBS/ 21.3' MAX - PROFESSIONAL TOWER LIFT, NEW WITH FULL FACTORY WARRANTY.

THIS FRONT LOAD TOWERLIFT CAN LIFT 200 KG FROM THE GROUND. IT IS BUILT WITH THREE ALUMINUM PROFILES AND A LIFTING CARRIAGE THAT ARE GUIDED ALONG BY NYLON ROLLERS. THE SECTIONS ARE OPERATED WITH A STEEL CABLE THROUGH A MANUAL WINCH WITH A DISC
BRAKE. EACH ONE OF THE PROFILES IS SECURED WITH AN AUTOMATIC INERTIA LOCK ILS THAT WILL LOCK THE PROFILE IN A FIXED AND STABLE POSITION IN CASE THE CABLE BREAKS. THE ALUMINUM SECTIONS ARE FIXED ON A SOLID STEEL BASE PROVIDED WITH SWIVEL WHEELS FOR EASE OF TRANSPORT. THE BASE ALSO HAS A SPECIAL COMPARTMENT FOR THE FOUR STABILIZING LEGS THAT ARE PROVIDED WITH ADJUSTABLE MOUNTING PLATES AND A SPIRIT LEVEL THAT HELPS TO MAINTAIN THE VERTICAL POSITION OF THE TOWERLIFT. THE LOAD IS LIFTED ON TWO STEEL ARMS THAT ARE FIXED ON THE LIFTING CARRIAGE.

OVERVIEW:

• MAXIMUM HEIGHT 6.5 M (21.3')
• MAXIMUM LOAD 200 KG (441 LB)
• SECURITY ILS
• WORK SURFACE 2 X 2 M (6.6 X 6.6')
• FOLDED HEIGHT 1.98 M (6.5')
• WEIGHT 94.5 KG (208 LB)
• WINCH 900 KG
• LOAD SUPPORT FORKS

*CONTACT US OR INQUIRE DIRECT*

VMB TL-056B

PART# TL-056B
