HME PRO 850 WIRELESS INTERCOM SYSTEM
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on July 15, 2009 - Viewed 179 times

DESCRIPTION: HME PRO 850 (YOM: ?) (S#: TBD) LIKE NEW (9-10)

FEATURES: 2 CHANNEL WIRELESS INTERCOM SYSTEM W/ BELTPACKS

FREQUENCY AGILITY ENABLES YOU TO OPERATE THE PRO850 WITHIN THE 470-740 MHZ UHF BAND. THESE SYNTHESIZED FREQUENCIES CAN BE SELECTED IN 25 KHZ INCREMENTS OVER EACH 18 MHZ OPERATIONAL BAND SO YOU CAN EASILY CHOOSE FROM 720 DIFFERENT TRANSMIT AND 720 RECEIVE FREQUENCIES.

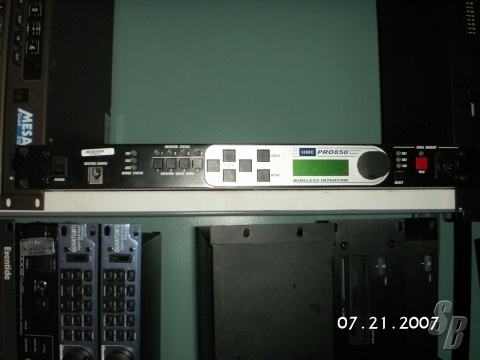

USER-FRIENDLY GRAPHICAL INTERFACE ON THE BASE MAKES IT EASY TO SET UP THE SYSTEM AND OBTAIN STATUS INFORMATION USING THE LCD DISPLAY AND MENU KEYS. PULL-DOWN MENUS ON THE LCD PROVIDE FAST, EASY ACCESS TO ALL SYSTEM FEATURES. MENUS ARE ORGANIZED BY STATUS, AUDIO-LEVEL MONITORING, SYSTEM CONFIGURATION, AND SYSTEM INFORMATION. SIMPLE NAVIGATION BUTTONS AND MULTI-FUNCTION ROTARY KNOB FACILITATE THE SETUP AND ACCESS OF DESIRED FEATURES.

PC INTERFACE USING HME'S PC850 SOFTWARE LETS YOU CONFIGURE THE ENTIRE PRO850 SYSTEM AND MANAGE CONFIGURATION FILES FROM THE CONVENIENCE OF YOUR PC VIA THE RS-232 SERIAL OR USB PORT.

EXPANDABLE SYSTEM ALLOWS YOU TO CONFIGURE THE PRO850 TO MEET YOUR COMMUNICATION NEEDS. A STANDARD PRO850 SYSTEM COMES WITH FOUR BELTPACS AND A BASE STATION. BY LINKING SEVERAL BASE STATIONS TO PROVIDE ADDITIONAL RECEIVERS, UP TO 16 USERS CAN COMMUNICATE WITH EACH OTHER IN FULL-DUPLEX OPERATION.

AUTOMATED BELTPAC OUTPUT POWER CONTROL HELPS OPTIMIZE THE SYSTEM OPERATING POWER. THE BASE STATION AUTOMATICALLY CONFIGURES BELTPAC SETTINGS AND CALIBRATES THE POWER LEVEL FOR EACH BELTPAC, DEPENDING ON ITS DISTANCE FROM THE BASE. THIS ELIMINATES BASE RECEIVER OVERLOAD AND EXTENDS THE BELTPAC BATTERY LIFE.

INTERMODULATION-FREE FREQUENCY GROUPS HAVE BEEN PRE-CONFIGURED TO HELP YOU EASILY SCAN AND SELECT THE BEST, INTERFERENCE-FREE FREQUENCY GROUPS WHEN YOU SET UP THE PRO850. THE SAVVY USER CAN ALSO CONFIGURE ADDITIONAL FREQUENCY GROUPS FOR A QUICK RECALL.

ALERT RELAY OUTPUT PROVIDES A CONFIGURABLE SET OF CONTACTS THAT CAN RESPOND TO PROBLEM CONDITIONS OR TO BELTPAC USER REQUESTS.

AUDIO DIGITALLY MIXED AND ROUTED UNDER USER CONTROL ALLOWS ANY COMBINATION OF INPUTS TO BE MIXED AND DELIVERED TO ANY OUTPUT. THESE SETTINGS CAN BE PRESET AND SAVED TO PROVIDE DIFFERENT MIX CONFIGURATIONS FOR DIFFERENT SHOWS.

REMOTELY "UNLATCH" BELTPACS FROM TRANSMITTING AT THE BASE TO STOP A ROGUE BELTPAC THAT'S BEEN LEFT TRANSMITTING WITHOUT HAVING TO LOCATE THE BELTPAC.

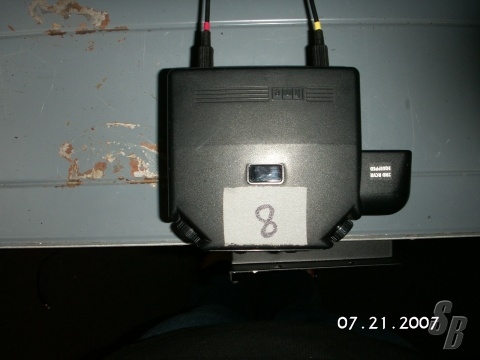

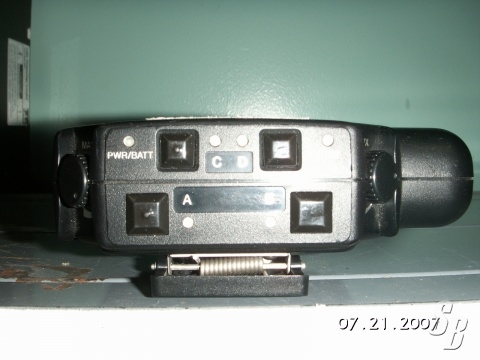

BELTPAC

MORE FLEXIBILITY!

PDA INTERFACE PROVIDES A CONVENIENT METHOD TO CONFIGURE BELTPAC FREQUENCIES AND FUNCTIONS THROUGH A BUILT-IN IRDA PORT USING A PALM-OS PDA AND PDA850 TOOLS.

BELTPAC CONTROLS ARE CONFIGURABLE FOR MULTIPLE TRANSMIT MODES. SEPARATE TALK BUTTONS FOR EACH CHANNEL CAN BE CONFIGURED FOR "PUSH-TO-TALK" OR "PUSH-TO-ENABLE" OPERATION. BUTTONS NOT CONFIGURED FOR TRANSMITTER CONTROL CAN BE CONFIGURED FOR PARTY-LINE SELECTION, PAGING, ISO, ALERT AND CALL FUNCTIONS.

INDIVIDUAL VOLUME CONTROLS ALLOW BELTPAC USERS TO ADJUST AND MUTE THE VOLUME. THE MASTER AND AUXILIARY VOLUME CONTROLS PROVIDE A PUSH-TO-MUTE FUNCTION SO YOU CAN TEMPORARILY MUTE A CHANNEL WHILE KEEPING PREVIOUS VOLUME SETTINGS.

DUAL-CHANNEL ACCESS ALLOWS USERS TO CHOOSE FROM TWO HARDWIRED INTERCOM CHANNELS. SIMULTANEOUS DUAL-CHANNEL ACCESS IS OBTAINED USING THE OPTIONAL 2ND RECEIVER MODULE.

ALERT AND PAGE RELAY CLOSURES ALLOW YOU TO REMOTELY CONTROL EXTERNAL DEVICES FROM THE BELTPAC.

CHANNEL LOCKOUT ENABLES MULTIPLE BELTPAC USERS TO SHARE THE SAME OPERATING FREQUENCY AND AUTOMATICALLY DISABLE A BELTPAC'S ABILITY TO TRANSMIT IF ANOTHER USER IS ALREADY TRANSMITTING ON THAT FREQUENCY.

LOW BATTERY ALERT INFORMS THE USER THROUGH THE HEADSET AND BASE STATION THAT THE BELTPAC BATTERIES ARE LOW.

VERSATILE HEADSET CONNECTOR ALLOWS USE OF STANDARD 4-PIN MALE CONNECTOR OR FIELD-INSTALL OF A 5-PIN FEMALE XLR CONNECTOR. THE BELTPAC AUTO-DETECTS THE MICROPHONE TYPE.

DETACHABLE ANTENNAS WITH STRONG, THREADED CONNECTORS MAKE STORAGE AND SHIPPING EASY.

AUXILIARY AUDIO INPUT ALLOWS A SEPARATE AUDIO SOURCE, SUCH AS AN IFB RECEIVER, TO BE HEARD THROUGH THE BELTPAC HEADSET AND CONTROLLED BY THE BELTPAC VOLUME CONTROLS.

LED BLACKOUT MODE ENABLES CREW MEMBERS TO WORK ON A DARKENED STAGE WITHOUT TELL-TALE LIGHTS BEING VISIBLE TO THE AUDIENCE.

AUTOMATIC STATUS REPORTING TO BASE KEEPS THE TECHNICAL CREW INFORMED OF THE BATTERY CONDITION AND WHICH USERS ARE TALKING.

EXTRAS: BELTPACKS INCLUDED FOR EACH SYSTEM.

MODIFICATIONS: IN SUPERB CONDITION, HARDLY EVER USED AT ALL! LIKE BRAND NEW!!!!!!!!!

HISTORY: LIVE SOUND COMPANY

COMMENTS: SUPERB CONDITION, NO ISSUES.

THIS UNIT WAS NEVER TOURED
