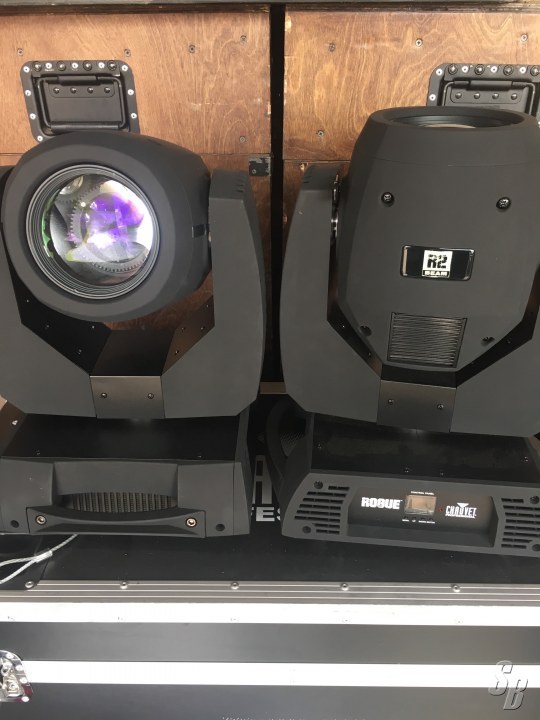

CHAUVET ROGUE R2 BEAM MOVING HEAD
[PRICED PER UNIT - 36 AVAILABLE AT TIME OF LISTING]
Listing last update on January 12, 2017 - Viewed 244 times

CHAUVET ROGUE R2 BEAM (YOM: 2015) (S#: TBD) SUPERB (8-9)

FEATURES:
POWERFUL 1-DEGREE BEAM, 133,200 LUX @ 15 M
17 GOBOS WITH CONTINUOUS VARIABLE-SPEED WHEEL SCROLL
8-FACET ROTATING PRISM FOR INCREDIBLE GOBO AND BEAM EFFECTS
COLOR WHEEL WITH 14 COLORS, SPLIT COLOR ABILITY, AND CONTINUOUS VARIABLE-SPEED SCROLLING
NEUTRIK POWERCON POWER INPUT CONNECTION
INTENSE 230 W OSRAM SIRIUS HRI LAMP
3- AND 5-PIN DMX INPUT/OUTPUT CONNECTIONS
SIMPLE AND COMPLEX DMX CHANNEL PROFILES FOR PROGRAMMING VERSATILITY

SPECIFICATIONS:

OPTICAL
LIGHT SOURCE: OSRAM SIRIUS 230 W LAMP, 8000 K, 2,500 HOURS LIFE EXPECTANCY
COLOR TEMPERATURE (AT FULL): 7500 K
BEAM ANGLE: 1°
FIELD ANGLE: 2°
ILLUMINANCE (TOTAL): 133,200 LUX @ 15 M

DYNAMIC EFFECTS
PAN AND TILT: 540°/270°
PAN AND TILT RANGES: 180°, 360°, 540° PAN/90°, 180°, 270° TILT
COLORS: 14 + WHITE, SPLIT COLORS, CONTINUOUS SCROLL AT VARIABLE SPEEDS
GOBOS : 17 + OPEN (17 METAL), CONTINUOUS SCROLL AT VARIABLE SPEEDS
DIMMER: MOTORIZED
SHUTTER/STROBE: MOTORIZED
FOCUS: MOTORIZED
FROST: MOTORIZED
PRISM: 8 FACETS, MOTORIZED, ROTATING
STROBE RATE: 0 TO 20 HZ
MOVE IN BLACK: YES

CONSTRUCTION / PHYSICAL
DIMENSIONS (SINGLE UNIT): 16.1 X 12.9 X 18.7 IN (409 X 327 X 474 MM)
WEIGHT (SINGLE UNIT): 45.00 LB (20.60 KG)
EXTERIOR COLOR: BLACK
HOUSING MATERIAL: HIGH-IMPACT FLAME-RETARDANT POLYMER

CONNECTIONS
POWER CONNECTION: EDISON (LOCAL) PLUG TO NEUTRIK
POWER INPUT: NEUTRIK POWERCON
DATA CONNECTORS: 3- AND 5-PIN XLR
CABLE LENGTH (POWER): 5 FT (1.5 M)

CONTROL
CONTROL PROTOCOL: DMX
DMX CHANNELS: 15 OR 18
MODES/PERSONALITIES: 2 PERSONALITIES (15, 18)

ELECTRICAL
INPUT VOLTAGE: 100 TO 240 VAC, 50/60 HZ (AUTO-RANGING)
POWER AND CURRENT: 413 W, 3.4 A @ 120 V, 60 HZ
POWER AND CURRENT: 393 W, 1.9 A @ 208 V, 60 HZ
POWER AND CURRENT: 385 W, 1.7 A @ 230 V, 50 HZ

CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP RATING: IP20, DRY LOCATION

EXTRAS: NONE

MODIFICATIONS: DUAL UNIT ROAD CASE IS AVAILABLE.

HISTORY:
* TV STUDIO
* CONFERENCES
* CORPORATE

COMMENTS: NONE

WHAT'S INCLUDED
- ROGUE R2 BEAM
- NEUTRIK POWERCON POWER CORD
- 2 OMEGA BRACKETS WITH MOUNTING HARDWARE

THIS UNIT WAS NEVER TOURED
