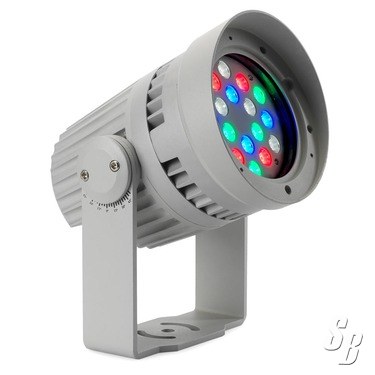

MARTIN LIGHTING EXTERIOR WASH 100

MARTIN LIGHTING EXTERIOR WASH 100

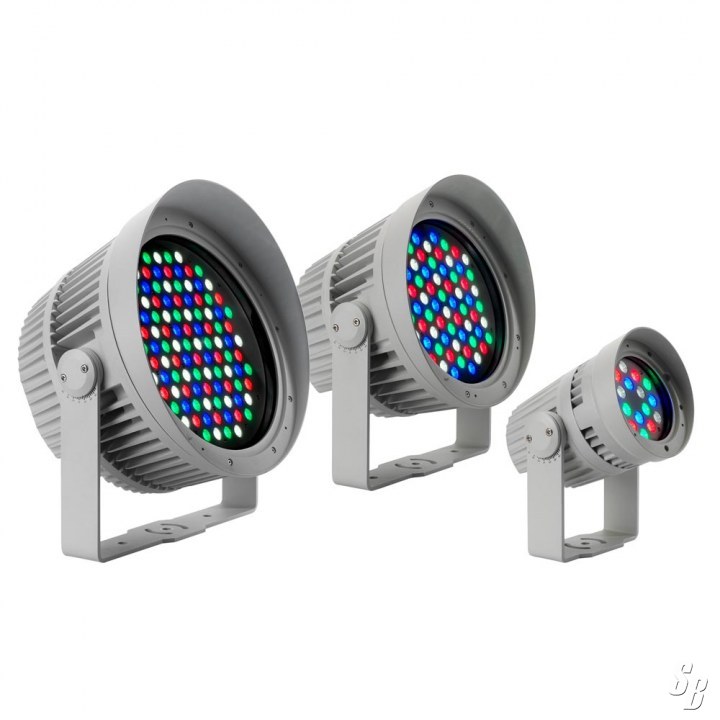

OUTDOOR RATED RGBW COLOR MIXING WASH LIGHT - FOR SMALLER STRUCTURES AND LANDSCAPING

CLICK HERE TO EXTERIOR WASH 300- FOR LARGE FACADES AND STRUCTURES

CLICK HERE TO EXTERIOR WASH 200 - FOR SMALLER STRUCTURES AND LANDSCAPING

DESCRIPTION:

EXTERIOR™ WASH 100 IS A POWERFUL, COMPACT AND ENERGY-EFFICIENT LED LIGHTING FIXTURE DESIGNED TO ILLUMINATE SMALLER STRUCTURES, FEATURES OF A BUILDING AND LANDSCAPING. A DISCREET, OPTIONAL SNOOT INTEGRATES SEAMLESSLY WITH THE SLICK DESIGN OF THE FIXTURES. IT HAS BUILT-IN DISPLAY FOR EASE-OF-USE, A WIDE SELECTION OF BEAM ANGLES AND IS FULLY IP-RATED FOR PERMANENT OUTDOOR USE.

THE EXTERIOR WASH 100 IS DESIGNED FOR NARROW BEAM APPLICATIONS AND IS BASED ON SEPARATE LEDS FOR RED, GREEN, BLUE AND WHITE

  • NARROW BEAM CONFIGURATION WITH 6 BEAM ANGLE OPTIONS
  • FUNCTIONAL AND DISCREET OPTIONAL SNOOT WHICH INTEGRATES WITH THE DESIGN OF THE FIXTURES
  • CONTROL VIA DMX, RDM AND OLED DISPLAY

FEATURES:

  • POWERFUL SINGLE COLOR R,G,B,W LEDS
  • UP TO 1800 LUMENS AT FULL WHITE (RGBW)
  • SIX DIFFERENT BEAM ANGLE OPTIONS
  • INTERNAL POWER AND CONTROL (DMX, RDM AND OLED DISPLAY)
  • RUGGED IP66 HOUSING
  • 0–100% INTENSITY CONTROL

SPECIFICATIONS:

PHYSICAL
LENGTH: 240 MM (9.5 IN.)
WIDTH: 198 MM (7.8 IN.)
HEIGHT: 257 MM (10.2 IN.)
WEIGHT: 5.0 KG (11.1 LBS.)
DYNAMIC EFFECTS
COLOR MIXING: RGBWINTENSITY: 0 - 100%
CONTROL AND PROGRAMMING
CONTROL SYSTEMS: DMX, RDM
SETTING, ADDRESSING, STANDALONE PROGRAMMING: CONTROL PANEL WITH OLED DISPLAY
STAND-ALONE CONTROL: UP TO 20 SCENES WITH GLOBAL FADE/HOLD TIMESDMX
CHANNELS: 3-5 DEPENDING ON DMX MODE
RECEIVER: RS-485
DMX COMPLIANCE: USITT DMX512-A
RDM COMPLIANCE: ANSI/ESTA E1.20
FIRMWARE UPDATE: SERIAL UPLOAD VIA DMX LINK
OPTICS
LIGHT SOURCE: 4 X R, 5 X G, 4 X B, 5 X W SINGLE-COLOR LEDS
LED MANUFACTURER: CREE
BEAM ANGLE OPTIONS:

NO DIFFUSER: 7.5°
NARROW DIFFUSER: 11.5°
MEDIUM DIFFUSER: 25°
WIDE DIFFUSER: 50°
VERY WIDE DIFFUSER: 60°
ASYMMETRIC DIFFUSER: 61° X 15°

MINIMUM LED LIFETIME:
50,000 HOURS (TO >70% LUMINOUS OUTPUT)*
INSTALLATION
MOUNTING: ADJUSTABLE YOKE
ORIENTATION: ANY
MINIMUM DISTANCE TO ILLUMINATED SURFACES: 0.2 M (0.6 FT.)
CONNECTIONS
POWER CONNECTION: 1.8 M (5.9 FT.) CABLE TAIL WITHOUT CONNECTOR
POWER INPUT CABLE TYPE, US MODELS: SJOW 18AWG, 300V, WL F1, Ø 8 MM
DATA CONNECTION: 1.8 M (5.9 FT.) OPEN-ENDED 5-CONDUCTOR COMBINED INPUT + OUTPUT CABLE TAIL
ALL CABLE ENTRIES: IP68 CABLE GLAND
INCLUDED ITEMS
COVER PLATE FOR CONTROL PANEL
EXTERIOR WASH 100, 7°, US P/N 90510340 - BRAND NEW WITH FULL WARRANTY
