For Sale: MARTIN LIGHTING EXTERIOR WASH 200
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on June 30, 2023 - Viewed 352 times

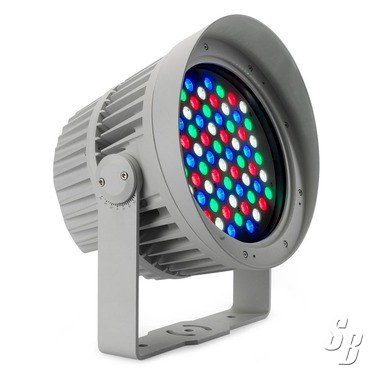

MARTIN LIGHTING EXTERIOR WASH 200

MARTIN LIGHTING EXTERIOR WASH 200

OUTDOOR RATED RGBW COLOR MIXING WASH LIGHT - FOR MID-SIZED FACADES AND STRUCTURES

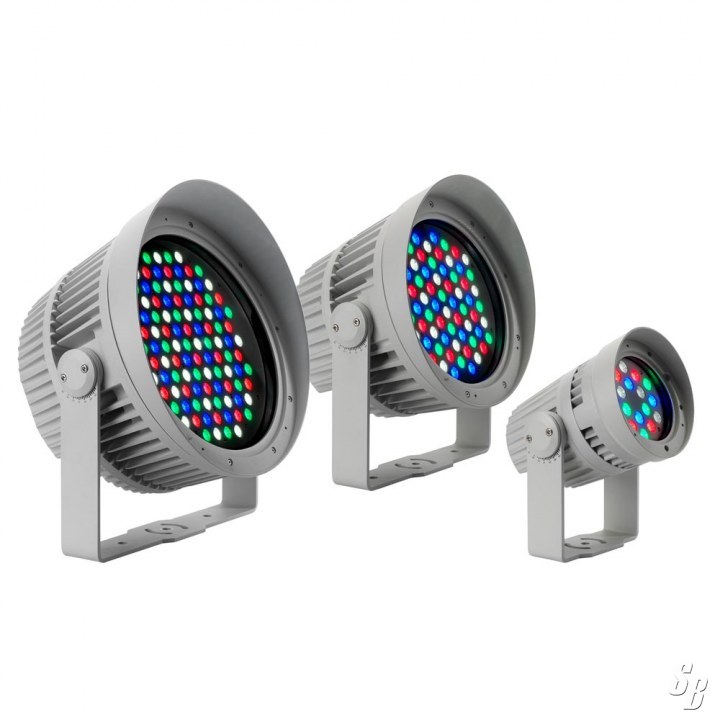

CLICK HERE TO EXTERIOR WASH 300- FOR LARGE FACADES AND STRUCTURES

CLICK HERE TO EXTERIOR WASH 100 - FOR SMALLER STRUCTURES AND LANDSCAPING

DESCRIPTION:

EXTERIOR™ WASH 200 IS A POWERFUL, COMPACT AND ENERGY-EFFICIENT LED LIGHTING FIXTURE DESIGNED TO ILLUMINATE MID-SIZED STRUCTURES AND BUILDING FACADES. A DISCREET, OPTIONAL SNOOT INTEGRATES SEAMLESSLY WITH THE SLICK DESIGN OF THE FIXTURES. IT HAS BUILT-IN DISPLAY FOR EASE-OF-USE, A WIDE SELECTION OF BEAM ANGLES AND IS FULLY IP-RATED FOR PERMANENT OUTDOOR USE.

THE EXTERIOR WASH 200 IS DESIGNED FOR NARROW BEAM APPLICATIONS AND IS BASED ON SEPARATE LEDS FOR RED, GREEN, BLUE AND WHITE

  • NARROW BEAM CONFIGURATION WITH 6 BEAM ANGLE OPTIONS
  • FUNCTIONAL AND DISCREET OPTIONAL SNOOT WHICH INTEGRATES WITH THE DESIGN OF THE FIXTURES
  • CONTROL VIA DMX, RDM AND OLED DISPLAY

FEATURES:

  • POWERFUL SINGLE COLOR R,G,B,W LEDS
  • UP TO 6500 LUMENS AT FULL WHITE (RGBW)
  • SIX DIFFERENT BEAM ANGLE OPTIONS
  • INTERNAL POWER AND CONTROL (DMX, RDM AND OLED DISPLAY)
  • RUGGED IP66 HOUSING
  • 0–100% INTENSITY CONTROL

SPECIFICATIONS:

PHYSICAL
LENGTH: 270 MM (10.7 IN.)WIDTH: 334 MM (13.2 IN.)HEIGHT: 382 MM (15.1 IN.)WEIGHT: 13.0 KG (28.7 LBS.)
DYNAMIC EFFECTS
COLOR MIXING: RGBWINTENSITY: 0 - 100%
CONTROL AND PROGRAMMING
CONTROL SYSTEMS: DMX, RDM
SETTING, ADDRESSING, STANDALONE PROGRAMMING: CONTROL PANEL WITH OLED DISPLAY
STAND-ALONE CONTROL: UP TO 20 SCENES WITH GLOBAL FADE/HOLD TIMESDMX
CHANNELS: 3-5 DEPENDING ON DMX MODE
RECEIVER: RS-485
DMX COMPLIANCE: USITT DMX512-A
RDM COMPLIANCE: ANSI/ESTA E1.20
FIRMWARE UPDATE: SERIAL UPLOAD VIA DMX LINK
OPTICS
LIGHT SOURCE: 16 X R, 18 X G, 16 X B, 18 X W SINGLE-COLOR LEDS
LED MANUFACTURER: CREE
BEAM ANGLE OPTIONS:

NO DIFFUSER: 7.5°
NARROW DIFFUSER: 11.5°
MEDIUM DIFFUSER: 25°
WIDE DIFFUSER: 36°
VERY WIDE DIFFUSER: 60°
ASYMMETRIC DIFFUSER: 59° X 14.5°

MINIMUM LED LIFETIME:
50,000 HOURS (TO >70% LUMINOUS OUTPUT)*
INSTALLATION
MOUNTING: ADJUSTABLE YOKE
ORIENTATION: ANY
MINIMUM DISTANCE TO ILLUMINATED SURFACES: 0.2 M (0.6 FT.)
CONNECTIONS
POWER CONNECTION: 1.8 M (5.9 FT.) CABLE TAIL WITHOUT CONNECTOR
POWER INPUT CABLE TYPE, EU MODELS: H05RN-F 300/500V, 3 X 0.75 MM2, Ø 7 MM
POWER INPUT CABLE TYPE, US MODELS: SJOW 18AWG, 300V, WL F1, Ø 8 MM
DATA CONNECTION: 1.8 M (5.9 FT.) OPEN-ENDED 5-CONDUCTOR COMBINED INPUT + OUTPUT CABLE TAIL
ALL CABLE ENTRIES: IP68 CABLE GLAND
INCLUDED ITEMS
COVER PLATE FOR CONTROL PANEL
EXTERIOR WASH 200, 7°, US P/N 90509090 - BRAND NEW WITH FULL WARRANTY
