ID # 136681    CURRENT CATEGORY - LIGHTING


For Sale: MARTIN LIGHTING EXTERIOR WASH 300 (310 / 320 AVAILABLE)
[PRICED PER UNIT - 333 AVAILABLE AT TIME OF LISTING]
Listing last update on June 30, 2023 - Viewed 362 times

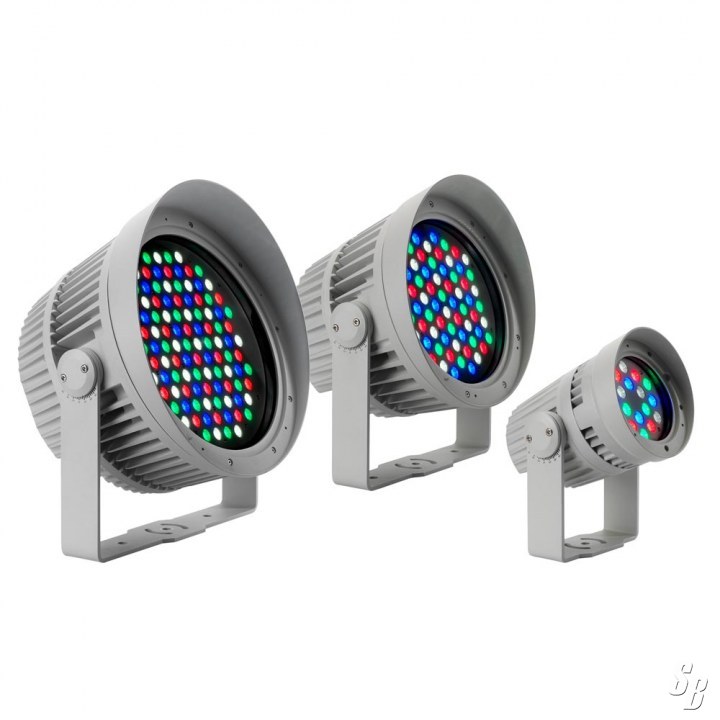

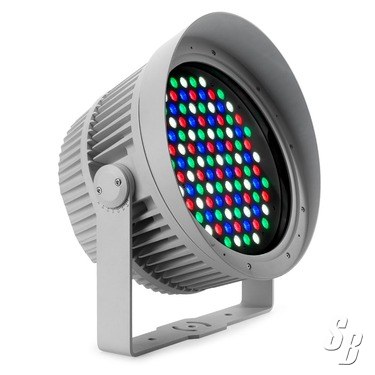

MARTIN LIGHTING EXTERIOR WASH 300 (310 / 320 AVAILABLE)

MARTIN LIGHTING EXTERIOR WASH 300 (310 / 320 AVAILABLE)

OUTDOOR RATED RGBW COLOR MIXING WASH LIGHT - FOR LARGE FACADES AND STRUCTURES

CLICK HERE TO EXTERIOR WASH 200 - FOR MID-SIZED FACADES AND STRUCTURES

CLICK HERE TO EXTERIOR WASH 100 - FOR SMALLER STRUCTURES AND LANDSCAPING

DESCRIPTION:

EXTERIOR WASH™ 300 IS A POWERFUL, COMPACT AND ENERGY-EFFICIENT LED LIGHTING FIXTURE DESIGNED TO ILLUMINATE LARGE STRUCTURES, BUILDING FACADES, AND BRIDGES. A DISCREET, OPTIONAL SNOOT INTEGRATES SEAMLESSLY WITH THE SLICK DESIGN OF THE FIXTURES. IT HAS BUILT-IN DISPLAY FOR EASE-OF-USE, A WIDE SELECTION OF BEAM ANGLES AND IS FULLY IP-RATED FOR PERMANENT OUTDOOR USE.

THE EXTERIOR WASH 300 IS DESIGNED FOR NARROW BEAM APPLICATIONS AND IS BASED ON SEPARATE LEDS FOR RED, GREEN, BLUE AND WHITE

  • NARROW BEAM CONFIGURATION WITH 6 BEAM ANGLE OPTIONS
  • FUNCTIONAL AND DISCREET OPTIONAL SNOOT WHICH INTEGRATES WITH THE DESIGN OF THE FIXTURES
  • CONTROL VIA DMX, RDM AND OLED DISPLAY

FEATURES:

  • POWERFUL SINGLE COLOR R,G,B,W LEDS
  • UP TO 10.300 LUMENS AT FULL WHITE (RGBW)
  • SIX DIFFERENT BEAM ANGLE OPTIONS
  • INTERNAL POWER AND CONTROL (DMX, RDM AND OLED DISPLAY)
  • RUGGED IP66 HOUSING
  • 0 – 100% INTENSITY CONTROL

SPECIFICATIONS:

PHYSICAL
LENGTH: 283 MM (11.2 IN.)
WIDTH: 404 MM (15.9 IN.)
HEIGHT: 439 MM (17.3 IN.)
WEIGHT: 19.0 KG (42.0 LBS.)
DYNAMIC EFFECTS
COLOR MIXING: RGBW
INTENSITY: 0 - 100%
CONTROL AND PROGRAMMING
CONTROL SYSTEMS: DMX, RDM
SETTING, ADDRESSING, STANDALONE PROGRAMMING: CONTROL PANEL WITH OLED DISPLAY
STAND-ALONE CONTROL: UP TO 20 SCENES WITH GLOBAL FADE/HOLD TIMES
DMX CHANNELS: 3-5 DEPENDING DMX MODE
RECEIVER: RS-485
DMX COMPLIANCE: USITT DMX512-A
FIRMWARE UPDATE: SERIAL UPLOAD VIA DMX LINK
OPTICS
LIGHT SOURCE: 26 X R, 28 X G, 22 X B AND 28 X W SINGLE-COLOR LEDS
LED MANUFACTURER: CREE
BEAM ANGLE OPTIONS:

NO DIFFUSER: 7.5°
NARROW DIFFUSER: 11.5°
MEDIUM DIFFUSER: 25°
WIDE DIFFUSER: 41°
VERY WIDE DIFFUSER: 59°
ASYMMETRIC DIFFUSER: 65° X 14.5°

MINIMUM LED LIFETIME:
50,000 HOURS (TO >70% LUMINOUS OUTPUT)**FIGURE OBTAINED UNDER MANUFACTURER'S TEST CONDITIONS
INSTALLATION
MOUNTING: ADJUSTABLE YOKE
ORIENTATION: ANY
MINIMUM DISTANCE TO ILLUMINATED SURFACES: 0.2 M (0.6 FT.)
CONNECTIONS
POWER CONNECTION: 1.8 M (5.9 FT.) CABLE TAIL WITHOUT CONNECTOR
POWER INPUT CABLE TYPE, US MODELS: SJOW 18AWG, 300V, WL F1, Ø 8 MM
DATA CONNECTION: 1.8 M (5.9 FT.) OPEN-ENDED 5-CONDUCTOR COMBINED INPUT + OUTPUT CABLE TAIL
ALL CABLE ENTRIES: IP68 CABLE GLAND
INCLUDED ITEMS
COVER PLATE FOR CONTROL PANEL
EXTERIOR WASH 300, 7°, US P/N 90507071 - BRAND NEW WITH FULL WARRANTY

WWW.SOUNDBROKER.COM LINKING BUYERS AND SELLERS TOGETHER SINCE 1997 FOR NEW AND USED PROFESSIONAL AUDIO, LIGHTING, STAGING, PROJECTORS, AND VIDEO EQUIPMENT.

Additional Details
ID#: 136681
Listing Type:
Standard
Model: EXTERIOR WASH 300
Manufacturer: MARTIN LIGHTING
Condition: MFG A STOCK
Shipping Info: 0.00 lbs.,
Seller's Location: CA, USA
Updated: June 30, 2023
M.S.R.P.: $0.00
Offered at: Contact Us
