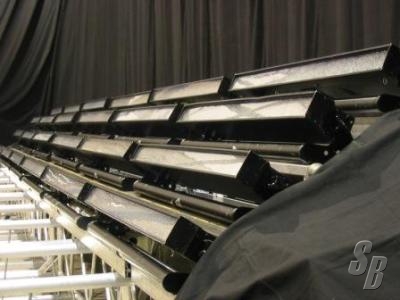

PIXELRANGE 1044 LED BATTENS
[PRICED PER UNIT - 28 AVAILABLE AT TIME OF LISTING]
Listing last update on February 24, 2010 - Viewed 150 times

PIXELRANGE PIXEL LINE 1044 (YOM: ?) (S#: TBD) GOOD (7-8)

FEATURES: PIXELLINE 1044 IS A RGB LINEAR BATTEN FEATURING 1044 HIGH INTENSITY LEDS. A LIGHTING DESIGNER'S FAVOURITE, THE 1044 IS IDEAL FOR TOURING, TELEVISION AND THEATRE APPLICATIONS. CREATES STUNNING EFFECTS AND OFFERS EXCEPTIONAL COLOUR CLARITY FROM ITS VAST LED COLOUR PALETTE. IP20 RATED, UL APPROVED PRODUCT AVAILABLE, OUTSTANDING LONGEVITY, VERY LOW POWER CONSUMPTION AND CAN BE FLOOR OR TRUSS MOUNTED.

1044 HIGH INTENSITY RED, GREEN AND BLUE LEDS.
16.7 MILLION COLOUR COMBINATIONS.
BEAM ANGLE 20° CONICAL AS STANDARD.
LIGHT SHAPING DIFFUSING LENSES AVAILABLE TO VARY OUTPUT BEAM ANGLE.
PRE-PROGRAMMED WITH 2 OVERLAPPING SETS OF EFFECTS, EACH WITH 31 PATTERNS.
PROVIDES AN ALTERNATIVE PROJECTION MEDIUM FOR VIDEO MANIPULATION SOFTWARE.
DMX 512 DIGITAL INPUT/OUTPUT WITH MULTIPLE RESOLUTIONS UP TO 54 CHANNELS.
CONTROL VIA EXTERNAL SOURCE OR STAND ALONE MASTER/SLAVE.
ON BOARD DIAGNOSTICS PROVIDES DATA AND POWER INFORMATION.
FITTED WITH 16 AMP SOCKET TO PROVIDE POWER TO CONNECT ADJACENT FIXTURES.
AUTO SETTING POWER INPUT 100 - 250V AC.
LOW POWER CONSUMPTION (150 WATTS AT FULL INTENSITY) VIRTUALLY NO HEAT GENERATED.
INTERNAL QUIET FAN COOLING SYSTEM.
ROBUST METAL CONSTRUCTION.
SIZES 1179MM (46.4”) LENGTH X 181MM (7.1”) WIDTH X 86MM (3.4”) HEIGHT
WEIGHT 12.2KG (26.8LBS) WITH COMBI YOKE -11KG (24.2LBS) WITHOUT.





EXTRAS: 16 AMP CEE FORM CHASSIS MOUNTED PLUG FITTED AS STANDARD.

COMBI YOKE SUPPLIED AS STANDARD FOR EASE OF HANGING OR FLOOR STANDING.

ROAD CASE INCLUDED WITH THE PURCHASE OF 6.

MODIFICATIONS: NO

HISTORY: USED BY REGIONAL SOUND AND LIGHT COMPANY.

COMMENTS: NO

THIS UNIT WAS NEVER TOURED
