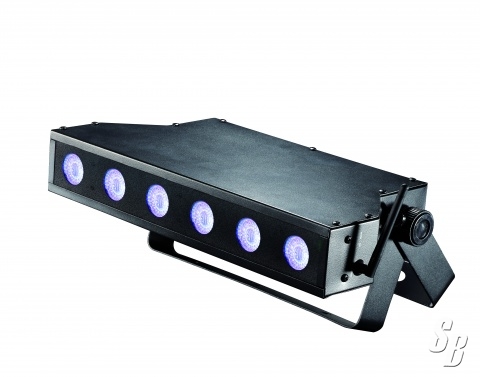

RED LIGHTING QUADRO B-6 BATTERY LIGHT
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on November 14, 2016 - Viewed 333 times

RED LIGHTING QUADRO B-6 (YOM: ?) (S#: TBD) SEE DESCRIPTION

FEATURES: KEY FEATURES:
• RGBW LED BAR DESIGNED FOR TEMPORARY INSTALLATION AND EVENT
• NO CABLE REQUIRED
• AVERAGE 12 HOURS AUTONOMY
• INDIVIDUAL LED PIXEL CONTROL
• HIGH CAPACITY AND LONG LIFE LITHIUM RECHARGEABLE BATTERY
• WIRELESS TRANSMITTER AND RECEIVER ON BOARD
• THROW DISTANCE: 3-8 M

LIGHT SOURCE:
• POWER: 6 X 10W RGBW LED
• AVERAGE LED LIFE: 50.000 HOURS

SPECIFICATIONS:
COLOR
• RGBW COLOR MIXING
PIXEL CONTROL
• INDIVIDUAL
BEAM ANGLE
• 30°
STROBE/DIMMER
• STROBE: VARIABLE
• DIMMER: LINEAR DIGITAL 0-100%
BATTERY
• LITHIUM RECHARGEABLE BATTERY PACK
• MORE THAN 12 HOURS OF AUTONOMY
• LESS THAN 4 HOURS OF CHARGING TIME
• MORE THAN 500 CHARGING CYCLES
WIRELESS
• TRANSMITTER/RECEIVER ON BOARD
COOLING
• FORCED VENTILATION
• CONTROLLED FAN SPEED
MOUNTING
• ADJUSTABLE MOUNTING BRACKETS

PHYSICAL SIZE:
• WEIGHT: 4.5 KG
• PACKING DIMENSION: 50X35X10 CM
• GROSS WEIGHT: 5.5 KG

CONTROL PROTOCOL AND PROGRAMMING:
• USITT DMX 512/1990
• 3 CONTROL CHANNEL MODES: 7/24/27 CHANNELS
• 4 OPERATIONAL MODES: DMX-512, SLAVE, AUTO, AUDIO
• 4 BUTTONS CONTROL PANEL
• LCD DISPLAY, AUTO LOCK


ELECTRICAL SPECIFICATIONS/CONNECTIONS:
• AC POWER: 100-240V, 50/60HZ
• MAX POWER CONSUMPTION: 60 W
• POWER CONNECTION: POWERCON IN/OUT
• DMX CONNECTION: 3 POLES IN/OUT

EXTRAS: USER MANUAL

MODIFICATIONS: NO MODIFICATIONS

HISTORY: THIS PRODUCT WAS USED AS A SAMPLE AND DEMO'D SEVERAL TIMES. IT IS IN EXCELLENT CONDITION.

COMMENTS: THIS PRODUCT WAS USED AS A SAMPLE AND DEMO'D SEVERAL TIMES. IT IS IN EXCELLENT CONDITION.

THIS UNIT WAS NEVER TOURED
