For Sale: TOMCAT 43 X 43 PRT ROOF SYSTEM, COMPLETE, TURNKEY
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on June 29, 2022 - Viewed 612 times

TOMCAT 43 X 43 PRT ROOF SYSTEM, COMPLETE, TURNKEY

CM LODESTAR, LEPRECON, MOTION LABS, NSI, TOMCAT 43 X 43 PRT FLAT ROOF WITH PEAK STRUCTURE (YOM: 2006) GOOD (7-8) FEATURES:

TOMCAT 43 X 43 PRT FLAT ROOF SYSTEM WITH ADDITIONAL PEAK STRUCTURE.

LISTING FEATURED ITEMS:

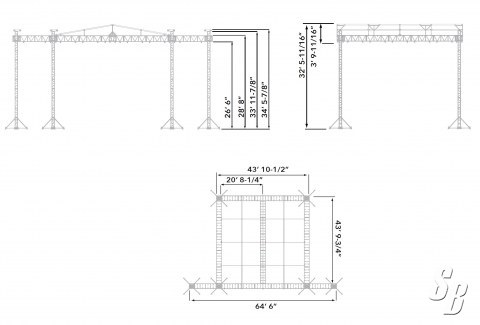

• TOMCAT 43 X 43 PRT FLAT ROOF WITH PEAK STRUCTURE.
• 120 TOMCAT PAR64 ON LAMP BARS.
• 60 PAR 64 MFL 1000 WATT LAMPS.  60 PAR 64 NARROW 1000 WATT LAMPS.
• 20 12/14 SOCA CABLES, CUSTOM LENGTHS TO FIT TRUSS.
• NSI 96 CHANNEL 2.4KW DIMMER WITH SOFT PATCH.
• LEPRECON 48 CHANNEL 2.4KW DIMMER WITH HARD PATCH
• LEPRECON LP-3000 LIGHTING CONTROLLER

• 6 CM 1 TON MODEL L MOTORS IN CASES WITH 80' LIFT 1 TON MOTORS IN CASES WITH 72' LIFT.
• MOTION LABS 8-WAY MOTOR CONTROLLER WITH SOCA 7 PIN CABLES.
• 8 COEMAR CF7-HEX

• 1 MOTION LABS 208 VOLT SOCA DISTRO FOR COEMARS WITH 6 CHANNEL BREAKOUT

• 1998 UTILITY 53' VAN SEMI TRAILER.

NOTE: CURRENTLY FOR THIS DEAL, IF YOU WERE TO GET IT AT TOMCAT TODAY, THE COST WOULD BE NEARLY $226,400.00.

EXTRAS:

• ALL MOTORS WILL HAVE THE CURRENT ANNUAL INSPECTION COMPLETED.
• SEMI TRAILER INCLUDES ANNUAL INSPECTION FOR LOWER 48.
• 1 DAY OF TRAINING AT YOUR FLAT AND LEVEL SITE IN THE CONTINENTAL US IS AVAILABLE.
• TRAINING REQUIRES 14 COMPETENT LABORERS AND HOTEL AND MEALS FOR TRAINER(S).
• SEMI TRAILER DELIVERED IN CONTINENTAL UNITED STATES FOR ADDITIONAL COST.


INCLUDES:

• PRT SUNSHADE
• 120K PAR64
• SOCA CABLES / DIMMERS
• 53' AIR RIDE SEMI TO TRANSPORT
• MOTORS / CONTROLLER / CABLES

MODIFICATIONS:

NONE

HISTORY:

• USED FOR A HANDFUL OF FESTIVALS EACH YEAR.
• IT HAS APPX. 125 DAYS OF USE.
• PURCHASED IN SEPT OF 2006.
• IT IS MY UNDERSTANDING THAT THIS STRUCTURE WAS TOMCAT'S FIRST ROOF THAT MET THE ESTA 2006 SPECIFICATION.
• THIS ROOF IS IN GOOD CONDITION.
• THE SKIN HAS A SEASON OR TWO LEFT AND WILL NEED REPLACEMENT.  THERE ARE NO TEARS IN THE SKIN, BUT THERE ARE SOME ISSUES WITH POCKETS THAT GO OVER THE ROOF RAFTERS.

COMMENTS:

THIS UNIT WAS NEVER TOURED

FROM TOMCAT:

LONG DEMANDED BY THE TOURING INDUSTRY, THE PRE-RIG TRUSS (PRT ) SUNSHADE HAS QUICKLY BECOME THE FAVORITE SYSTEM FOR SMALL TO MEDIUM-SIZED PRODUCTIONS.

DESIGNED FOR RAPID DISASSEMBLY AND MOBILITY, THE PRT SUNSHADE MAY BE UTILIZED IN A VARIETY OF VENUES.

• MORE IMPORTANTLY, THE SYSTÉM IS BUILT FROM INDUSTRY STANDARD COMPONENTS LIKE 93” DOUBLE HUNG PRE-RIG TRUSS AND MARK I TOWERS WHICH ADD TO ITS VERSATILITY.
• THE “FLAT” SUNSHADE INCORPORATES A CANOPY RAIL SYSTEM ABOVE A FLAT PRE-RIG TRUSS GRID TO FORM THE ROOF’S PITCH.
• BOTH OPTIONS ARE AVAILABLE WITH PA WINGS FORMED WITH A 123” SECTION OF DOUBLE-HUNG PRE-RIG TRUSS USED TO CONNECT EACH DOWNSTAGE TOWER TO AN ADDITIONAL TOWER.
• THE LIVE LOADS (EQUIPMENT LOADS) THAT CAN BE APPLIED TO THE SYSTEM INCLUDE A 6,000-POUND UNIFORMLY DISTRIBUTED LOAD (UDL) ON THE MAIN GRID AND A 5,000-POUND SPEAKER LOAD ON EACH PA WING - MAKING IT IDEAL FOR MANY APPLICATIONS.
