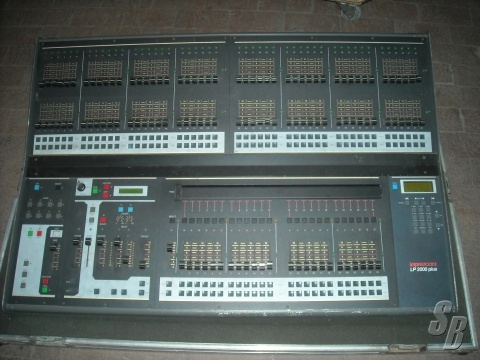

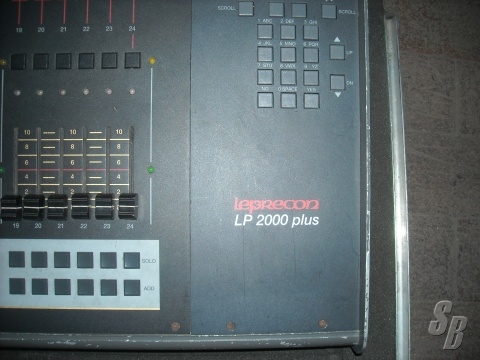

LEPRECON LP-2000 (LP2000) PLUS LIGHTING CONSOLE
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on October 29, 2011 - Viewed 230 times

LEPRECON LP-2000 PLUS (YOM: ?) (S#: TBD) GOOD (7-8)

FEATURES: MANUAL CAPACITY: TWO-SCENE PRESET 48, CHANNELS. ADD AND SOLO BUMP BUTTONS FOR EACH CHANNEL. DIPLESS
CROSSFADE BETWEEN MANUAL SCENES WITH DELAY TIMER AND PROGRESS
METERS.
MEMORY CAPACITY: 12 OR 24 (ON 48-CHANNEL AND LARGER CONSOLES) REALTIME
PRESET FADERS WITH ADD AND SOLO BUMP BUTTONS FOR EACH
PRESET. PRESETS ARE ASSIGNED TO ONE OF EIGHT MEMORY PAGES BY
MEANS OF AN EIGHT-SIDED PAGE ROLLER, OFFERING A TOTAL OF 96 OR
192 PRESETS. AN ADDITIONAL MEMORY FADER, PRESET 0, HAS NO
PAGE LOCATION, AND REMAINS CONSTANT ON ALL PAGES. PRESETS MAY BE
PREVIEWED WITHOUT BRINGING UP THE FADER. EDITING OF AN EXISTING
PRESET MAY BE DONE WITH THE MANUAL SCENE FADERS WITHOUT RERECORDING
THE ENTIRE PRESET.
CHASE: EIGHT PROGRAMMABLE PATTERNS OF UP TO 32 STEPS EACH ARE
PROVIDED, AND ANY NUMBER OF CHASES CAN BE RUN CONCURRENTLY. EACH
CHASE STEP CAN BE ANY COMBINATION OF MANUAL SCENES AND PRESETS,
AND STEPS ARE RECORDED, PREVIEWED, AND EDITED AS EASILY AS THE
PRESET SCENES. THE DIRECTION AND RATE OF EACH PATTERN MAY BE
SAVED WITH THE CHASE. THE CHASE MAY ALSO BE ADVANCED ONE STEP AT
A TIME MANUALLY, OR HALTED MOMENTARILY.
DIMMER OUTPUTS: USITT STANDARD DMX 512 DIGITAL OUTPUT, OR OPTIONAL
ANALOG 0-10 VOLT OUTPUT. ANALOG VOLTAGES ARE TRIMMABLE OVER A
RANGE OF 5 TO 12 VOLTS AT MAXIMUM, 0 TO 3 VOLTS AT MINIMUM.
AVAILABLE ANALOG OUTPUT CONNECTORS INCLUDE 27-PIN CINCH-JONES AND
37-PIN SOCAPEX.
CONSTRUCTION: ALL ALUMINUM CHASSIS AND PANELS, WITH MODULAR
CONSTRUCTION OF CONSOLE SUBASSEMBLIES. PANELS ARE HINGED FOR
QUICK ACCESS TO ALL INTERNAL COMPONENTS.
ACCESSORIES: LITTLELITES WITH POWER SUPPLY AND DIMMER ARE STANDARD.
OPTIONS: ANALOG 0-10 VOLT CONTROL WITH SOCAPEX OR CINCH-JONES OUTPUT;
PENNY & GILES FADERS; SOFTPATCH WITH 4 PROGRAMMABLE DIMMER-TOCONTROL-
CHANNEL ASSIGNMENTS. THE LP-2000 CUE PLUS INCLUDES THE
SOFTPATCH, PROGRAMMABLE CUE STACK WITH 999 SCENE MEMORY, MANUAL
OR AUTOMATIC CUE ADVANCE, COLOR CHANGER CONTROL, AND BUILT-IN
3.5-INCH DISK DRIVE.

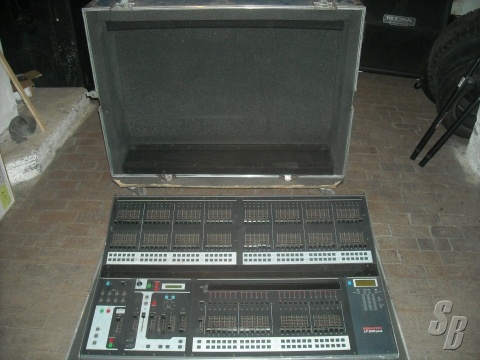

EXTRAS: THIS BOARD COMES WITH A ROAD CASE. ROAD CASE IS IN ROUGH CONDITION, BUT SERVES ITS PURPOSE.

MODIFICATIONS: NO MODIFICATIONS.

HISTORY: THIS ITEM WAS A PURCHASED ITEM AVAILABLE FOR RENTAL.

COMMENTS: THIS ITEM HAS BEEN FULLY TESTED BEFORE THE SALE AND IS GUARANTEED TO BE IN FULL WORKING ORDER.

THIS UNIT WAS NEVER TOURED
