STRAND CD-80/PACK (1995) (S#: CAT# 8125) GOOD (7-8)
[PRICED PER UNIT - 5 AVAILABLE AT TIME OF LISTING]
Listing last update on March 03, 2007 - Viewed 300 times

STRAND CD-80/PACK (1995) (S#: CAT# 8125) GOOD (7-8)

CD80 PORTABLE DIMMER PACKS ARE AVAILABLE FOR 120 VOLT SYSTEMS AND HAVE OFFERED SOLID RELIABILITY TO USERS FOR OVER 10 YEARS WITH THOUSANDS OF SYSTEMS IN USE.

TWELVE 2.4KW DIMMERS (20A PRIMARY BREAKERS) WITH 24 20A PIN CONNECTOR OUTPUTS

SPECS AT: HTTP://WWW.STRANDLIGHTING.COM/PDF/US-05/2005-120V%20CD%2080%20DIMMER%20PACKS..PDF

RUGGED DIMMER PACKS FOR PORTABLE AND PERMANENT APPLICATIONS.
UNITS OFFERED ARE FOR TERMINAL STRIP OUTPUT FOR PERMANENT INSTALLATIONS. BUYER CAN ALTER FOR PORTABLE USE.

AUTOMATIC MULTIPLE PROTOCOLS - AUTOMATICALLY SELECTS FOR DMX 512 AND AMX 192 WITH ACTIVE PROTOCOL LED DISPLAY

OVERLAPPING SIMULTANEOUS 0 TO +10V ANALOG CONTROL OUTPUT

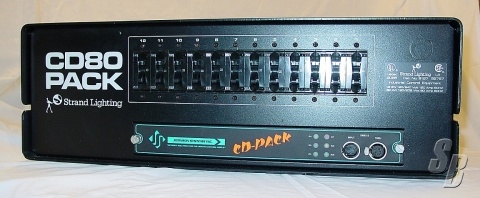

ILLUMINATED PUSH BUTTONS FOR LOCAL CONTROL (FULL/NORMAL) PLUS - PANIC - FEATURE FOR INSTANT ON

INPUT AND OUTPUT XLR CONNECTORS FOR DAISY CHAINING PACKS

ENTIRE PACK UL AND CSA APPROVED AS AN ASSEMBLY AND APPROPRIATELY LABELLED

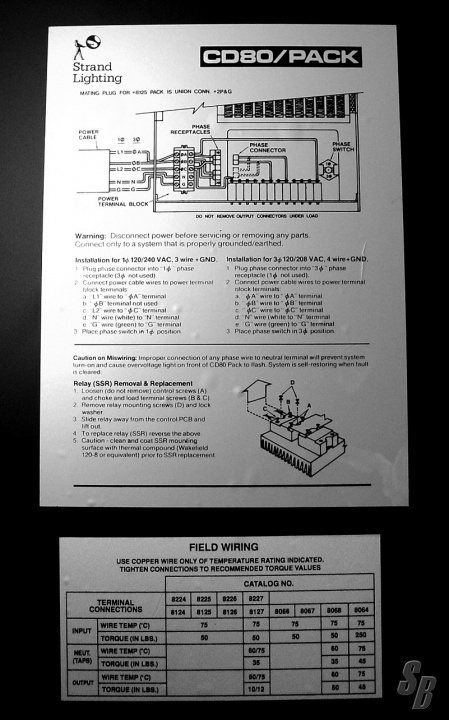

SIMPLE PHASE CHANGE FROM SINGLE PHASE 3 WIRE TO THREE PHASE 4 WIRE

JOHNSON SYSTEMS INC. - "BASIC" DMX 512 UPGRADE

* DMX INPUT WITH OPTO-ISOLATED DMX DATA THRU (DMX OUTPUT).
* INTERNAL ROTARY ADDRESS SELECT SWITCHES IN SINGLE CHANNEL INCREMENTS.
* INTERNAL DMX END-OF-LINE TERMINATION.
* AUTO ADJUST OF INCOMING LINE VOLTAGE AND FREQUENCY.
* LED STATUS INDICATION OF PHASE REFERENCE, POWER, DATA RECEIVE AND OVERTEMP.
* DIMMER CURVE SELECTION OF LINEAR OR SQUARE LAW OUTPUT.
* FIVE MINUTE FAN TIME OUT WITH LOSS OF INPUT SIGNAL.
* ADVANCED VOLTAGE REGULATION CIRCUITRY ENSURES STABLE AND ACCURATE OUTPUT LEVELS AT ALL TIMES.

LITE USAGE IN A CORPORATE TV STUDIO FOR 10 YEARS. THESE UNITS WERE RACK MOUNTED AND LOCKED DOWN FOR THEIR ENTIRE TERM OF USE.

THIS UNIT WAS NEVER TOURED
