ELATION DESIGN SPOT 575E DMX MOVING HEAD FIXTURE LOT OF 4 USED UNITS
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on February 19, 2014 - Viewed 246 times

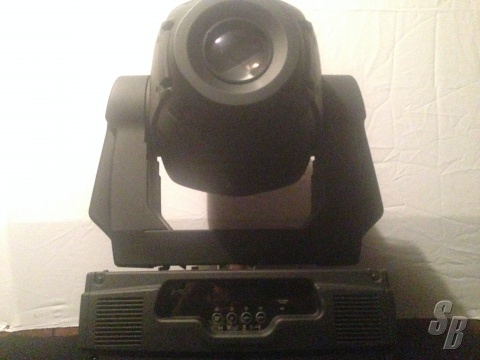

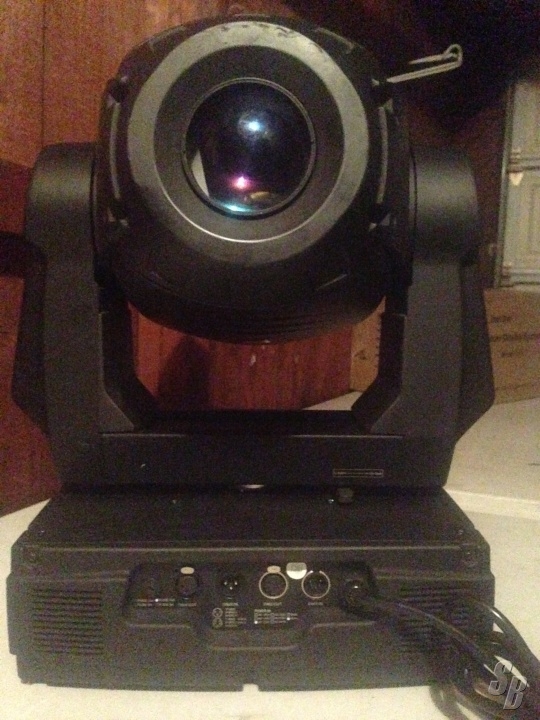

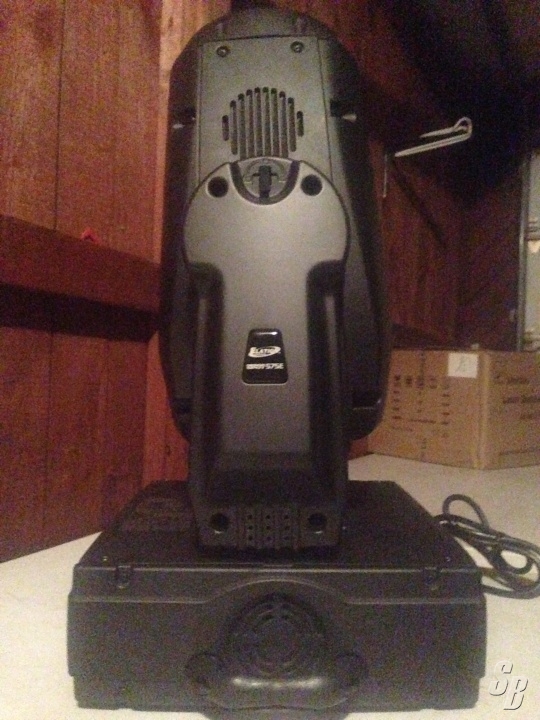

ELATION DESIGN SPOT 575E (YOM: 1998) (S#: TBD) LIKE NEW (9-10)

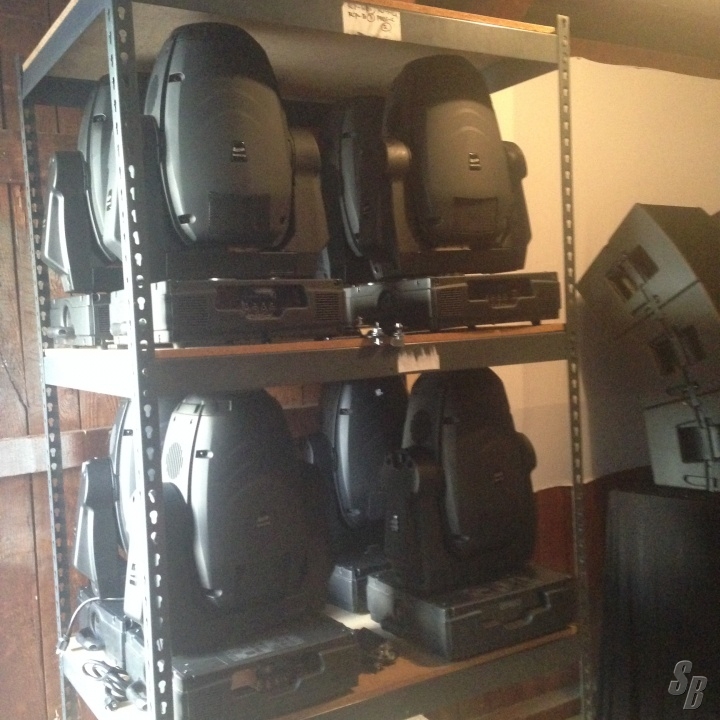

FEATURES: FOR SALE 4 UNITS DESIGN SPOT 575E DMX FEATURES USED CONDITION :

HIGH END LIGHTING EFFECTS MEANS HIGH END SHOWS. CALL OR CLICKTODAY TO ORDER.
THE DESIGN SPOT 575E DMX IS AN EXTREMELY BRIGHT 575-WATT DISCHARGE INTELLIGENTMOVING HEAD SPOT & WASH IN ONE, FEATURING 7 DICHROIC COLORS PLUS WHITE, 2GOBO WHEELS (12 TOTAL GOBOS, 6 METAL, 6 GLASS), AND 1 ROTATING ANIMATION WHEEL.THE LIGHT INCLUDES 24 DMX CHANNELS WITH REMOTE DMX ADDRESSING AND 32-CHARACTERLCD DISPLAY. THE DESIGN SPOT 575E DMX INCLUDES INCREDIBLE FEATURES FOR SETTINGSHUTTER/DIMMER, IRIS, FROST, PRISM, FOCUS, ZOOM, PAN AND TILT MAKING IT AHIGHLY VERSATILE EFFECT FOR CLUBS AND OTHER VENUES. HIGH QUALITY PHILIPS LAMP,OMEGA BRACKETS FOR RIGGING.CONTROL FEATURES
RDMX - REMOTE DMX ADDRESSING
USITT DMX-512 (16-BIT RESOULTION)
24 DMX CHANNELS
32-CHARACTER LCD DISPLAY
ON BOARD MENU SETTINGS
3-PIN XLR SERIAL INPUT/OUTPUT
SOUND ACTIVE MODE

OPTICAL SYSTEM
HIGH OUTPUT LUMINOUS-PARABOLIC DICHROIC REFLECTOR
15° TO 30° LINEAR ZOOM
ALL LENSES ARE ANTI-REFLECTION COATED
29,700 LUX @ 2.5M

COLORS
FULL COLOR MIXING WITH CMY FLAG SYSTEM
8 DICHROIC FILTERS, 7 COLOR, UV + WHITE
CONTINUOUS, VARIABLE SPEED, COLOR SCROLLING IN BOTH DIRECTIONS (RAINBOW EFFECT)
MORE COLOR COMBINATIONS POSSIBLE BY OVERLAYING THE MULTI-COLOR DICHROIC GOBOAND THE COLORS ON THE COLOR WHEEL

GOBOS
2 GOBO WHEELS, 12 TOTAL GOBOS, 6 METAL, 6 GLASS
6 INTERCHANGEABLE, INDEXABLE, ROTATING GOBOS PLUS OPEN
6 INTERCHANGEABLE, INDEXABLE, ROTATING GOBOS PLUS OPEN
METAL GOBO SIZE: 26.9MM OUTSIDE DIAMETER, 23MM IMAGE DIAMETER
GLASS GOBO SIZE: 26.7MM OUTSIDE DIAMETER, 23MM IMAGE DIAMETER
GOBO OVERLAY (GOBO MORPHING)

ANIMATION
1 ROTATING ANIMATION WHEEL

SHUTTER/DIMMER
VARIABLE SPEED STROBE EFFECT (1-13) FLASHES PER SECOND
PRE-SET VARIABLE/RANDOM STROBE AND DIMMING PULSE EFFECT
DUAL FLAG MECHANICAL DIMMING SYSTEM

IRIS
BEAM NARROW TO WIDE (5% - 100%)
VARIABLE SPEED IRIS MACROS
SMALL TO LARGE AND LARGE TO SMALL

FROST
VARIABLE FROST CONTROL
HARD EDGE TO SOFT EDGE

PRISM
3-FACET ROTATING/INDEXING PRISM
BOTH DIRECTIONS AT VARIABLE SPEEDS
MACRO-FUNCTION FOR ROTATING GOBOS/ROTATING PRISM COMBINATIONS

FOCUS
MOTOR DRIVEN FOCUS FROM NEAR TO FAR

ZOOM
15 - 30 DEGREE LINEAR ZOOM

LAMP
PHILLIPS MSR 575/2 SADE (575W, 8500°K, 1500 HRS)

PAN/TILT
AUTOMATIC PAN / TILIT POSITION CORRECTION
MAXIMUM PAN-MOVEMENT 630° IN 2.0 SECS (DEFAULT) OR 540° (USER SELECTABLE) / 16BIT
MAXIMUM TILT-MOVEMENT 265° IN 1.5 SECS / 16 BIT
VECTOR MODE WITH BLACKOUT

RIGGING
2 X 1/4 TURN OMEGA BRACKETS

POWER SUPPLY
ELECTRONIC BALLAST
VOLTAGE 90- 240VAC 50/60HZ
POWER CONSUMPTION: 600W (120V = 7A)

EXTRAS: MINT CONDITION!!!!... VERY LOW WORKING HOURS!!!!!

MODIFICATIONS: NO MODIFICATION

HISTORY: CLUB USED TIME

• ELATION DESIGN SPOT 575E MACHINE ON TIME 00006 HOUR
• ELATION DESIGN SPOT 575E MACHINE ON TIME 00063 HOUR
• ELATION DESIGN SPOT 575E MACHINE ON TIME 00133 HOUR
• ELATION DESIGN SPOT 575E MACHINE ON TIME 00378 HOUR

COMMENTS: MINT CONDITION!!!!

THIS UNIT WAS NEVER TOURED
