ELATION PLATINIUM SPOT 35 PRO. PACKAGE OF TWO WITH CASE
[PRICED PER UNIT - 3 AVAILABLE AT TIME OF LISTING]
Listing last update on October 19, 2016 - Viewed 276 times

ELATION PLATINIUM SPOT 35 PRO (YOM: 2015) (S#: TBD) LIKE NEW IN ORIGINAL PACKAGING (10)

FEATURES: WE ARE SELLING 3 ELATION PLATINUM SPOT 35 PRO, THEY ARE IN GOOD CONDITION AND STILL WITH THE FACTORY WARRANTY.

WE ARE SELLING IT IN PAIR WITH THE ROAD CASE. ( X2 WITH THE CASE)

THE BUYER IS RESPONSABLE FOR ALL SHIPPING COST. LOCAL OR INTERNATIONAL

PART OF THE PLATINUM SERIES

THE NEW PLATINUM SPOT 35 PRO™ FEATURES AN 800W PLATINUM 35 LAMP, MOTORIZED 8° TO 50° ZOOM AND FOCUS, BI-DIRECTIONAL ANIMATION, 3 FACET ROTATING PRISM AND FROST EFFECTS, HIGH SPEED MECHANICAL SHUTTER, STROBE, AND IRIS, (8) COLORS INCLUDING UV, CTO, PLUS CTB AND WHITE, CMY COLOR MIXING, (12) INTERCHANGEABLE, ROTATING, INDEXING, GLASS GOBOS, INTERNAL EWDMX WIRELESS DMX RECEIVER, RDM (REMOTE DEVICE MANAGEMENT) PROTOCOL SUPPORT, 3PIN AND 5PIN DMX IN/OUT AND POWERCON IN CONNECTIONS, (6) BUTTON TOUCH CONTROL PANEL, 1,200W MAX POWER CONSUMPTION, AND A MULTI-VOLTAGE UNIVERSAL AUTO SWITCHING POWER SUPPLY (120-240V).

FEATURES
1200 WATT COMPARABLE LUMENS OUTPUT
MOTORIZED 8° - 50° ZOOM AND FOCUS
BI-DIRECTIONAL ANIMATION, 3-FACET PRISM, AND FROST EFFECTS
CMY COLOR MIXING, CTO AND CTB COLOR CORRECTION
INTERNAL EWDMX WIRELESS DMX RECEIVER
RDM - REMOTE DEVICE MANAGEMENT

SOURCE
800-WATT PLATINUM 35 LAMP
>20,000 LUMEN, 7,800K, >75 CRI
750 HOUR AVERAGE LIFE

PHOTOMETRIC DATA
76,880 LUX 7,142 FC @16.4FT (5M) (8° MIN ZOOM FULL ON)
2,725 LUX 253 FC @16.4FT (5M) (50° MAX ZOOM FULL ON)

EFFECTS
BI-DIRECTIONAL ANIMATION EFFECT
3-FACET ROTATING-INDEXING PRISM AND FROST FILTER
MECHANICAL DIMMING: 0% - 100%
HIGH SPEED MECHANICAL SHUTTER / STROBE / IRIS

COLOR
8 INTERCHANGEABLE DICHROIC COLORS INCLUDING UV
CMY COLOR MIXING
CTO & CTB COLOR CORRECTION

GOBOS
(2) ROTATING GOBO WHEELS
(12) INTERCHANGEABLE / ROTATING / INDEXING GLASS GOBOS

CONTROL / CONNECTIONS
(3) DMX CHANNEL MODES (27 / 29 / 41)

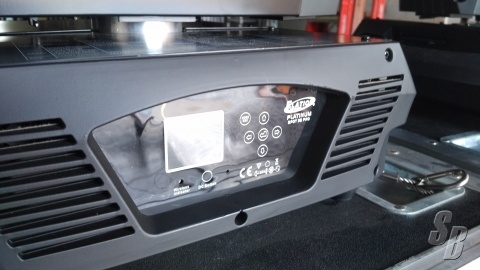

6 BUTTON TOUCH CONTROL PANEL
FULL COLOR 180° REVERSIBLE LCD MENU DISPLAY
16 BIT RESOLUTION ADJUSTABLE MOVEMENT
3PIN AND 5PIN DMX IN/OUT
POWERCON POWER IN

SIZE / WEIGHT
LENGTH: 17.6” (447MM)
WIDTH: 20.0” (507MM)
VERTICAL HEIGHT: 28.6” (727MM)
WEIGHT: 79.0 LBS. (36 KG)

ELECTRICAL / THERMAL
AC 100-240V - 50/60HZ
1,200W MAX POWER CONSUMPTION
14°F TO 113°F (-10°C TO 45°C)

APPROVALS / RATINGS
CE | CETLUS | ROHS | IP20

INSTALLATION
RIGGING: CLAMPS (NOT INCLUDED)
WORKING POSITION: FLAT SURFACE / INVERTED (180°)

INCLUDED ITEMS
(2) OMEGA BRACKETS
(1) 3PIN DMX CABLE
(1) SAFETY CABLE
(1) POWERCON CABLE

OPTIONAL ACCESSORIES:

CLAMPS (CLICK FOR MORE INFO)

PRO CABLES (CLICK FOR MORE INFO)

DMX SOLUTIONS (CLICK FOR MORE INFO)

SPECIFICATIONS AND DOCUMENTATION SUBJECT TO CHANGE WITHOUT NOTICE.

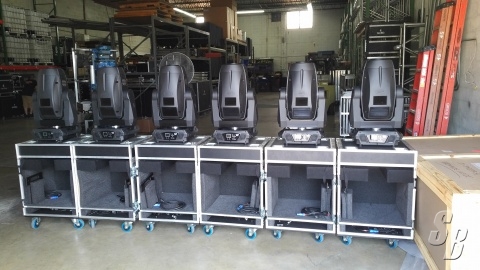

EXTRAS: CASES, CABLES, CLAMPS

MODIFICATIONS: NO

HISTORY: CORPORATE EVENTS

COMMENTS: NON

THIS UNIT WAS NEVER TOURED
