PACKAGE OF 5 EA ELATION VISIONSCAN 575E
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on February 12, 2013 - Viewed 186 times

PACKAGE OF 5 EA. ELATION VISIONSCAN 575E (YOM: ?) (S#: 0166613) SUPERB (8-9)

FEATURES: CONTROL FEATURES
• USITT DMX-512 (16-BIT RESOLUTION)
• PAN 170º/TILT 80º
• 16 DMX CHANNELS
• 4 DIGIT L.E.D. DISPLAY
• 3 PIN XLR SERIAL INPUT/OUTPUT

OPTICAL SYSTEM
• REMOTE FOCUS VIA DMX
• HIGH OUTPUT LUMINOUS-PARABOLIC DICHROIC REFLECTOR

BEAM FEATURE
• 20º, 22º & 24º BEAM ANGLE

COLOR FEATURES
• 8 COLORS + WHITE
• UV FILTER
• COLOR SCROLL
• SPLIT COLORS

GOBO FEATURES
• 16 GOBOS ON 2 WHEELS
• CONVENIENT SLOT-LOCK GOBO REPLACEMENT SYSTEM
• GOBO SHAKE EFFECT
• GOBO SCROLL
• WHEEL 1: 6 INTERCHANGEABLE ROTATING/INDEXING GOBOS, 3 LITHOGRAPHIC, 1 GLASS, 3 METAL
• WHEEL 2: 7 INTERCHANGEABLE STATIC METAL GOBOS
• GOBO SIZE WHEEL 1: 22MM X 23MM VIEWING X 4MM THICKNESS
• GOBO SIZE WHEEL 2: 22MM X 23MM VIEWING METAL ONLY

EFFECT FEATURES
• 3-FACET PRISM ROTATING IN BOTH DIRECTIONS AT VARIABLE SPEEDS
• GOBO OVERLAYING

SHUTTER/DIMMER FEATURES
• MECHANICAL DIMMING 0-100%
• MECHANICAL HIGH SPEED SHUTTER & PULSE EFFECT

SPECIAL DMX-CONTROL FEATURES
• 16 PAN/TILT PREPROGRAMMED MOVEMENTS VIA DMX
• BUILT-IN PROGRAMS VIA DMX
• PAN/TILT/GOBO/COLOR & PRISM SET TO SOUND ACTIVE MODE VIA DMX

STAND-ALONE FEATURES
• SOUND ACTIVATED BUILT IN PROGRAMS
• SENSITIVITY KNOB
• LINKABLE UP TO 16 UNITS
• SELF TEST & STAND ALONE SETTINGS
• BUILT-IN MICROPHONE WITH SENSITIVITY KNOB

TECHNICAL SPECIFICATIONS
• LAMP: PHILLIPS MSR-575/2 (575W, 7200ºK, 1000HRS)
• DIMENSIONS: 13.75” X 15.5”W X 30.5”H
• WEIGHT: 65LBS
• FUSE: 10A
• VOLTAGE: 120V/220V (50/60HZ)
• POWER CONSUMPTION: 700VA
• FAN COOLED 1 AXIAL FAN

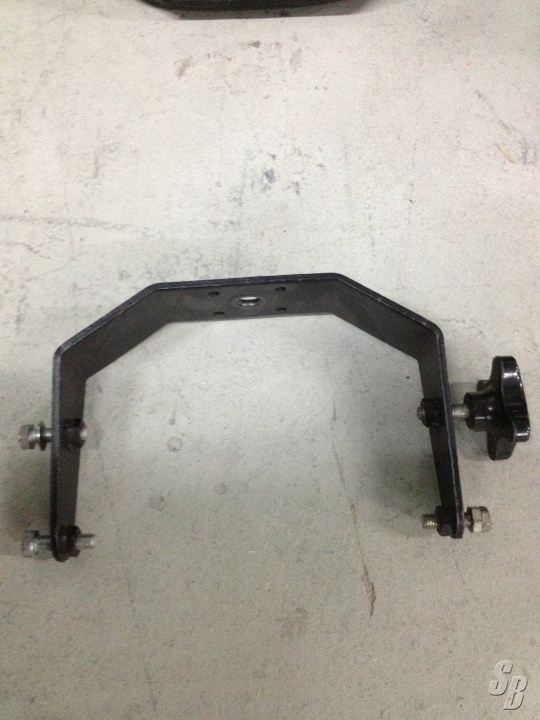

EXTRAS: EACH FIXTURE COMES WITH LAMP (BULB) AND YOKE (MOUNTING BRACKET).

MODIFICATIONS: NO

HISTORY: REGIONAL SOUND COMPANY USAGE

COMMENTS: NO

THIS UNIT WAS NEVER TOURED
