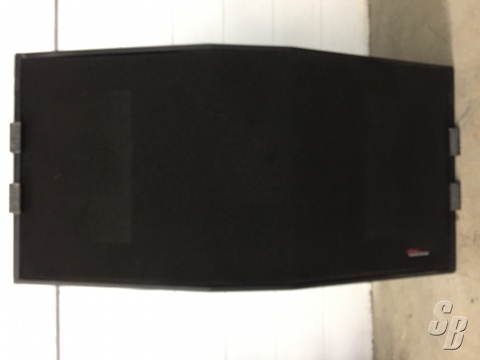

For Sale: APOGEE ALA9 LINE ARRAY CABINETS (PAIR)
[PRICED PER UNIT - 5 AVAILABLE AT TIME OF LISTING]
Listing last update on January 05, 2017 - Viewed 508 times

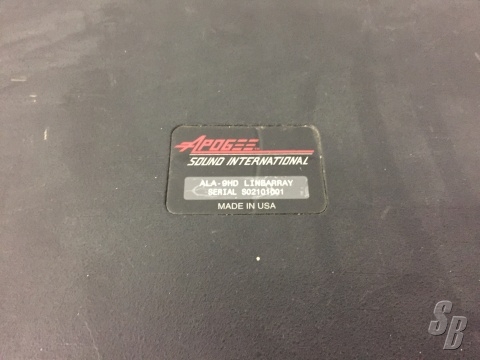

APOGEE ALA-9 (YOM: ?) (S#: TBD) GOOD (7-8)

FEATURES: THE TRI-AMPED ALA-9 IS THE LARGEST OF THE ALA SERIES. IT HAS AN EXTREMELY HIGH POWER CAPABILITY, MAKING IT IDEALLY SUITED FOR APPLICATIONS REQUIRING HIGH SPL CAPABILITY, SUCH AS ROCK CONCERTS,SPORTING EVENTS, AND OUTDOOR PAGEANTRY.

DRIVER COMPLEMENT:

LOW FREQUENCY: DUAL APOGEE 15" (381 MM) NEODYMIUM MAGNET
CONE- TYPE DRIVERS, FERROFLUID® COOLED 4" (102MM) VOICE COILS; CONE
TREATED WITH A WATERPROOFING COMPOUND, PROVIDING RESISTANCE TO
MOISTURE, AND ENABLING LONG-TERM STABILITY OF CONE RESONANCE AND
CONE MASS PARAMETERS

MID FREQUENCY: DUAL APOGEE 10" (254MM) PERMANENT MAGNET CONETYPE
DRIVERS ARE TREATED WITH FERROFLUID AND A WATERPROOFING
COMPOUND, PROVIDING RESISTANCE TO MOISTURE AND ENABLING LONG-TERM
STABILITY OF CONE RESONANCE AND CONE MASS PARAMETERS

HIGH FREQUENCY: THREE APOGEE 2" (51 MM) THROAT COMPRESSION
DRIVERS TREATED WITH FERROFLUID FOR GREATER POWER HANDLING CAPABILITY,
LOWER DISTORTION, AND CONTROL OF SHORT-TERM IMPEDANCE RISE

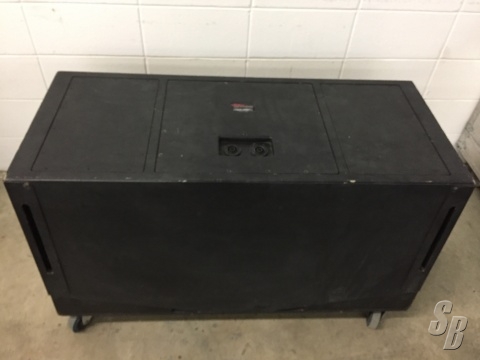

INPUT CONNECTORS:
NEUTRIK™ NL8MP SPEAKON™

ENGINEERING DATA:
DESCRIPTION:
FORMAT:
TRI-AMPED/THREE-WAY/HORN-LOADED MF AND
HF/ELECTRONICALLY-COUPLED
DISPERSION:
ALA-9W H: 90° X V: 10°
FREQUENCY RESPONSE (1M ON AXIS):
45 HZ TO 17.5 KHZ + 3 DB
MAX. SPL (@1M):
136 DB CONT./142 DB PEAK
PTML (PEAK TRANSIENT MECHANICAL LIMIT):
153 DB
SENSITIVITY (1 W @ 1 M):
LF: 100 DB SPL MF: 108 DB SPL HF: 112 DB SPL
NOMINAL IMPEDANCE:
LF: 8 OHMS X 2 MF: 4 OHMS HF: 4 OHMS
MAX. POWER HANDLING:
LF: 1200W CONT./4800W PEAK
MF: 600W CONT./2400W PEAK
HF: 450W CONT./1800W PEAK
DIMENSIONS:
FRONT: 47"(1194MM) W X 24"(610MM) H
REAR: 47"(1194MM) W X 20.1"(511MM) H
DEPTH: 22.7"(577MM)
WEIGHT:
255 LB. (116 KG) WITHOUT RIGGING BARS

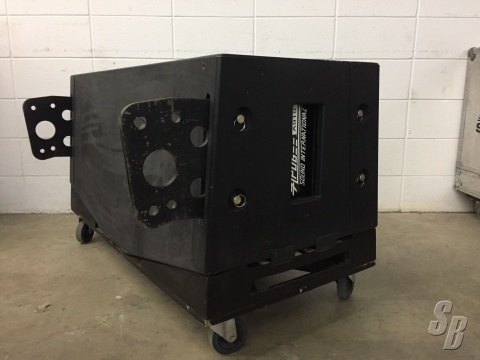

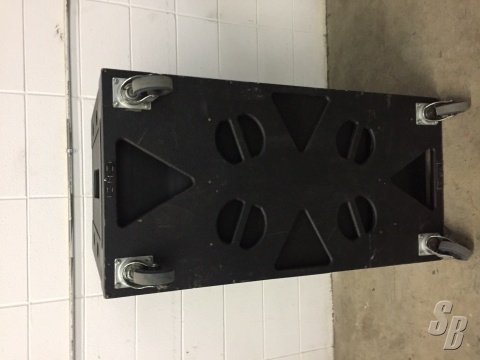

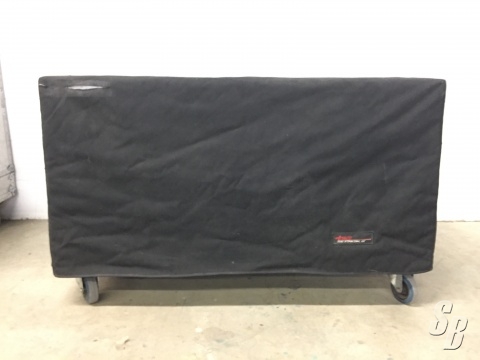

EXTRAS: COMES WITH TOURING PACKAGE. WHEEL DOLLIES AND COVERS.

MODIFICATIONS: THESE BOXES HAD ALL OF THEIR 15" DRIVERS REPLACED FROM MCCAULEY TO ELECTRO VOICE EVX-150'S.

HISTORY: THESE BOXES WERE USED IN INSTALLS, AND TOURED.

COMMENTS: ALL UNITS ARE TESTED FOR INTEGRITY BEFORE THEY ARE SHIPPED OUT THE DOOR.

THIS UNIT WAS TOURED
