D&B AUDIOTECHNIK SYSTEM WITH (5) T-10 SPEAKERS 1 D6 AMP, 3 TRAVEL CASES, 5 TV SPIGOTS & 4 PIPE CLAMPS
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on September 28, 2023 - Viewed 853 times

D&B AUDIOTECHNIK (5) T-10, D6 (YOM: 2011) (S#: SEE BELOW) LIKE NEW (9-10) FEATURES:

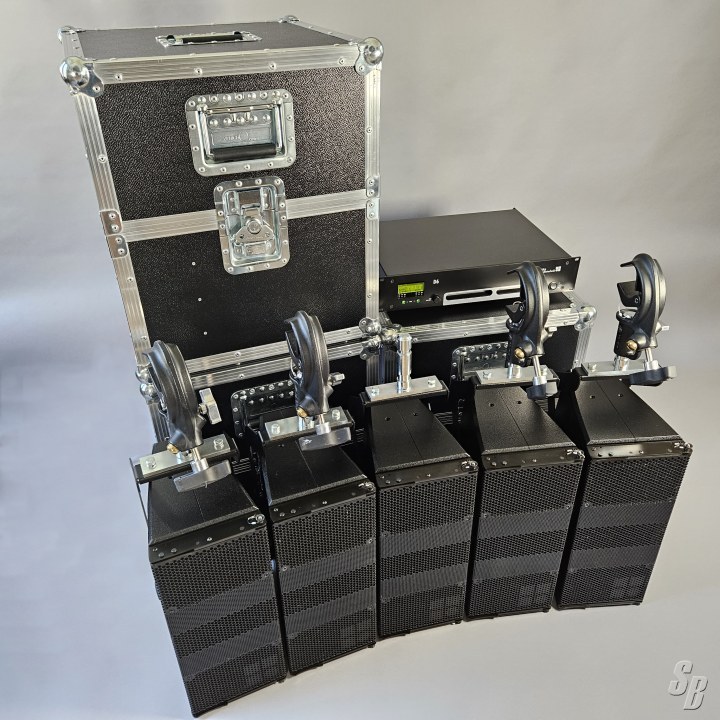

THE ITEMS FOR SALE INCLUDE THE FOLLOWING ITEMS WHICH ARE SHOWN IN THE IMAGES IN THIS LISTING:

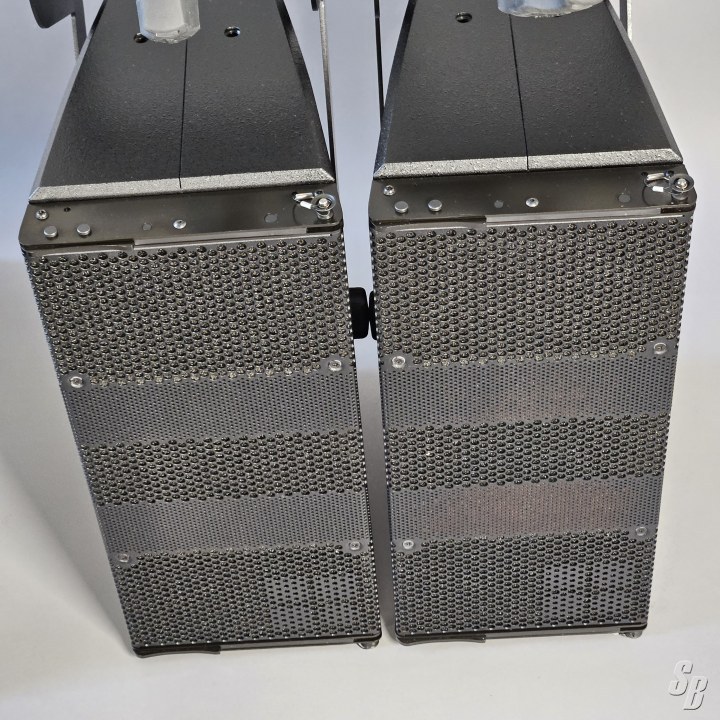

5 - D&B AUDIOTECHNIK T-10 SPEAKERS

1 - D&B AUDIOTECHNIK D6 AMPLIFIERS

4 - D&B AUDIOTECHNIK Z5371 T FLYING BRACKETS

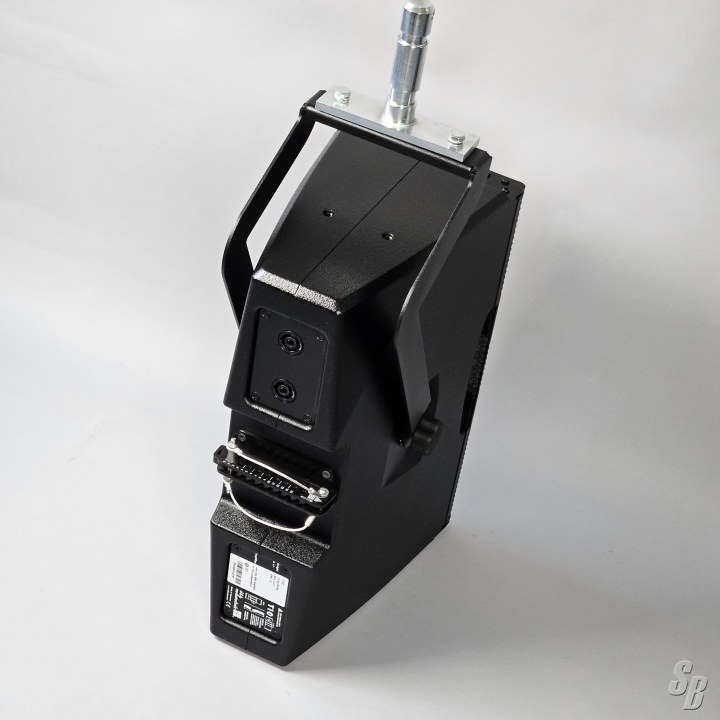

5 - D&B AUDIOTECHNIK Z5010 TV SPIGOTS WITH FIXING PLATES

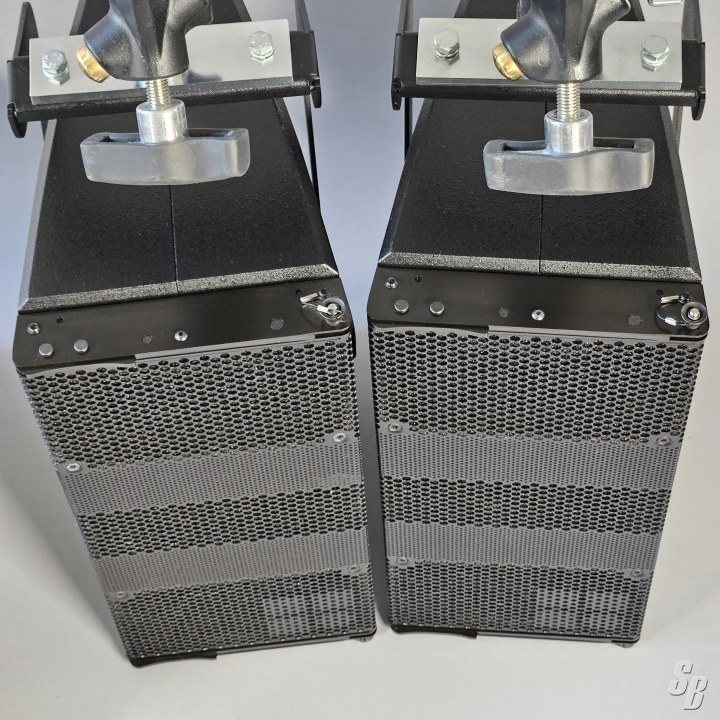

4 - D&B AUDIOTECHNIK Z5012 TV PIPE CLAMPS FOR TV SPIGOTS

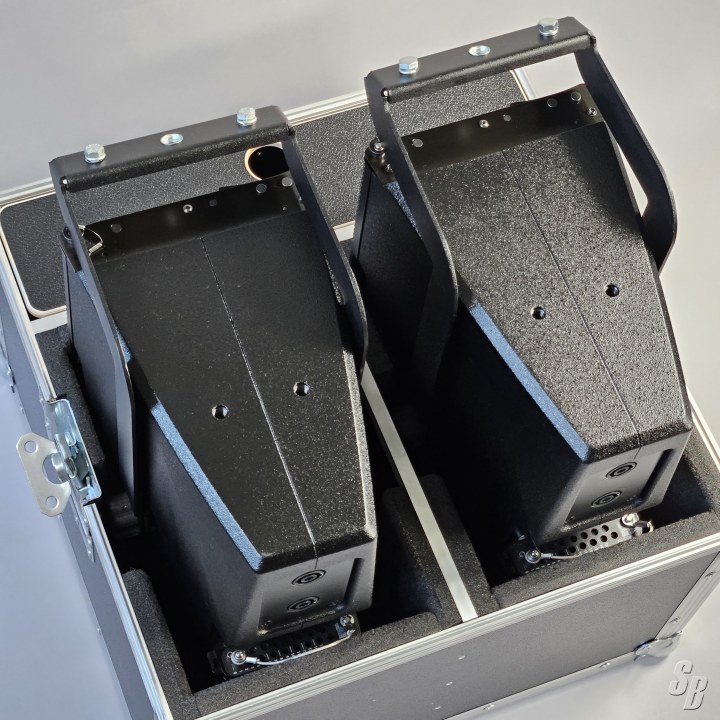

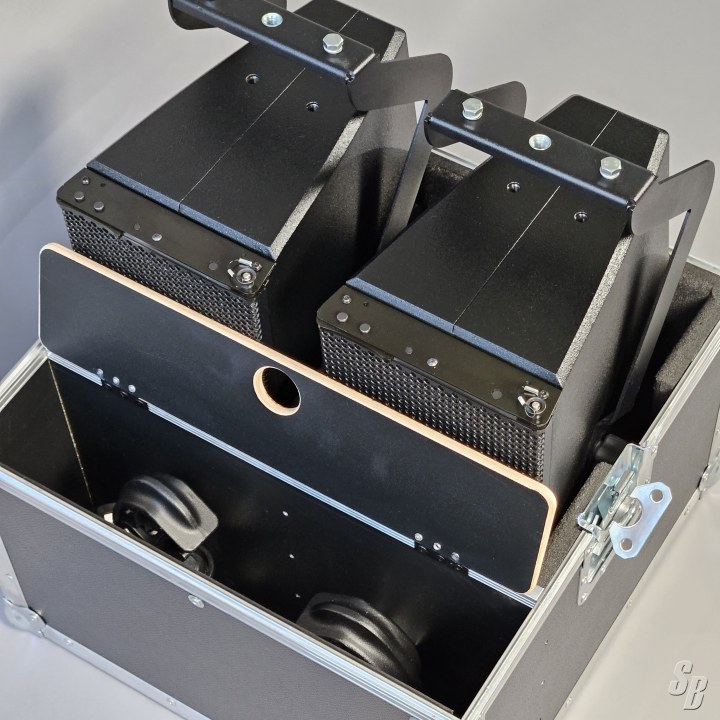

3 - D&B AUDIOTECHNIK Z7452 TOURING CASES 2 X T10 LID

EXTRAS:

THIS SALE COMES WITH ALL THE ITEMS LISTED ABOVE.

MODIFICATIONS:

NONE

HISTORY:

WE HAVE A LARGE INVENTORY OF EQUIPMENT THAT HAS ONLY BEEN USED FOR OUR OWN PRESENTATIONS AT TRADE SHOWS. THIS EQUIPMENT HAS NEVER BEEN RENTED OR USED BY OTHERS. WE ARE REFRESHING ALL OF OUR SOUND EQUIPMENT SO THAT IS WHY OUR D&B AUDIOTECHNIK COMPONENTS ARE AVAILABLE FOR SALE HERE.

COMMENTS:

AS SHOWN IN THE PHOTOS, THIS EQUIPMENT IS IN EXCELLENT CONDITION.

THIS UNIT WAS NEVER TOURED

PRODUCT DESCRIPTIONS:

T10 LOUDSPEAKER

THE T10 IS A PASSIVE 2-WAY LOUDSPEAKER HOUSING TWO 6.5" DRIVERS POSITIONED IN A DIPOLAR ARRANGEMENT AND A 1.4" HF COMPRESSION DRIVER AND A PASSIVE CROSSOVER NETWORK. THE T10 CAN BE USED BOTH AS A LINE ARRAY AND AS A HIGH DIRECTIVITY POINT SOURCE LOUDSPEAKER. THE HF DRIVER IS FITTED TO A UNIQUE WAVEGUIDE HORN PRODUCING VERTICAL LINE SOURCE DIRECTIVITY WITH A 90° HORIZONTAL PATTERN THAT IS MAINTAINED DOWN TO APPROXIMATELY 600 HZ.

B4-SUB

THE B4-SUB IS AN ACTIVELY DRIVEN CARDIOID SUBWOOFER POWERED BY A SINGLE AMPLIFIER CHANNEL. IT HOUSES TWO LONG EXCURSION NEODYMIUM DRIVERS IN AN INTEGRATED CARDIOID SETUP: A 15" DRIVER IN A BASS-REFLEX DESIGN FACING TO THE FRONT AND A 12" DRIVER IN A TWO CHAMBER BANDPASS DESIGN RADIATING TO THE REAR. THE CARDIOID DISPERSION PATTERN RESULTING FROM THIS APPROACH AVOIDS UNWANTED ENERGY BEHIND THE SYSTEM THAT GREATLY REDUCES THE REVERBERANT FIELD AT LOW FREQUENCIES AND PROVIDES THE GREATEST ACCURACY OF LOW FREQUENCY REPRODUCTION. THE B4 SUBWOOFER CAN ONLY BE USED IN A GROUND STACKED SETUP. THE B4-SUB CABINET IS CONSTRUCTED FROM MARINE PLYWOOD, HAS AN IMPACT AND WEATHER RESISTANT PAINT FINISH AND A PAIR OF HANDLES. AN M20 THREADED FLANGE IN THE TOP PANEL ACCEPTS THE D&B LOUDSPEAKER STAND WINDER M20. THE LOUDSPEAKER CABINET IS ALSO AVAILABLE IN SPECIAL COLOUR (SC) OPTIONS.

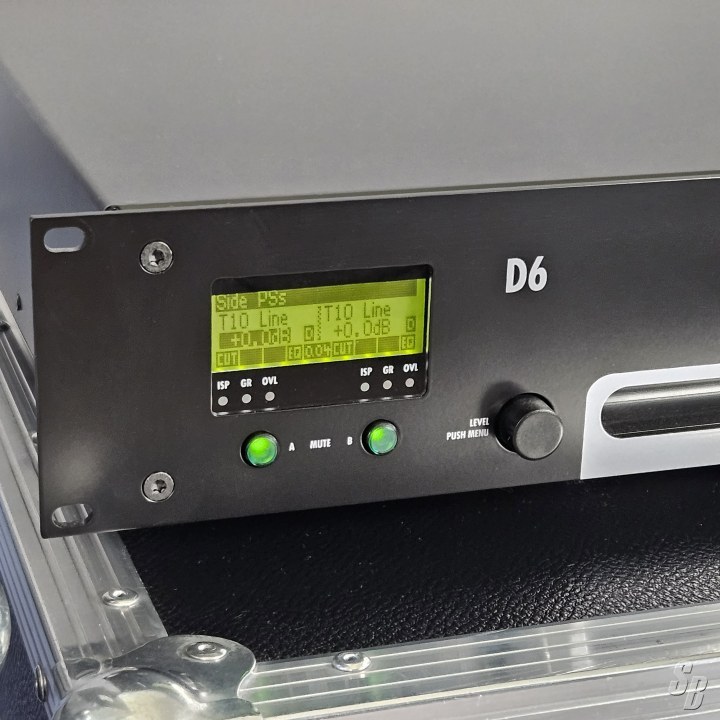

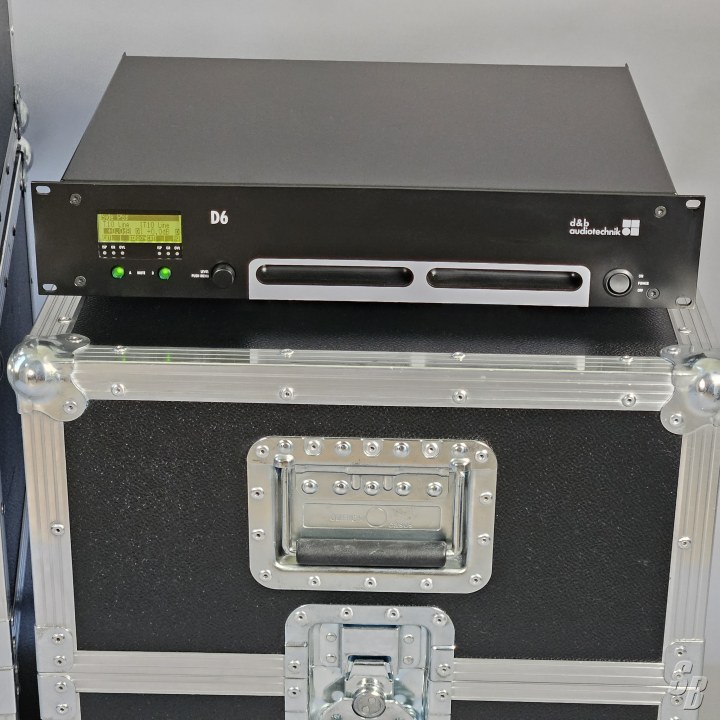

D6 AMPLIFIER
THE 2 RU TWO CHANNEL LIGHTWEIGHT D6 AMPLIFIER DELIVERS MEDIUM POWER INTO LOW IMPEDANCE LOADS BETWEEN 4 AND 16 OHMS AND IS IDEALLY SUITED FOR USE IN BOTH MOBILE AND INSTALLATION ENVIRONMENTS. THE D6 CONTAINS CONFIGURATIONS FOR D&B LOUDSPEAKERS AND A LINEAR MODE; EXCEPTIONS ARE 2-WAY ACTIVE, A-SERIES, J-SERIES, SL-SERIES, V-SERIES, B22-SUB AND M2.
