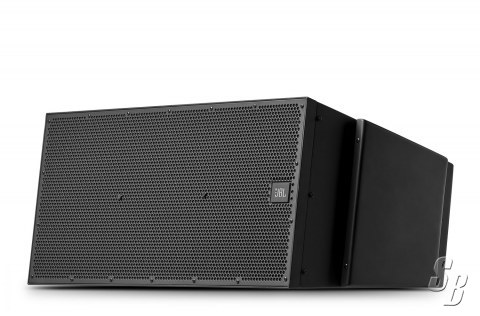

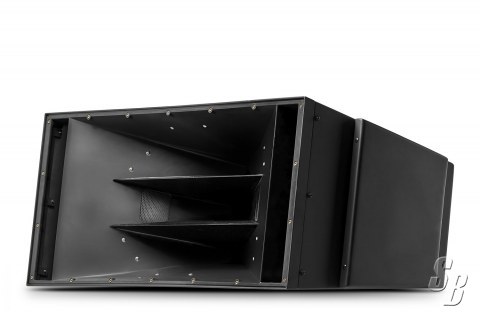

THE VLA-C2100 USES JBL PROVEN TECHNOLOGY COMPONENTS. THE HIGH FREQUENCY SECTION IS HORN-LOADED FOR MAXIMUM SENSITIVITY AND OPTIMUM PATTERN CONTROL AND FEATURES THREE D2415 DRIVERS FEATURING 1.5” DIAMETER ANNULAR DIAPHRAGMS, 1.5” VOICE COILS, AND NEODYMIUM MOTORS.
THE LOW-FREQUENCY SECTION UTILIZES DUAL 2261 10” DIFFERENTIAL DRIVE® 3” VOICE COIL DRIVERS.

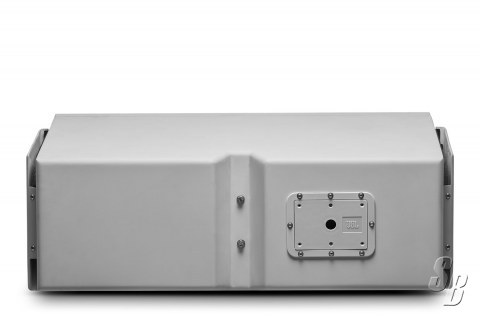

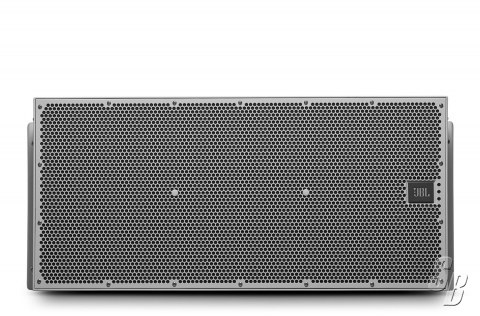

ENCLOSURES FEATURE MULTI-LAYER REINFORCED FIBERGLASS AND STEEL END-PANELS. GRILLES ARE ZINC PLATED, POWDER COATED 14-GAUGE PERFORATED STEEL WITH AN ACOUSTICALLY TRANSPARENT BLACK GRILL CLOTH BACKING, A HYDROPHOBIC MESH UNDERLAYER, AND A WATERPROOF RAIL SYSTEM.
THE RIGGING SYSTEM IS INHERENT TO THE DESIGN OF THE SYSTEM. INTER-BOX ANGLES ARE SELECTED WHEN THE ARRAY IS ASSEMBLED. OTHER ACCESSORIES INCLUDE A RIGGING FRAME, PULL-BACK BAR, AND A CARDIOID KIT FOR THE SUB.
