ID # 95931 CURRENT CATEGORY - SPEAKERS/LINE ARRAY
L'ACOUSTIC DV-DOSC LINE ARRAY
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on March 10, 2017 - Viewed 290 times

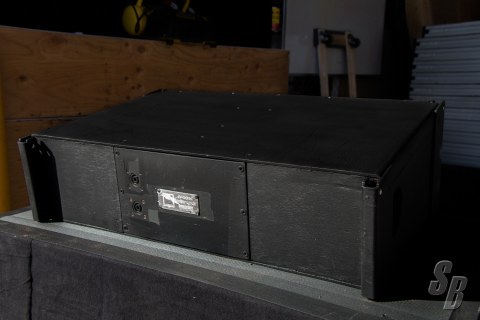

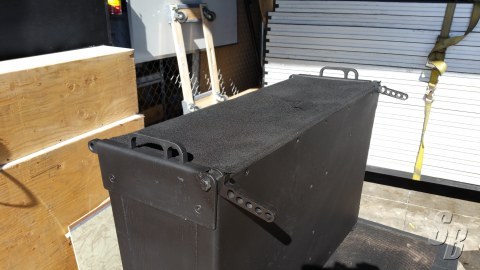

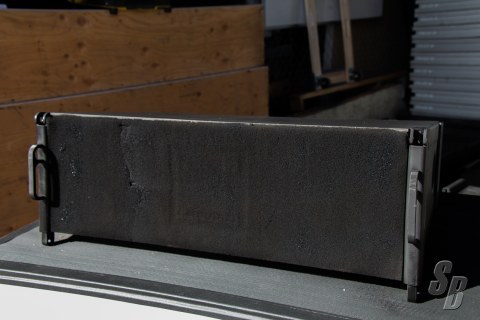

Click on thumbnail to enlarge
Asking Price:
SOLD
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
L ACOUSTIC DV-DOSC (YOM: ?) (S#: TBD) GOOD (7-8)
FEATURES: 20 DV-DOSC SPEAKERS
2 LINE ARRAY BRACKETS
36 SPACERS
FREQUENCY RESPONSE
FREQUENCY RESPONSE 160 - 18K HZ (±3 DB) (2W 75HI PRESET)
USABLE BANDWIDTH 100 - 20K HZ (-10 DB)
SENSITIVITY
LF (2.83 VRMS @ 1M) 99 DB SPL 100 - 800
HZ HF (2.83 VRMS @ 1M) 109 DB SPL 800 - 18K HZ
POWER RATING
(LONG TERM)
LF 55 VRMS, 380 WRMS, 1520 WPEAK AMPLIFICATION: 760 W IMPEDANCE: 8 OHMS
HF 23 VRMS, 66 WRMS, 260 WPEAK AMPLIFICATION: 260 W IMPEDANCE: 8 OHMS
NOMINAL DIRECTIVITY (-6DB)3
HORIZONTAL SYMMETRICAL 120°
VERTICAL DEFINED BY THE ARRAY
SYSTEM OUTPUT4
ONE ENCLOSURE
CONTINUOUS SPL FLAT ARRAY: 127DB, CONTINUOUS SPL MAX CURVE ARRAY: 127DB.
TWO ENCLOSURES
CONTINUOUS SPL FLAT ARRAY: 133DB, CONTINUOUS SPL MAX CURVE ARRAY: 131DB 15° VERTICAL COVERAGE.
FOUR ENCLOSURES
CONTINUOUS SPL FLAT ARRAY: 139DB, CONTINUOUS SPL MAX CURVE ARRAY: 135DB 30° VERTICAL COVERAGE.
COMPONENTS
LF 2 X 8" WEATHER-RESISTANT LOUDSPEAKER (2" VOICE COIL)
HF 1 X 1.4" NEODYMIUM COMPRESSION DRIVER MOUNTED ON CUSTOM DOSC WAVEGUIDE AND ACOUSTIC LENS
EXTRAS: NONE
MODIFICATIONS: NONE
HISTORY: WAS USED AT AN OUTDOOR PERFORMING ARTS CENTER.
COMMENTS: ARRAY IS COSMETICALLY WORN, BUT 100% FUNCTIONAL. GREAT SPEAKERS.
THIS UNIT WAS NEVER TOURED
| Additional Details | |
| ID#: | 95931 |
| Listing Type: |
Standard
|
| Model: | DV-DOSC |
| Manufacturer: | L ACOUSTIC |
| Condition: | GOOD (7-8) |
| Shipping Info: | 0.00 lbs., |
| Seller's Location: | UT, USA |
| Updated: | March 10, 2017 |
| M.S.R.P.: | $0.00 |
| Asking Price: | SOLD |
