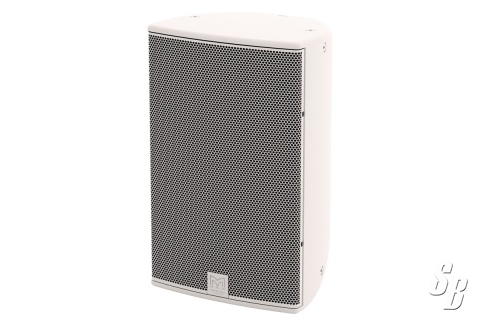

MARTIN CDD12W COMPACT COAXIAL DIFFERENTIAL DISPERSION SYSTEM WHIE
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on January 05, 2016 - Viewed 169 times

MARTIN CDD12B COMPACT COAXIAL DIFFERENTIAL DISPERSION SYSTEM, WHITE

THE CDD12 IS A COMPACT, PASSIVE TWO-WAY SYSTEM DESIGNED FOR INSTALLATIONS THAT REQUIRE HIGH OUTPUT LEVELS. ITS HIGH-SPECIFICATION 12” (300MM) LF /1” EXIT HF COAXIAL DIFFERENTIAL DISPERSION DRIVER DELIVERS PERFECT SOUND ACROSS THE AUDIENCE OVER MEDIUM-THROW DISTANCES.

THE COAXIAL DIFFERENTIAL DISPERSION TECHNOLOGY EMPLOYED IN THE CDD12 DELIVERS MORE CONSISTENT AUDIENCE COVERAGE THAN SYSTEMS WITH FIXED X° X Y° COVERAGE PATTERNS — PROJECTING RELATIVELY MORE OUTPUT TO THE REAR OF THE AUDIENCE, WHILE HAVING WIDE HORIZONTAL COVERAGE CLOSE-UP. ITS INNOVATIVE CDD DRIVER ACHIEVES ‘POINT SOURCE’ SUMMATION OF THE LF AND HF SECTIONS — ELIMINATING OFF-AXIS VARIATIONS IN FREQUENCY RESPONSE ASSOCIATED WITH NON-COAXIAL DESIGNS. IMPROVING ON CONVENTIONAL COAXIAL DESIGNS, WHICH CAN SUFFER FROM HIGH-FREQUENCY BEAMING, THE DRIVER FEATURES A STATIC WAVEGUIDE THAT MERGES SEAMLESSLY WITH THE UNIQUE CONE SHAPE — MAINTAINING THE DISPERSION PATTERN OUT TO VERY HIGH FREQUENCIES.

THE LF DRIVER HAS A 2.5” (65MM) VOICE COIL AND EFFICIENT MOTOR WITH AN ALUMINIUM DEMODULATING RING TO MINIMISE DISTORTION, WHILE THE HF DRIVER UTILISES A 1.75” (44MM) POLYIMIDE DIAPHRAGM AND FEATURES A LOW-COMPRESSION PHASE-PLUG TO REDUCE NON-LINEARITY.

THE VISUALLY-DISTINCTIVE COMPOSITE ENCLOSURE CAN BE USED IN EITHER HORIZONTAL (LANDSCAPE) OR VERTICAL (PORTRAIT) ORIENTATION, WITH ROTATION OF THE DRIVER EASILY ACCOMPLISHED BY REMOVING THE SCREW-FREE, PROTECTIVE GRILLE. THE CURVED SHAPE OF THE CDD12 ALLOWS IT TO BE SURFACE-MOUNTED CLOSE TO A WALL VIA AN OPTIONAL WALL BRACKET OR SUSPENDED FROM A CEILING BY EYEBOLTS OR A HORIZONTAL YOKE OPTION.

FINISHED IN BLACK (RAL9005) OR WHITE (RAL9016) AS STANDARD, THE CDD12 CAN BE SUPPLIED IN ANY RAL COLOUR TO ORDER.

A FULL-RANGE, PASSIVE TWO-WAY SYSTEM, THE CDD12 MAY BE USED WITHOUT A CONTROLLER. HOWEVER, THE EQ AND LIMITER FUNCTIONS OF A CONTROLLER SUCH AS THE MARTIN AUDIO DX0.5, DX1.5 OR DX2, OR AN MA SERIES AMPLIFIER WITH ONBOARD DSP WILL MAXIMISE ITS CAPABILITIES. WHEN USED WITH A CSX SUBWOOFER, CROSSOVER AND EQ FUNCTIONS CAN EITHER BE PERFORMED BY THE DX0.5, DX1.5 AND DX2 SYSTEM CONTROLLERS, OR BY AN MA SERIES AMPLIFIER WITH ONBOARD DSP OPTION.

MANUFACTURERS A STOCK

BRAND NEW WITH FULL WARRANTY
