14 CHANNEL DIRECT BOX / PRESS BRIDGE - ONE DI INSTEAD OF 14
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on December 06, 2006 - Viewed 295 times

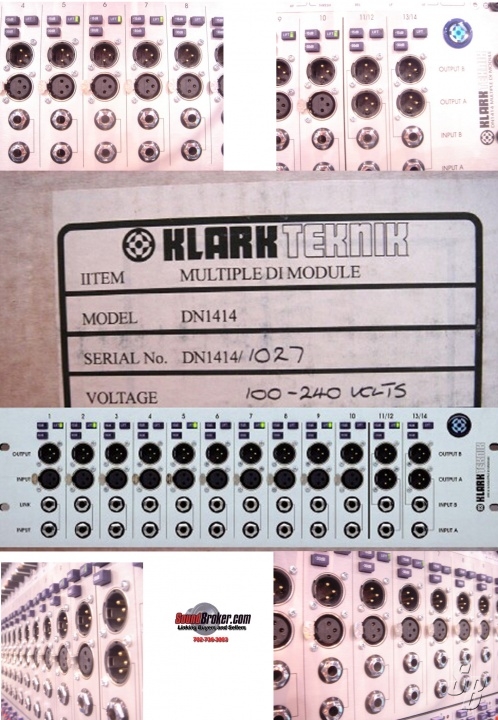

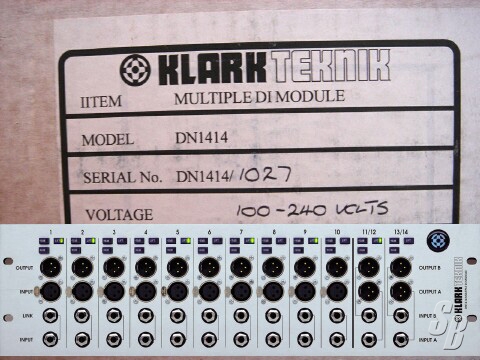

THE DN1414 MULTIPLE DI MODULE OFFERS A COST AND SPACE-EFFECTIVE METHOD OF PROVIDING 14 DISCRETE CHANNELS OF TRANSFORMER-ISOLATED DIRECT INJECTION. HOUSED IN A RUGGED 3U RACK ENCLOSURE, THE DN1414 EMBODIES THE LEGENDARY SOUND AND RELIABILITY OF KLARK TEKNIK.

KEY FEATURES ( CLICK HERE FOR THE MANUAL/SPEC SHEET):

1) TEN MONO CHANNELS WITH XLR AND JACK INPUTS, LINK OUTPUT JACK AND TRANSFORMER -BALANCEDXLROUTPUTS.

2) TWO DUAL CHANNELS WITH JACK INPUTS, LINK OUTPUT JACKS AND TRANSFORMER-BALANCED XLROUTPUTS

3) -30DB PAD, -15 DB ATTENUATION ON ALL CHANNELS.

4) INTERNAL POWER SUPPLY WITH FACTORY OPTION OF BACKUP PSU.

5) FIVE YEAR INTERNATIONAL FACTORY WARRANTY.

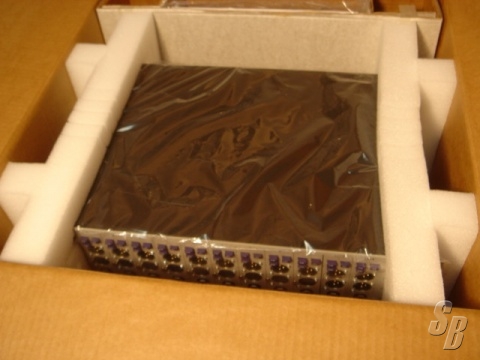

6) COMES NEW IN THE BOX WITH MANUAL.

THE DI MODULE INPUT STAGE USES THE SAME BUFFERED PREAMPLIFIER THAT IS EMPLOYED ON MANY KLARK TEKNIK PRODUCTS AND FEATURES EXCEPTION LOW NOISE AND DISTORTION COMBINED WITH A GENEROUS LEVEL OF HEADROOM, AS WELL AS BEING ABLE TO HANDLE BOTH BALANCED AND UNBALANCED INPUT CONNECTIONS WITHOUT SIGNAL LOSS. THE PARALLEL-CONNECTED XLR ANDTRS JACK INPUTS ON CHANNELS 1-10 ARE DESIGNED TO BE USED ONE AT A TIME, THE XLR INPUT HAS A 20K OHMS INPUT IMPEDANCE, THIS IS SWITCHED OUT WHEN A JACK PLUG IS INSERTED SO THAT GUITARS, ESPECIALLY PASSIVE ONES, CAN BE USED WITHOUT LOSS OF HIGH FREQUENCY SIGNAL CONTENT. THE NOMINAL INPUT IMPEDANCE WHEN USING THE JACK INPUT IS 1MOHMS.A-30DB PAD CAN BE SWITCHED IN FRONT OF THE BUFFER STAGE TO AVOID CLIPPING. AFURTHER SEPARATELY BUFFERED 15 DB ATTENUATOR IS ALSO INCLUDED. THE SEPARATE BUFFERING MEANS THAT THERE WILL BE NO INTERACTION BETWEEN THE PAD AND THE ATTENUATOR WHEN THEY ARE BOTH SWITCHED IN. WITH NEITHER SELECTED, THE SIGNAL PATH IS UNITY GAIN. THE GAIN RANGE IS ADEQUATE TO ACCOMMODATE MOST KEYBOARDS, SOUND MODULES, INSTRUMENT PREAMPLIFIER OUTPUTS AND ACTIVE AND PASSIVE GUITARS AND BASSES.

THE KLARK TEKNIK DN1414 IS AN EXTREMELY HIGH PERFORMANCE, 14-CHANNEL DI MODULE HOUSED IN A 3U, RACK MOUNTING CASE WITH AN INTEGRAL SWITCH MODE POWER SUPPLY THAT AUTOMATICALLY ADAPTS TO MAINS VOLTAGES IN THE RANGE 100 TO 240 VOLTS (50 TO 60HZ).ADUAL PSU IS AVAILABLE AS A FACTORY FITTED OPTION. APPLICATIONS INCLUDE PROVIDING DI BOX FEEDS TO SERVICE MONITOR AND FOH CONSOLES AS WELL AS TO FACILITATE THE MULTITRACK RECORDING OF LIVE EVENTS.

EACH INPUT FEEDS A SUPERBLY SPECIFIED INPUT STAGE, WHICH CAN FLEXIBLY HANDLE BOTH LINE- AND INSTRUMENT-LEVEL SIGNALS. THE TRS JACK AND XLR INPUTS ON CHANNELS 1-10 ARE PARALLEL CONNECTED, AND THE CIRCUIT DESIGN ALLOWS THE DN1414 TO HANDLE EITHER BALANCED OR UNBALANCED SIGNALS WITHOUT LOSS.

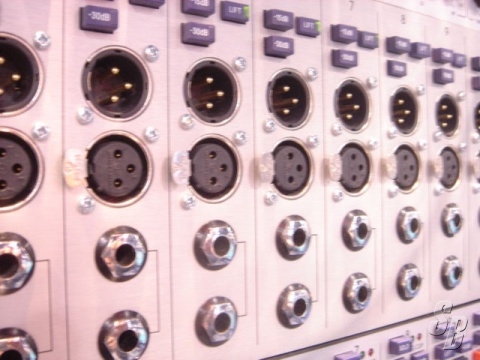

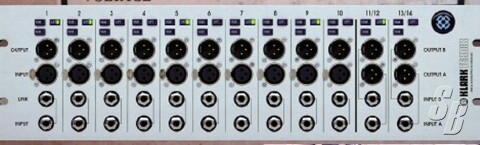

A 20K OHM INPUT IMPEDANCE IS PRESENTED WHEN THE XLR INPUT CONNECTOR IS USED, THIS IMPEDANCE IS SWITCHED OUT WHEN THE JACK INPUT IS USED, TO AVOID HIGH-FREQUENCY LOADING EFFECTS WHEN THE DN1414 IS USED WITH UNBUFFERED GUITAR PICK-UPS. ALL CONNECTORS ARE MOUNTED ON THE FRONT PANEL FOR EASY ACCESS. TWO PAD/ATTENUATOR SWITCHES (-30DB AND -15DB) MAY BE USED INDIVIDUALLY OR IN COMBINATION TO PROVIDE UNITY, -15 DB, -30 DB OR 45 DB GAIN. EACH DI CHANNEL OUTPUT IS ALSO FITTED WITH A GROUND LIFT SWITCH.

ENGINEERED TO THE EXACTING STANDARDS FOR WHICH KLARK TEKNIK ARE FAMOUS, THE DN1414 HAS MANY APPLICATIONS FROM LIVE SOUND REINFORCEMENT TO BROADCAST AND STUDIO RECORDING.

TEN FULL-FUNCTION CHANNELS WITH JACK AND XLR INPUTS, JACK LINK AND TRANSFORMER BALANCED OUTPUTS. TWO DUAL CHANNELS WITH TWO JACK INPUTS AND TRANFORMER BALANCED OUTPUTS - FOURTEEN INDIVIDUAL DI CHANNELS IN TOTAL. -15DB ATTENUATOR, -30DB PAD AND EARTH LIFT SWITCHES ON FULL-FUNCTION CHANNELS. INTERNAL POWER SUPPLY WITH FACTORY OPTION OF BACKUP PSU.

NEW WITH FULL FACTORY WARRANTY, FOB LV

THE DN1414 MULTIPLE DI MODULE OFFERS A COST AND SPACE-EFFECTIVE METHOD OF PROVIDING 14 DISCRETE CHANNELS OF TRANSFORMER-ISOLATED DIRECT INJECTION. HOUSED IN A RUGGED 3U RACK ENCLOSURE, THE DN1414 EMBODIES THE LEGENDARY SOUND AND RELIABILITY OF KLARKTEKNIK.

SOUNDBROKER.COM IS AN AUTHORIZED KLARK TEKNIK
