ID # 144321    CURRENT CATEGORY - MICROPHONES

For Sale: VINTAGE BEYERDYNAMIC MC740N(C)P48 + EA740
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on September 13, 2023 - Viewed 109 times

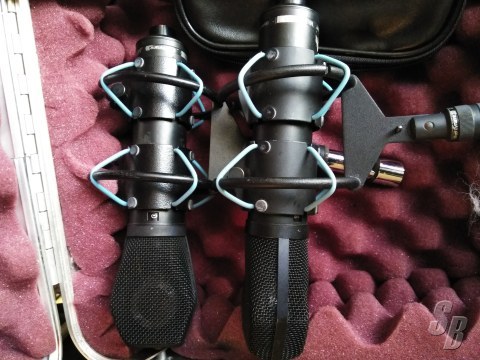

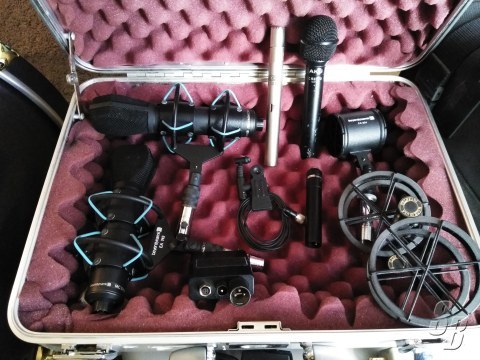

VINTAGE BEYERDYNAMIC MC740N(C)P48 + EA740

BEYERDYNAMIC MC740N(C)P48 + EA740 (YOM: "?") (S#: TBD) SUPERB (8-9) FEATURES:

MULTI-DIRECTIONAL CONDENSER MICROPHONE

MANUFACTURER'S DESCRIPTION FROM BEYERDYNAMIC

  • THE BEYERDYNAMIC MC 740 SET CONDENSER MICROPHONE IS A UNIVERSAL STUDIO MIC THANKS TO ITS 5 SWITCHABLE POLAR PATTERNS.
  • THE MC 740 MIC IS DESIGNED WITHOUT COMPROMISE TO BE ABLE TO CAPTURE EVERY SOUND DETAIL WITH ABSOLUTE CLARITY AND PURITY.
  • APPLICATIONS FOR THE MC 740 SET INCLUDE RECORDING ORCHESTRAS (2 X MC 740 IN XY- OR ORTF-POSITION) AS A MAIN MICROPHONE RESULTING IN A SUPERB TRANSPARENT SOUND.

SPECIFICATIONS

  • TRANSDUCER TYPE: CONDENSER
  • OPERATING PRINCIPLE: PRESSURE GRADIENT
  • POLAR PATTERNS: OMNIDIRECTIONAL, WIDE CARDIOID, CARDIOID, HYPERCARDIOID, FIGURE-EIGHT
  • OPEN CIRCUIT VOLTAGE AT 1 KHZ (0DB = 1V/PA): 10 MV/PA = -40 DBV
  • NOMINAL IMPEDANCE: 150 OHMS
  • LOAD IMPEDANCE: 1000 OHMS
  • CONNECTOR: MC 740 N(C) WITH 3-PIN XLR; MC 740 N(C/5) WITH 5-PIN XLR
  • LENGTH: 215 MM
  • SHAFT DIAMETER: 37 MM
  • HEAD DIAMETER: 36 X 55 MM
  • WEIGHT WITHOUT CABLE: 390 G
  • FREQUENCY RESPONSE: 20 - 20,000 HZ
  • MAX. SPL AT 1 KHZ: 134 DB (WITH PRE-ATTENUATION 144 DB)
  • S/N RATIO REL. TO 1 PA: APPROX. 70 DB
  • A-WEIGHTED EQUIVALENT SPL: APPROX. 17 DB
  • POWER SUPPLY: 48 ± 4 V PHANTOM POWER
  • CURRENT CONSUMPTION: 1.4 MA

 MICROPHONES, FIVE DIRECTIONAL CHARACTERISTICS CAN BE DISPLAYED USING A WHEEL:

  • PURE-CARDIOID
  • WIDE-CARDIOID
  • HYPER-CARDIOID
  • BI-DIRECTIONAL
  • OMNI-DIRECTIONAL

IN CONTRAST TO THE USEFUL FACE, RESPECTIVELY, WERE TWO ADDITIONAL FUNCTIONS:

  • ATTENUATOR 0-DB/-10DB
  • LOW-CUT FILTER 80 HZ AND 160 HZ

THIS MICROPHONE HAS A DOUBLE MEMBRANE SUSPENDED, IT COMES WITH ITS SOFT SUSPENSION WHICH WILL BE ESSENTIAL TO USE!
THE PRINCIPLE RESTS ON A SYSTEM WITH RELATIVELY CONVENTIONAL CONDENSER TYPE, CONNECTED TO A DOUBLE MEMBRANE PROVIDING A FREQUENCY RESPONSE ABSOLUTELY CONSTANT, REGARDLESS OF THE SELECTED DIAGRAM, WHICH IS OF COURSE THEREIN LIES THE MAIN INTEREST OF THIS MICROPHONE.

EXTRAS:

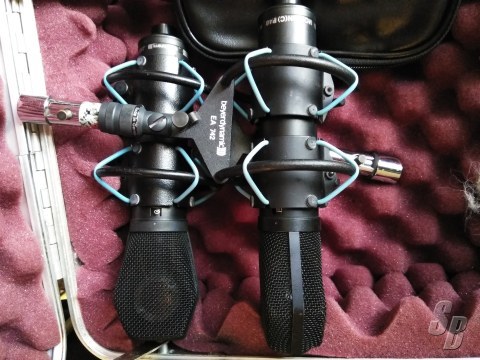

EA740 MOUNT

MODIFICATIONS:

NO

HISTORY:

STUDIO USE ONLY

COMMENTS:

PERFECT WORKING ORDER

WWW.SOUNDBROKER.COM LINKING BUYERS AND SELLERS TOGETHER SINCE 1997 FOR NEW AND USED PROFESSIONAL AUDIO, LIGHTING, STAGING, PROJECTORS, AND VIDEO EQUIPMENT.

Additional Details
ID#: 144321
Listing Type:
Standard
Model: MC740N(C)P48 + EA740
Manufacturer: BEYERDYNAMIC
Condition: SUPERB (8-9)
Shipping Info: 0.00 lbs.,
Seller's Location: AZ, USA
Updated: September 13, 2023
M.S.R.P.: $0.00
Offered at: $800.00
