FS:EQUI=TECH ET2R-F AC POWER CONDITIONERS
[PRICED PER UNIT - 3 AVAILABLE AT TIME OF LISTING]
Listing last update on January 29, 2009 - Viewed 147 times

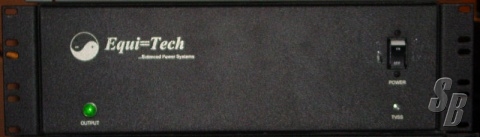

DESCRIPTION: EQUITECH ET2R-F (YOM: 2003) (S#: TBD) SUPERB (8-9)

FEATURES: OUTPUT VOLTAGE: 120VAC@60HZ
SURGE PROT: 240 JOULES
GCFI: YES
OUTPUT CAPACITY: 2 KVA
CONT. DUTY: 16.7A.
# CIRCUITS/SIZE: 1-20A

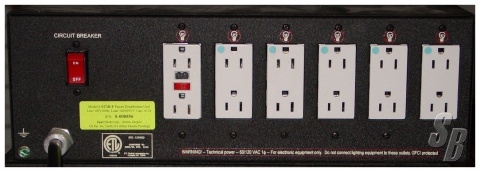

#OUTLET/TYPE:12-15A
INPUT: 120 VAC
PLUG TYPE: NEMA 5-20
- WITH FILTER OPTION

EXTRAS: INSTALLED OPTIONS: FILTER - EMI/RFI FILTER OPTION. FILTERS ARE APPLIED TO THE BALANCED OUTPUT. WHERE A BALANCED POWER SYSTEM'S COMMON MODE NOISE REJECTION ENDS, EMI/RFI FILTERING BEGINS. SOME EQUIPMENT POWER SUPPLIES ARE NOT VERY WELL BALANCED SO SOME HIGH FREQUENCY AC INTERFERENCE DIFFERS FROM TYPICAL POWER HARMONICS MAKING THESE BALANCED MULTI-STAGE LINE FILTERS A FINE COMPLIMENT TO A BALANCED POWER SYSTEM. SENSITIVE DIGITAL ELECTRONICS IN A SYSTEM MAY REQUIRE ADDITIONAL LINE FILTERING FOR BEST PERFORMANCE. SWITCHING DIGITAL POWER SUPPLY NOISE IS ATTENUATED ON THE LINE AND KEPT ISOLATED FROM OUTLETS THAT POWER OTHER SENSITIVE ELECTRONICS. THESE FILTERS REDUCE LINE NOISE -30DB FROM 100KHZ TO 1GHZ.

MODIFICATIONS: NONE

HISTORY: RECENTLY PULLED FROM POST-PRODUCTION FACILITY.

COMMENTS: NONE

THIS UNIT WAS NEVER TOURED
