GENERIC ACOPACIFIC MIC SYSTEM PS9200KIT (YOM: 2003) (S#: 202354-1) GOOD (7-8)
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on April 29, 2009 - Viewed 142 times

GENERIC ACOPACIFIC MIC SYSTEM PS9200KIT (YOM: 2003) (S#: 202354-1) GOOD (7-8)

FEATURES: HTTP://WWW.ACOPACIFIC.COM/PS9200KIT.HTML

THE PS9200KIT IS A COMPLETE 1/2 INCH TYPE 1 MEASUREMENT MICROPHONE SYSTEM. HOUSED IN AN ABS CUSTOM DIE-CUT FOAM CASE (SC1) THE PS9200KIT IS AN EXCELLENT CHOICE FOR FIELD APPLICATIONS.
APPLICATIONS INCLUDE LOUDSPEAKER TESTING, ARCHITECTURAL ACOUSTICS, PRODUCT TESTING, PREVENTATIVE MAINTENANCE, AUTOMOBILE AND AIRCRAFT TESTING, AND REGULATORY COMPLIANCE TESTING. THE PS9200KIT PROVIDES A MICROPHONE SYSTEM TRACEABLE TO US AND INTERNATIONAL STANDARDS.

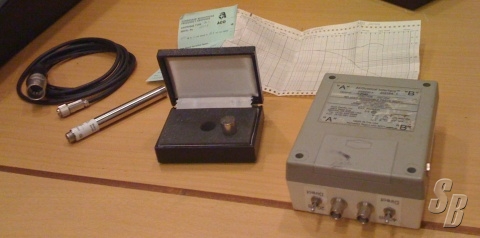

PS9200KIT-LI INCLUDES:

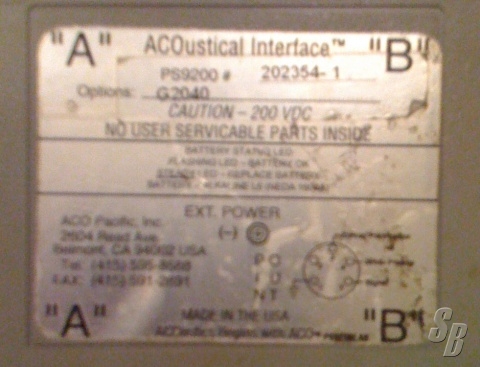

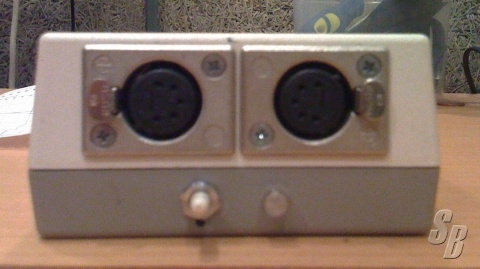

• PS9200 - 2 CHANNEL POWER SUPPLY

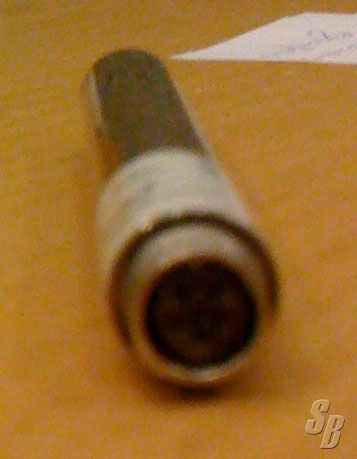

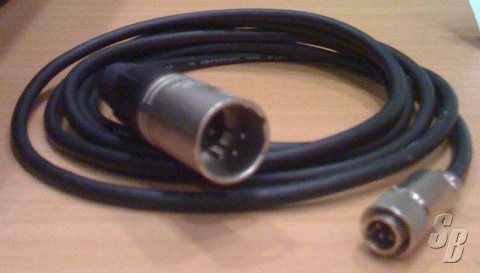

• 4012 - 1/2 INCH PREAMPLIFIER W/CA4012-5 PREAMP CABLE, SPECIAL HP (INCREASED OUTPUT CURRENT) VERSION FOR BETTER DRIVING PRAXIS AUDPOD MICROPHONE INPUT
• PS9 (110VAC) OR PS29 (220VAC) ADAPTOR
• ADAPTORS FOR CONNECTION TO PRAXIS AUDPOD
• WS1 - 3 INCH WINDSCREEN
• SC1 - FITTED STORAGE CASE

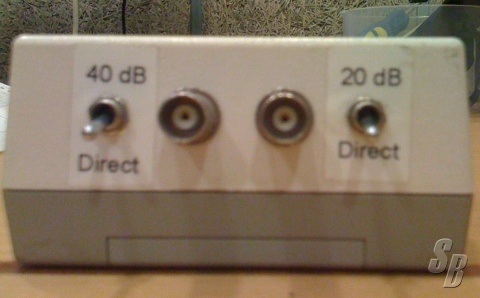

• 20DB AND 40DB ATTENUATORS FOR USE WITH PRAXIS AUDPOD MIC INPUT AT HIGH SPL LEVELS

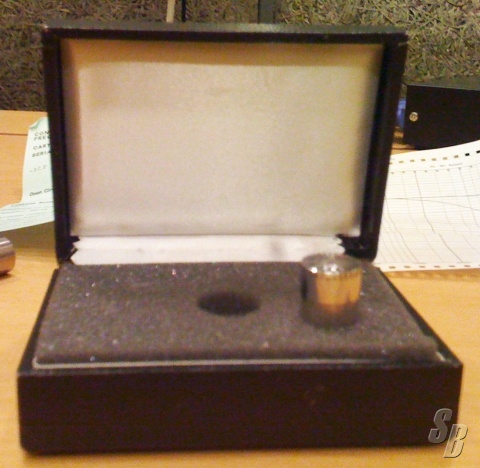

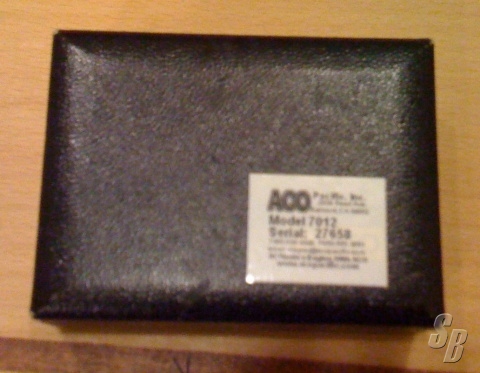

• MODEL 7012 1/2 INCH TYPE 1 MICROPHONE CAPSULE
â—¦ FREQ RESPONSE: 2 HZ TO 40 KHZ
â—¦ SENSITIVITY: 15 MV/PA NOMINAL (CAN BE REDUCED WITH OPTIONAL ATTENUATOR)
â—¦ DYNAMIC RANGE
  NOISE FLOOR: <20 DBA
  3% THD: 160 DBSPL (WITH OPTIONAL ATTENUATOR)

EXTRAS: NO

MODIFICATIONS: ABS CUSTOM DIE-CUT FOAM CASE AND 220V TRANSFORMER NOT INCLUDED. WORKING WITH 9V BATTERY

HISTORY: RARELY USED IN FEW LOCAL THEATER CONCERTS

COMMENTS: SOME

THIS UNIT WAS NEVER TOURED
