KLARK TEKNIK DN1414 (YOM: ?) (S#: TBD) SUPERB (8-9)
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on March 27, 2013 - Viewed 129 times

KLARK TEKNIK DN1414 (YOM: ?) (S#: TBD) SUPERB (8-9)

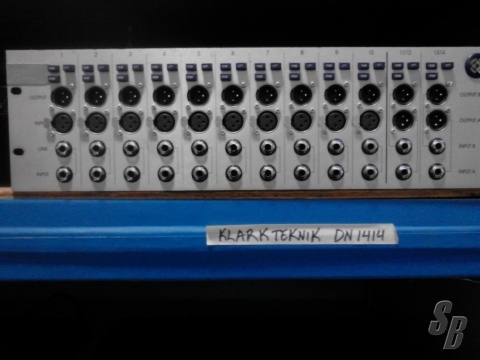

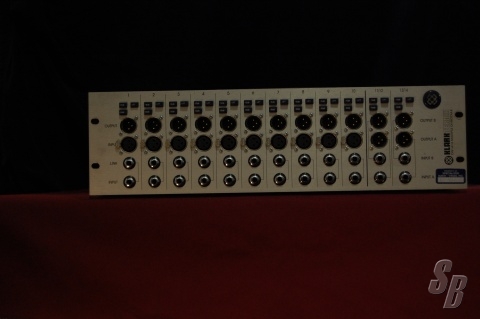

FEATURES: 14CH. RACKMOUNT DI MODULE, 3U.

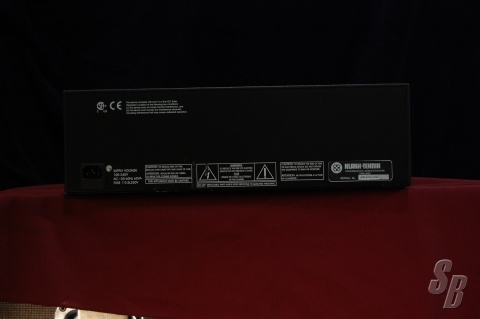

THE KLARK TEKNIK DN1414 IS AN EXTREMELY HIGH PERFORMANCE, 14-CHANNEL DI MODULE HOUSED IN A 3U, RACK
MOUNTING CASE WITH AN INTEGRAL SWITCH MODE POWER SUPPLY THAT AUTOMATICALLY ADAPTS TO MAINS VOLTAGES IN THE
RANGE 100 TO 240 VOLTS (50 TO 60HZ).ADUAL PSU IS AVAILABLE AS A FACTORY FITTED OPTION. APPLICATIONS INCLUDE
PROVIDING DI BOX FEEDS TO SERVICE MONITOR AND FOH CONSOLES AS WELL AS TO FACILITATE THE MULTITRACK RECORDING
OF LIVE EVENTS.
EACH INPUT FEEDS A SUPERBLY SPECIFIED INPUT STAGE, WHICH CAN FLEXIBLY HANDLE BOTH LINE- AND INSTRUMENT-LEVEL
SIGNALS. THE TRS JACK AND XLR INPUTS ON CHANNELS 1-10 ARE PARALLEL CONNECTED, AND THE CIRCUIT DESIGN ALLOWS
THE DN1414 TO HANDLE EITHER BALANCED OR UNBALANCED SIGNALS WITHOUT LOSS. A 20K OHM INPUT IMPEDANCE IS
PRESENTED WHEN THE XLR INPUT CONNECTOR IS USED, THIS IMPEDANCE IS SWITCHED OUT WHEN THE JACK INPUT IS USED,
TO AVOID HIGH-FREQUENCY LOADING EFFECTS WHEN THE DN1414 IS USED WITH UNBUFFERED GUITAR PICK-UPS. ALL
CONNECTORS ARE MOUNTED ON THE FRONT PANEL FOR EASY ACCESS. TWO PAD/ATTENUATOR SWITCHES (-30DB AND -15DB)
MAY BE USED INDIVIDUALLY OR IN COMBINATION TO PROVIDE UNITY, -15 DB, -30 DB OR 45 DB GAIN. EACH DI CHANNEL
OUTPUT IS ALSO FITTED WITH A GROUND LIFT SWITCH

EXTRAS: MANUAL AVAILABLE UPON REQUEST

MODIFICATIONS: NO MODS

HISTORY: INFREQUENTLY USED BY A WELL MAINTAINED AUDIO RENTAL HOUSE

COMMENTS: FULLY FUNCTIONAL

THIS UNIT WAS NEVER TOURED
