PSC M6 RETRO PORTABLE AUDIO MIXER
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on July 01, 2013 - Viewed 167 times

PSC M6 RETRO MIXER (YOM: ?) (S#: TBD) AVERAGE FOR AGE (6-7)

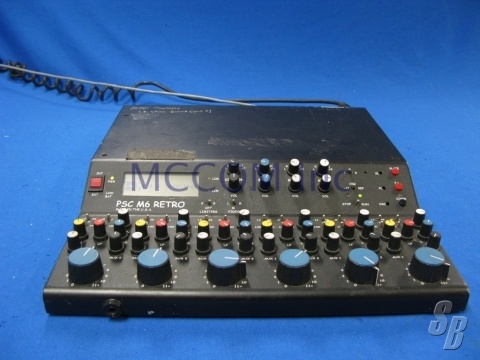

FEATURES: PSC M6 RETRO PORTABLE AUDIO MIXER. THE UNIT POWERS ON AND WAS TESTED FOR TONE IN/OUT. THERE IS SOME ENGRAVING ON THE TOP LEFT OF THE UNIT (SEE PIC) THAT ISN'T GOING TO BE ABLE TO BE REMOVED. A POWER SUPPLY IS INCLUDED.

THE PSC M6 MIXER PROVIDES ALL THE FUNCTIONS NECESSARY TO PRODUCE STUDIO QUALITY RECORDINGS IN THE FIELD. IT'S USER FRIENDLY FEATURES, RUGGED DESIGN AND SONIC PURITY MAKE THE M6 MIXER PERFECT FOR FEATURE FILM RECORDING, REMOTE BROADCAST, AND MANY TYPES OF ELECTRONIC FIELD PRODUCTION (EFP).

THE PSC M6 PORTABLE AUDIO MIXER IS DESIGNED TO FULFILL THE NEEDS OF THE FIELD RECORDIST. IT OFFERS MANY OF THE FEATURES FOUND IN OUR FLAGSHIP M8 MIXER, BUT WITH REDUCED COMPLEXITY AND COST. THIS PSC M6 MIXER IS DESIGNED FOR EXTREME FIELD OPERATING CONDITIONS AND THIS UTILIZES ROTARY POT FADERS BECAUSE OF THEIR IMMUNITY TO DIRTY AND DUSTY CONDITIONS. IN ADDITION, IT OFFERS PROVISIONS FOR DIRECT MOUNTING OF YOUR FAVORITE RDAT OR DVD RECORDER. THIS ALLOWS FOR A SIMPLE AND CONVENIENT MEANS OF RECORDING IN THE FIELD WHETHER YOU ARE WORKING ON A SOUND STAGE, IN AN INSERT CAR, OR AT SOME OTHER REMOTE LOCATION.

SPECS:

SIZE: 14. W X 15. D X 2.25. H
WEIGHT: 12LBS. (5.4KG)
TEMP RANGE: -4 TO +158F (-20 TO +70C)
BATTERIES: 10X D ALKALINE
CASE MATERIAL: 0.125. (3MM) AIRCRAFT ALUMINUM
FINISH: EPOXY POWDER COAT
OVERLAYS: 0.005. HARDFACE LEXAN TM WITH SUB-SURFACE EPOXY SILK SCREENING
GLOBAL GAIN: 80DBFREQ. RESPONSE: 20-20KHZ +/-1DB
SIGNAL TO NOISE: 131DB EIN 150 OHMS
DISTORTION: 00.08% THD
LOW CUT FILTER: 100HZ, 140HZ 12DB/OCTAVE
MIC POWER: DYN, 12T, 48 PH
OSCILLATOR: 440HZ
LIMITER: 1MS ATTACK, 100 MS RELEASE 2.7:1 RATIO


EXTRAS: NA

MODIFICATIONS: NA

HISTORY: NA

COMMENTS: NA

THIS UNIT WAS NEVER TOURED
