EV PX1122M
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on September 08, 2012 - Viewed 112 times

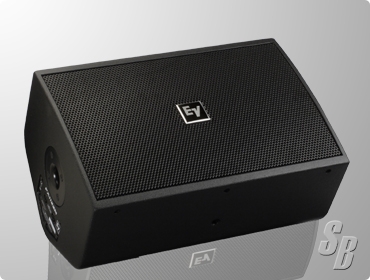

EV (ELECTROVOICE) PX1122M (YOM: 2007) (S#: TBD) SUPERB (8-9)

FEATURES:

PX1122M HIGH-OUTPUT 12-INCH MULTI-PURPOSE TWO-WAY THE PX1122M FEATURES DUAL, ND2, TWO-INCH VOICE COILS, AND ONE-INCH EXIT NEODYMIUM COMPRESSION DRIVERS. FEATURES:

* DVX3121 12-INCH, LOW-FREQUENCY TRANSDUCER WITH FORCED-AIR COOLING * VERY HIGH SENSITIVITY L 132 DB MAXIMUM SPL * ULTRACOMPACT, LOW PROFILE, MULTIPURPOSE DESIGN * 90 DEGREE X 45 DEGREE COVERAGE PATTERN * 600-WATT CONTINUOUS (2400-WATT PEAK) POWER HANDLING * PASSIVE AND BIAMP SELECTABLE L INTEGRAL RIGGING POINT FOR PX-SAM STRONG ARM MOUNT * POLE-MOUNT FOR TRIPOD USE.

SPECIFICATIONS FREQUENCY RESPONSE (-3DB) 70 - 15000 HZ FREQUENCY RESPONSE (-10DB) 55 - 19000 HZ SENSITIVITY 1W/1M 98 DB MAX. SPL/1M (CALC); HALF SPACE 132 DB COVERAGE (NOMINAL -6DB) H° 90 ° COVERAGE (NOMINAL -6DB) V° 45 ° ROTATABLE HORN YES SYSTEM POWER HANDLING (CONTINUOUS/PROGRAM/PEAK) 600/1200/2400 WATTS LOW FREQUENCY POWER HANDLING (CONTINUOUS/PROGRAM/PEAK) 500/1000/2000 WATTS HIGH FREQUENCY POWER HANDLING (CONTINUOUS/PROGRAM/PEAK) 80/160/320 WATTS LF TRANSDUCER (1) DVX3121, 12 IN (305MM) DRIVER HF TRANSDUCER (2) ND2-16, 2 IN (50MM) DIAPHRAGM COMPRESSION DRIVERS NOMINAL IMPEDANCE (PASSIVE) 8 OHMS LF NOMINAL IMPEDANCE 8 OHMS HF NOMINAL IMPEDANCE 8 OHMS ENCLOSURE MATERIAL 18MM PLYWOOD WITH BLACK EVCOAT GRILL POLYESTER POWDER COATED, 16GA GALVANIZED STEEL, WITH ROTATABLE LOGO COLOR BLACK FLYING OPTIONAL INPUT CONNECTIONS PARALLEL NEUTRIK® NL4 OUTDOOR NO CHASSIS SIZE 12 INCHES INTERNAL CROSSOVER SELECTABLE SPEAKER TYPE FULLRANGE, MID-HIGH, TWO-WAY, WEDGES WEIGHT NET 23.1 KG ( 50.93 LBS ) DIMENSIONS (HXWXD) 546 X 366 X 305 MM (21.5" X 14.41" X 12.01")

EXTRAS: STRONG ARM AVAILABLE AT ADDITIONAL COST.

MODIFICATIONS: NONE

HISTORY: CORPORATE

COMMENTS: NONE

THIS UNIT WAS NEVER TOURED
