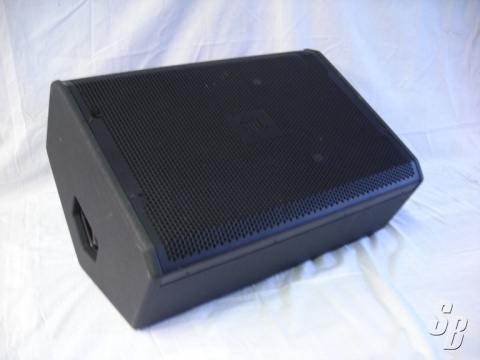

JBL VRX915M (YOM: ?) (S#: TBD) LIKE NEW (9-10)
[PRICED PER UNIT - 18 AVAILABLE AT TIME OF LISTING]
Listing last update on October 08, 2010 - Viewed 130 times

JBL VRX915M (YOM: ?) (S#: TBD) LIKE NEW (9-10)

FEATURES: FEATURES :

* COMPACT AND LOW-PROFILE FOR MINIMAL OBSTRUCTION OF AUDIENCE SIGHTLINES

* 50° X 90° NOMINAL COVERAGE

* BI-AMPLIFIED OR FULL-RANGE PASSIVE OPERATION

* DIFFERENTIAL DRIVE® WOOFER WITH NEODYMIUM MAGNET FOR HIGH POWER CAPACITY AND VERY LIGHT WEIGHT

* 4" (VOICE COIL) DIAMETER COMPRESSION DRIVER WITH NEODYMIUM MAGNET

SPECIFICATIONS:

POWER RATING : 800 W / 1600 W / 3200W

FREQUENCY RANGE : 60 HZ - 20 KHZ

DIMENSIONS
(H X W X D) : 629 MM X 432 MM X 324 MM (375 MM STAGE HEIGHT) 24.75 IN X 17 IN X 12.75 IN (14.75" STAGE HEIGHT)

FREQUENCY RESPONSE : 70 HZ - 20 KHZ

COVERAGE PATTERN : 50° X 90° NOMINAL

CROSSOVER MODES : PASSIVE / BI-AMP

CROSSOVER FREQUENCY : 1.1 KHZ

SYSTEM MAXIMUM SPL : 127 DB SPL CONTINUOUS (133 DB SPL PEAK)

SYSTEM SENSITIVITY (1W @ 1M : 98 DB SPL

LF DRIVER : 1 X JBL 2265H 380 MM (15 IN) DIFFERENTIAL DRIVE® WOOFER 8 OHMS

HF DRIVER : 1 X JBL 2452H, 100 MM (4.0 INCH) DIAMETER VOICE COIL, 38 MM (1.5 INCH) EXIT, NEODYMIUM MAGNET COMPRESSION DRIVER 8 OHMS

NOMINAL IMPEDANCE : 8 OHMS

ACTIVE TUNINGS : TUNINGS AVAILABLE AT WWW.JBLPRO.COM

ENCLOSURE : SYMMETRICAL STAGE MONITOR, 15/18 MM, PLYWOOD

FINISH : BLACK DURAFLEX™ FINISH

GRILLE : POWDER COATED, BLACK, 16 GAUGE PERFORATED STEEL WITH ACOUSTICALLY TRANSPARENT BLACK SCREEN BACKING

INPUT CONNECTORS : NEUTRIK® SPEAKON® NL-4 (X2), ONE ON EACH END

NET WEIGHT : 21 KG (46.0 LB)


EXTRAS: ROAD CASES AVAILABLE UPON REQUEST FOR AN EXTRA CHARGE.

MODIFICATIONS: ACCEPT EP6 AS WELL AS NL4 INPUTS.

HISTORY: LIVE SOUND PRODUCTION COMPANY

COMMENTS: NO KNOWN PROBLEMS, IN PERFECT WORKING ORDER.

THIS UNIT WAS TOURED
