15000 WATT PA SYSTEM
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on July 27, 2012 - Viewed 556 times

CARVIN CARVIN (YOM: 2009) (S#: TBD) GOOD (7-8)

FEATURES: 4 CARVIN TRX 218 - DUAL 18 NEO MAGNETS SUBS - 4OHM - 1600WATTTS RMS EACH LIGHT WEIGHT
4 CARVIN TRX 153 - 15/8/HORN - NEO MAGNETS 8 OHM - 600 WATTS RMS LIGHT WEIGHT

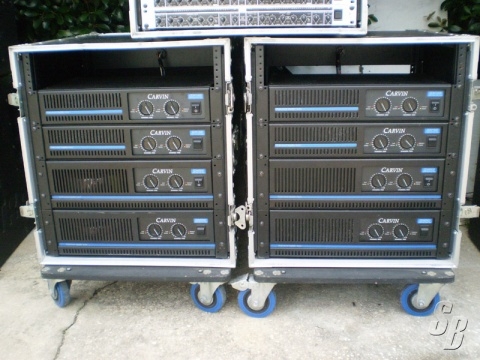

2 AMP RACK WITH 7500 WATTS EACH IN ATA ROLLING RACK WITH WHEEL LOCKS EACH RACK CONTAINS 2 CARVIN DCM 2500 WATT,1 CARVIN DCM 1500 WATT, 1 CARVIN DCM 1000 WATT
1 CARVIN XD88 DIGITAL SPEAKER MANAGEMENT PROCESSOR WITH 8 IN AND OUT ASSIGNABLE - 1/3 OCTAVE EQ ON EACH OUTPUT

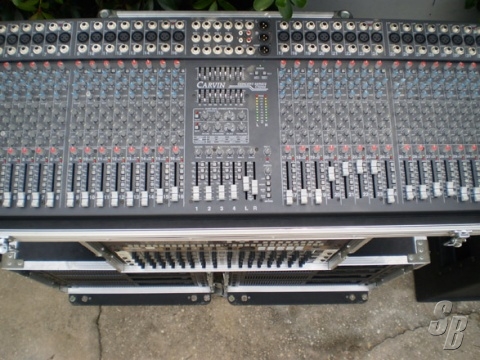

1 CARVIN 32 CHANNEL MIXER WITH 2 DIGITAL EFFECTS, 6 AUX SENDS AND ROAD CASE

MAIN SPEAKON CABLES BELOW
4 - 50' NL4 SPEAKON SUB CABLES (CABLE IS 8 CONDUCTOR)
2 - 50' NL8 SPEAKON TOP CABLES (CABLE IS 8 CONDUCTOR)
2 - 3' NL8 SPEAKON JUMPERS (CABLE IS 8 CONDUCTOR)

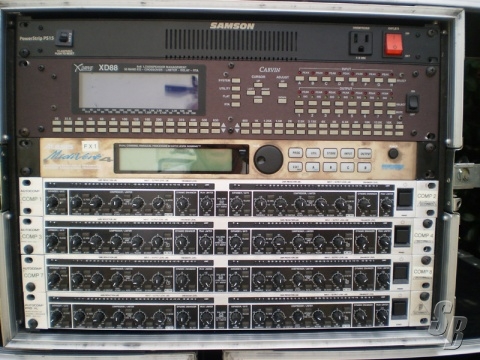

1 - 8 RU ATA CASE WITH 5 STEREO COMPRESSOR LIMITERS AND 1 ALESIS MIDI VERB 4, POWER DISTRIBUTION IN TOP OF RACK

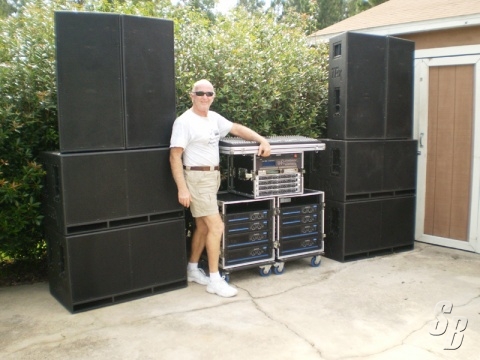

THIS COMPLETE PA SYSTEM INCLUDES ALL THE INTERCONNECTING CABLES IS READY TO POWER UP. JUST PLUG IN SNAKE, MICS AND INSTRUMENTS. THIS SYSTEM HAS BEEN USED FOR 3 YEARS BY MYSELF FOR CONCERTS. IT HAS BEEN PROPERLY MAINTAINED AND SERVICE. I WILL GUARANTEE IT'S FULL OPERATION. I WILL ALSO DELIVER IT TO A LOCATION OF YOUR CHOICE THE SYSTEM IS CAPABLE OF 4 WAY STEREO OR 4 WAY MONO OR 2 WAY STEREO OR 2 WAY MONO. I USUALLY RUN 4 WAY MONO. WHEN YOU RUN 4 WAY MONO YOU STILL HAVE 4 INPUTS AND OUTPUTS THAT ARE ASSIGNABLE TO STAGE MONITORS WITH 1/3 OCTAVE EQ'S ON EACH. MAX POWER OF THIS SYSTEM IS 15,000 WATTS. EACH SUB IS RAN OFF OF 1 - 2500WATT AMP IN THE BRIDGED MODE. THE LOW MIDS ARE POWERED BY 1 - 1500 WATT BRIDGED, THE HIGH MIDS ARE POWERED BY CH1 OF A 1000WATT AND THE HIGHS ARE POWERED BY CH2 OF A 1000WATT AMP. THE HIGH MIDS AND HIGHS ARE RAN IN THE LIMITER MODE. THIS IS PER STACK

VISIT - HTTP://WWW.TECH-STAR.NET/RENTAL_CONCERT_SOUND.HTM FOR PICTURES AND ADDITIONAL SPECIFICATIONS.

EXTRAS: RAOD CASES

MODIFICATIONS: ADDED NL8 - RACK PANEL TO THE BACK OF EACH AMP RACK TO FACILITATE RUNNING 1 CABLE THAT HAD LOW MIDS, MIDS AND HIGH FROM AMPS

HISTORY: USED EXCLUSIVE BY ME FOR CONCERTS - 3 YEARS

COMMENTS: 100% WORKING FULLY

THIS UNIT WAS NEVER TOURED
