EAW 8 EA. KF860/ 4 EA. 861 LINE ARRAY. WITH 8 KF940 SUBWOOFERS
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on March 13, 2013 - Viewed 560 times

EAW KF860/861 (YOM: 2000) (S#: TBD) GOOD (7-8);

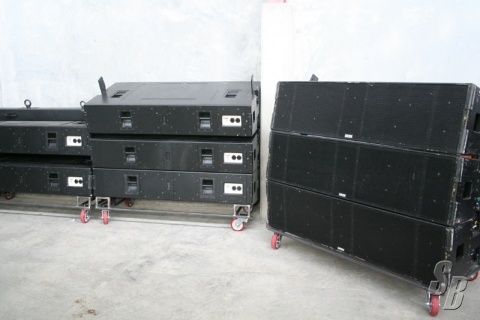

THIS SPEAKER SYSTEM INCLUDES:
8 EA. KF860 NARROW-DISPERSION (LONG-THROW) CABINETS
4 EA. KF861 WIDE-DISPERSION (SHORT-THROW) CABINETS
8 EAW KF940 SUBWOOFERS
2 EA. SETS OF FLY BARS [INCLUDED!]
4 CUSTOM DOLLIES THAT HOLD 3 BOXES EACH [INCLUDED]
COMES WITH ALL NECESSARY PINS/PUCKS.

THIS SYSTEM WAS TOURED - SHOWS SOME WEAR AND TEAR - SOME BOXES MIGHT HAVE BRITTLE FOAM, HOWEVER THEY ARE IN 100% WORKING ORDER WITH ALL ORIGINAL DRIVERS.

MODIFICATIONS: AP6 CONNECTORS WERE CHANGED OUT WITH NL8 INPUTS.

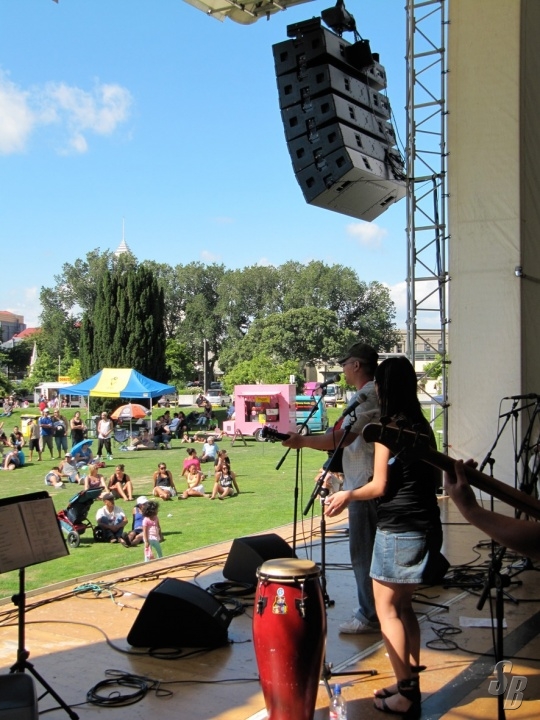

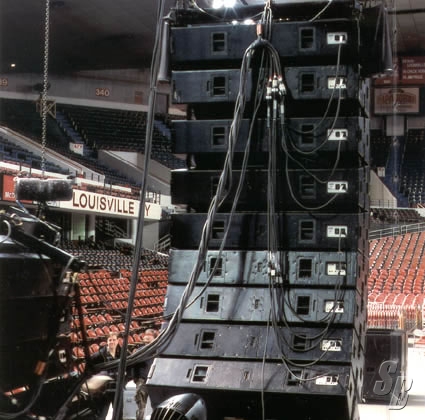

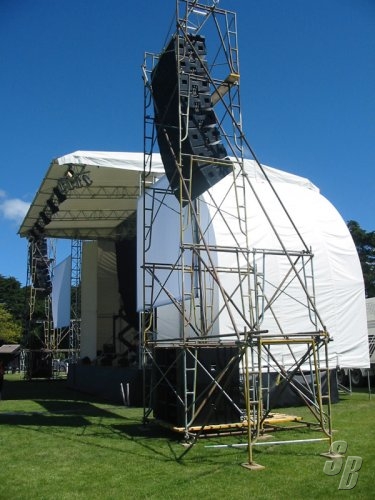

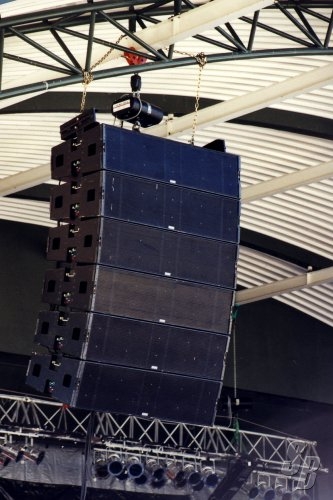

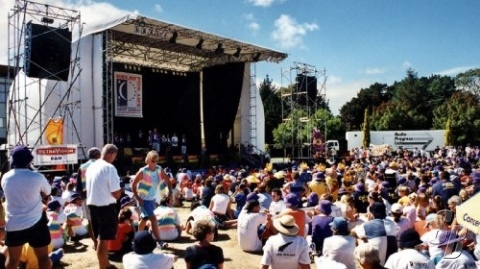

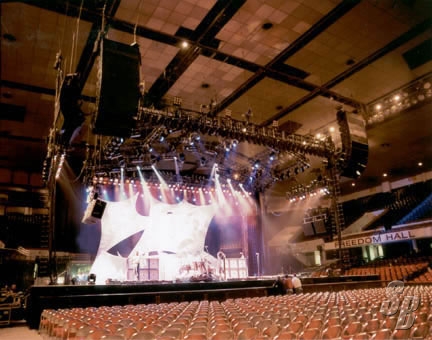

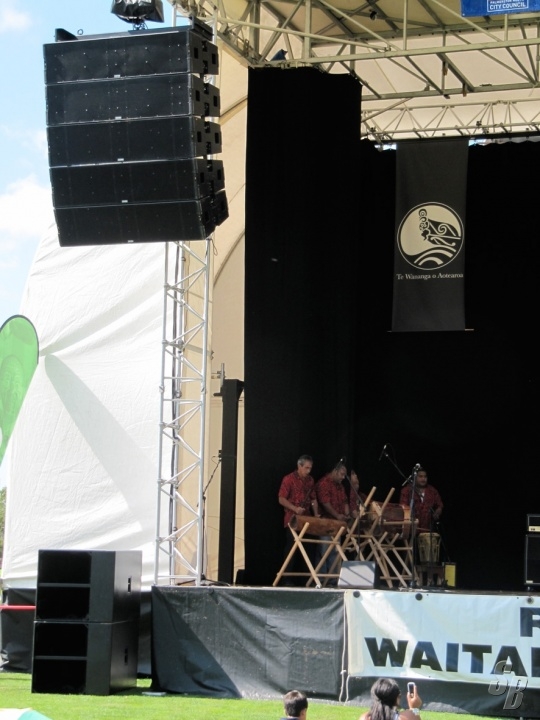

HISTORY: THIS SYSTEM HAS BEEN USED FOR TOURS AND CORPORATE EVENTS.

----------------------------------------------------------------



COMMENTS: GUNNESS FOCUSING PRESETS WERE CUSTOMED DEVELOPED BY EAW FOR THE KF860 AT OUR REQUEST LAST YEAR FOR THE UX8800 PROCESSOR! IT HAS TRANSFORMED THE PERFORMANCE OF THIS SYSTEM!


PRODUCT DETAILS
LF SUBSYSTEM- 2X 15-IN, ANGLED BAFFLES
MF SUBSYSTEM-2X 10-IN CONE, HORN LOADED
HF SUBSYSTEM- 2X 2-IN EXIT COMPRESSION DRIVER ON CONSTANT DIRECTIVITY HORN
FREQUENCY RESPONSE
50HZ TO 17KHZ (+/- 3 DB)
POWER HANDLING
2000 WATTS AES (LF)
800 WATTS AES (MF)
400 WATTS AES (HF)
MAXIMUM SPL (1M)
141 DB PEAK (LF)
147 DB PEAK (MF)
147 DB PEAK (HF)
