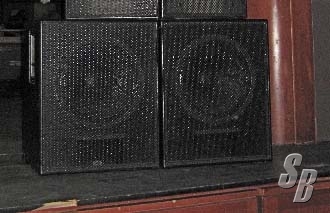

EAW SB180R
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on February 14, 2011 - Viewed 129 times

EAW SB180R (YOM: 1999) (S#: TBD) GOOD (7-8)

FEATURES: DESCRIPTION
A DEDICATED SUBWOOFER SYSTEM WITH AN 18-IN TRANSDUCER IN A COMPACT VENTED RECTANGULAR ENCLOSURE. AVAILABLE IN A PORTABLE VERSION ('R' WITH HANDLES AND NL4 CONNECTORS) OR A PERMANENT INSTALLATION VERSION ('P' WITH BARRIER STRIP INPUTS AND MOUNTING/SUSPENSION POINTS).

APPLICATIONS
THE SB180 PROVIDES HIGH OUTPUT SUB BASS RESPONSE IN A COMPACT ENCLOSURE. TUNED ENCLOSURE VENTING EXTENDS LF RESPONSE AND MINIMIZES DRIVER STRAIN. MX SERIES PROCESSORS EXTEND LF RESPONSE AND SAFEGUARD AGAINST CONE EXCURSION DAMAGE. COMPREHENSIVE MOUNTING/SUSPENSION POINTS. SIX YEAR WARRANTY.

PHYSICAL

SYSTEM CONFIGURATION SUBWOOFER
PRODUCT GROUP G, J
LF SUBSYSTEM & LOADING 18 IN, VENTED
ENCLOSURE MATERIAL EXTERIOR GRADE BALTIC BIRCH PLYWOOD
FINISH WEAR RESISTANT TEXTURED BLACK PAINT
CONNECTOR TWO NEUTRIK NL4 SPEAKON
GRILLE POWDER COATED PERFORATED STEEL

DIMENSIONS (±0.13 IN / ±3 MM)
HEIGHT 29.88 / 759
WIDTH 24.63 / 626
DEPTH 19.62 / 498

WEIGHTS (POUNDS / KILOGRAMS)
NET WEIGHT 95.0 / 43.2
SHIPPING WEIGHT 105.0 / 47.7

PERFORMANCE

FREQUENCY RESPONSE
±3 DB 27HZ TO 250HZ (36HZ W/OUT CCEP)
-10 DB 23HZ (25HZ W/OUT CCEP)
RECOMMENDED HIGH-PASS FREQUENCY 20

AXIAL SENSITIVITY (DB SPL, 1 WATT @ 1 M)
SUBBASS 96

NOMINAL INPUT IMPEDANCE (OHMS)
SUBBASS 8

POWER HANDLING (WATTS, CONTINUOUS)
SUBBASS 1000

CALCULATED SPL LIMIT (REFERENCED TO 1 M)
SUBBASS PEAK 132.00
SUBBASS LONG TERM 126.0

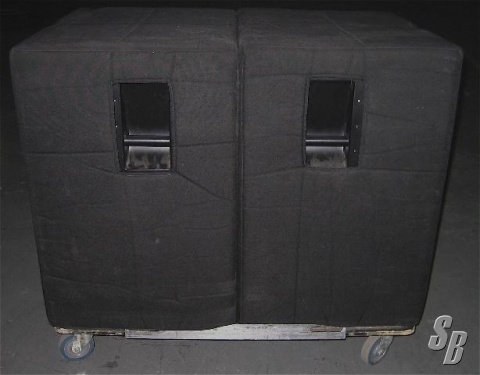

EXTRAS: WHEEL BOARD FOR 2 AND SOFT COVER

MODIFICATIONS: NONE

HISTORY: ON THEATRICAL TOUR FOR 8 YEARS.

COMMENTS: ALL ORIGINAL DRIVERS - SOLD ONLY AS A PAIR - ORIGINAL DRIVERS, NEVER RECONNED, PURCHASED IN 99. YES TO SEEING AND HEARING. IN GOOD CONDITION.

THIS UNIT WAS TOURED
