EV QRX 153/75 (12 BOXES TOTAL)
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on March 02, 2011 - Viewed 101 times

EV QRX 153/75 (YOM: 2005) (S#: TBD) GOOD (7-8)

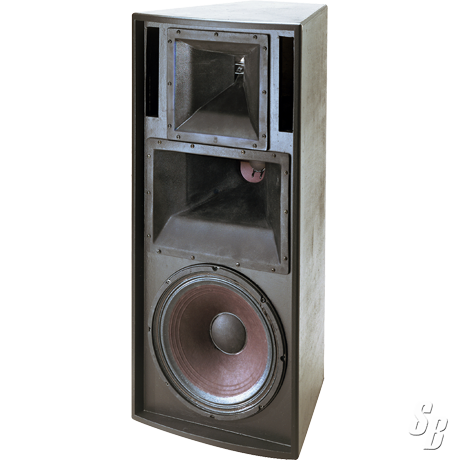

FEATURES: THE QRX-153/75 IS A 15-INCH THREE-WAY, FULL-RANGE LOUDSPEAKER SYSTEM REQUIRES BIAMPING AT 500 HZ AND ITS POWER HANDLING IS 400 -1,600 WATTS LF AND 150 - 600 WATTS HF. HORN-LOADED 8-INCH MIDRANGE DRIVER IS COUPLED TO A ASYMMETRICAL 75° X 50° CONSTANT-DIRECTIVITY HORN AND OPERATES FROM 500 - 1,200 HZ DH7 3-INCH VOICE COIL HF COMPRESSION DRIVER IS MOUNTED ON AN ASYMMETRICAL 75° X 50° CONSTANT-DIRECTIVITY HORN. CONCERT-PROVEN DL15ST WOOFER DELIVERS SOLID BASS TO 45 HZ IN THE LARGE VENTED ENCLOSURE RING-MODE DECOUPLING DELIVERS PRISTINE VOCALS AND RICH, ACCURATE MIDS AND INSTRUMENT REPRODUCTION. THE 15 DEGREE TRAPEZOIDAL ENCLOSURE IS BUILT OF VOID-FREE, GRAIN-ORIENTED 13-PLY BIRCH PLYWOOD FINISHED IN FUTURA, A SPRAYED-ON POLYURETHANE FINISH THAT IS VERY RUGGED. QRX153 COMES COMPLETE WITH L-TRACK RIGGING HARDWARE AND SINGLE-STUD ANCRA FITTINGS.

SPECIFICATIONS:

* FREQUENCY RESPONSE (-3DB): 43 - 18 HZ
* FREQUENCY RESPONSE (-10DB): 42 - 20 HZ
* MAX. SPL / 1M (CALC): 130 DB
* COVERAGE (NOMINAL -6DB) H°: 75 °
* COVERAGE (NOMINAL -6DB) V°: 50 °
* ROTATABLE HORN: YES
* LOW FREQUENCY POWER HANDLING (CONTINUOUS/PROGRAM/PEAK): 400/800/1600 WATTS
* MID/HIGH FREQUENCY POWER HANDLING (CONTINUOUS/PROGRAM/PEAK): 150/300/600 WATTS
* LF TRANSDUCER: DL15X
* MF TRANSDUCER: MF8 8-INCH MF
* HF TRANSDUCER: DH7 3-INCH HF
* LF NOMINAL IMPEDANCE: 8 OHMS
* COLOR: BLACK
* FLYING: YES
* INPUT CONNECTIONS: PARALLEL NEUTRIK® NL4
* CHASSIS SIZE: 15 INCHES
* INTERNAL CROSSOVER: YES
* SPEAKER TYPE: BI-AMP, LO, MID-HIGH, (THREE-WAY OUTPUT)
* WEIGHT NET: 47 KG ( 103.62 LBS )
* DIMENSIONS (HXWXD): 1240 X 467 X 485 MM (48.82" X 18.39" X 19.09")

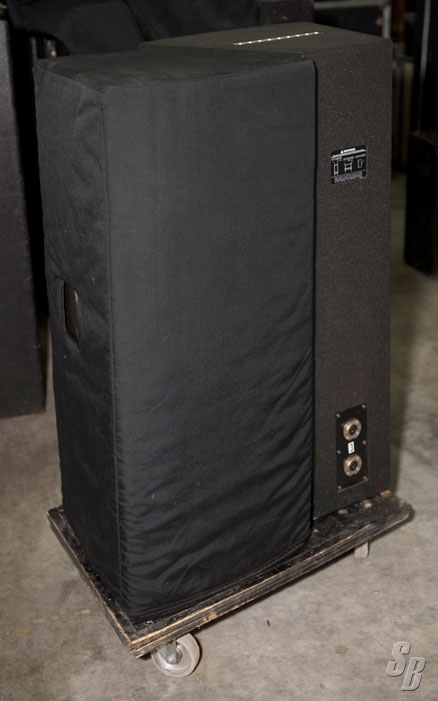

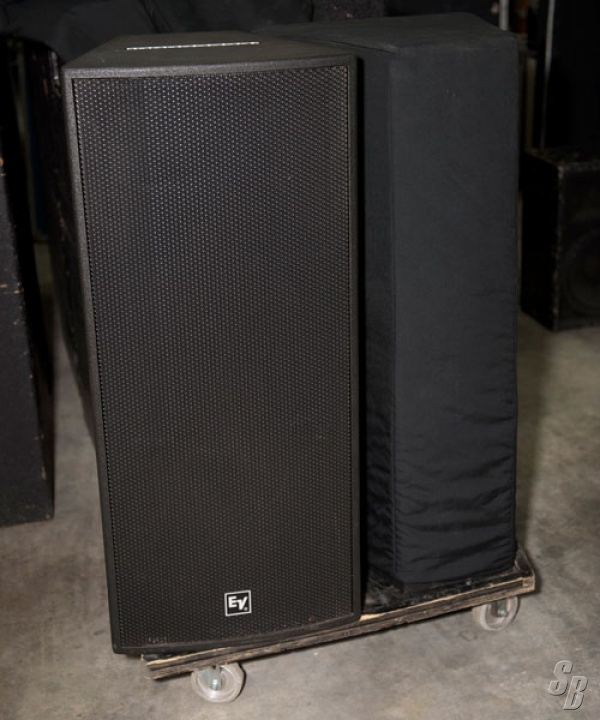

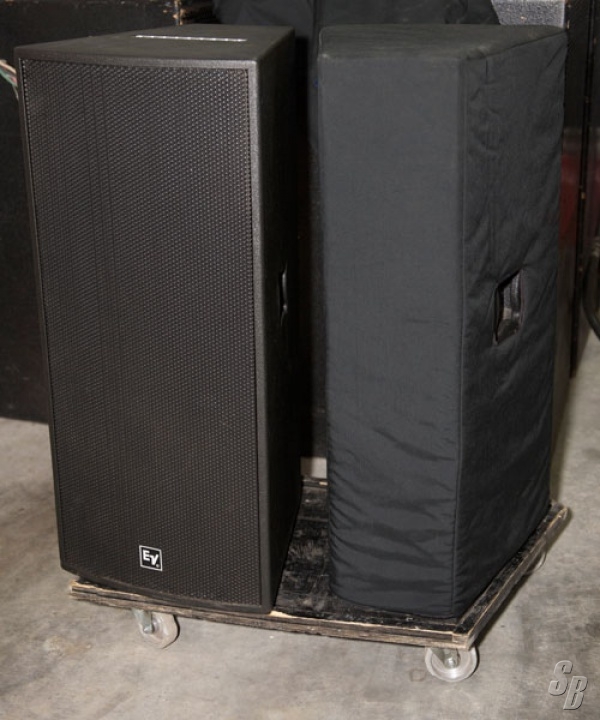

EXTRAS: 4 DOLLY'S THAT HOLD 2 CABS EA
CLOUD 9 COVERS FOR EVERY SPEAKER

MODIFICATIONS: NEW INPUT PLATES TO ACCEPT NL-8 ON 8 SPEAKERS
WILL INCLUDE OR SWITCH BACK TO NL-4 UPON REQUEST.
L-TRACK FLYWARE CLIPS

HISTORY: LOCAL ONE OFF SHOWS. NO TOURING.

COMMENTS: WE HAVE SEVERAL SPARE DRIVERS 8'S, 15'S WHERE WE REPLACED WITH FACTORY NEW DRIVERS OR DRIVERS THAT HAVE BEEN RECONED. SPEAKERS ARE ALL IN GREAT WORKING OPERATION

THIS UNIT WAS NEVER TOURED
