JBL SR 4738 4718 MINIDRIVE (?) (S#: TBD) GOOD (7-8)
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on April 21, 2008 - Viewed 561 times

JBL SR 4738 4718 MINIDRIVE (?) (S#: TBD) GOOD (7-8)

JBL SR PA SYSTEM (FOH OR SIDE FILL SPEAKERS; AMPS

JBL

BSS MINIDRIVE

KLARK-TEKNIK

YORKVILLE

MOTION LABS RAC-PAC

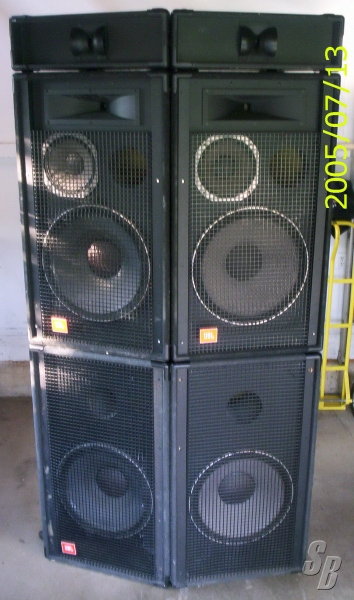

JBL SR4738 3-WAY TOP (QTY = 2)

• 18" LO : 2241G
• 10" MID : 2123H
• 1" COMPRESSION DRIVER : 2417H
• CONSTANT DIRECTIVITY HORN : 2371
• EP-6 CONNECTOR

JBL SR4718 BOTTOM (QTY = 2)

• 18" LO
• EP-6 CONNECTOR
• STACK UNDER SR4738 TO DOUBLE THE LOW FREQUENCY POWER
• OR, PLACE BEHIND SR4738 FOR CARDIOID WOOFER USING MINIDRIVE DSP DELAY ON TOP CAB

JBL 2404H BI-RADIAL HORN, IN STACKABLE ENCLOSURE (2)

• DEPLOY A 4-WAY FOH SYSTEM
• SUPERIOR TOP END (7-20 KHZ)
• CONTROL LEVEL/ MUTES IN HI SEPARATE FROM HI-MID
• MORE TOTAL SYSTEM POWER IN TOP END THAN WITH SR HORN BY ITSELF
• STACKS WITH JBL SR4738
• 100 DEG COVERAGE PATTERN MATCHES 90 DEG HORIZONTAL PATTERN OF HI-MID HORN
• JBL SR SERIES INTERLOCKING CORNER PROTECTORS
• SPEAKON JUMPER FEED FROM BOTTOM SPEAKER. (ITS EP-6 CABLE HAS 4 SPARE CONDUCTORS, 2 OF WHICH ARE AVAILABLE FOR BI-RADIAL HORN OPERATION)

KLARK-TEKNIK DN-301 EQUALIZERS (QTY = 2)

• "CUT ONLY" VERSION OF THE WELL KNOWN DN-300

BSS FDS-336 MINIDRIVE DSP CROSSOVER [6-OUTPUT]

BSS FDS-360 CROSSOVER {3-WAY / 4-WAY}

• 24 DB/OCT LINKWITZ-RILEY FILTER CARDS
• 250 HZ LO-MID CROSS
• 2.2 KHZ MID-HI CROSS
• 7 KHZ HI-BULLET CROSS
• INTERNAL PARAMETRIC EQ BOARD (INSTALLED IN BAND 3 FOR CD-HORN)
• SUPERIOR THAN THE ALTERNATIVE... AN IMPLEMENTATION ON BAND 3 FILTER CARD
• MAINTAINS 24 DB/OCT FILTER ON THE XOVER CARD
• AUDIO PRECISION SYSTEM ONE FREQUENCY RESPONSE MEASUREMENT GRAPHS AVAILABLE ON REQUEST FOR UNIT AS CONFIGURED WITH CARDS AND EQ BOARD.

YORKVILLE AP-4040 AMPLIFIER, 1250 W/CH

• QTY=2.

YORKVILLE AP-2020 AMPLIFIER, 600 W/CH

YORKVILLE AP-1200 AMPLIFIER, 600 W/CH

MOTION LABS RAC-PAC POWER DISTRO

• 30A, 3-PHASE TWISTLOCK INPUT ON FRONT OF PANEL
• 6 X 15 AMP BREAKERS ON FRONT OF PANEL
• 120V/ SINGLE PHASE U-GROUND ("EDISON") RECEPTACLES INSIDE AMP RACK
• RACK MOUNTS INTO AMP RACK'S REAR OR FRONT RAILS; CLEAN, FAST AND RELIABLE SET UP AT GIG

AMP RACK

• 20 RU
• NATURAL WOOD
• ALUMINUM CASE
• 4 HANDLES
• WHEELED TRAY BASE
• HEAVY DUTY LATCHES
• RAILS ON BOTH FRONT AND REAR; PERMITS GREAT FLEXIBILITY IN PLACEMENT OF EP-6 OUTPUT PANEL. (E.G., ON REAR FACE, UNSEEN FROM SIDE SHOWING AMPLIFIER FACEPLATES

CASE, FOR CABLE KIT

• ALUMINUM
• WHEELS
• HANDLES ON EITHER SIDE, PLUS ON FRONT OF LID
• ACCOMODATES ALL AC & P6 CABLES
• TWO ALUMINUM STORAGE TRAYS SIT ABOVE MAIN CARGO/ JUST BENEATH LID

EP-6-EP-6 SPEAKER CABLE

• QTY=1
• 100'
• FEMALE P6 BOTH ENDS
• AWG #13
• SPECIAL INSULATION AND OVERALL JACKET; DESPITE ITS LARGER CONDUCTORS, HAS SMALLER O.D. THAN THE SOW AWG #14 LISTED BELOW

EP-6-EP-6 SPEAKER CABLE

• QTY=4
• 50'
• FEMALE P6 BOTH ENDS
• AWG #14
• S.O.W. RATED; VERY FLEXIBLE EVEN WHEN COLD

AC POWER CABLE WITH TAILS, 4-COND, 30 AMPERE

• TAILS TO FEMALE TWISTLOCK, 30 AMPERE
• 20'

AC POWER CABLE, 4-COND, 30 AMPERE

• MALE TO FEMALE TWISTLOCK, 30 AMPERE
• 50'

AC POWER CABLE, 4-COND, 30 AMPERE

• MALE TO FEMALE TWISTLOCK, 30 AMPERE
• 35'

AC POWER CABLE, 4-COND TO 5-COND ADAPTER

• MALE 4-PIN TWISTLOCK, 30 AMPERE
• FEMALE 5-PIN TWISTLOCK, 30 AMPERE
• 6'
• ALLOWS 3-PHASE DISTRO TO BE USED ON 2-PHASE SHOWS. 4 OF 6 BREAKERED CIRCUITS ENERGIZED IN DISTRO.

XLR "XLR INPUT LOOM" CABLE

• QTY=4
• FEEDS UP TO 4 AMP INPUTS FROM 1 CROSSOVER BAND OUTPUT
• SINGLE POINT GROUND; REST OF DAISY CHAIN FLOATING
• PREVENTS HUM (BY BREAKING GROUND LOOPS INVOLVING AMPLIFIER INPUTS).

XLR "XLR INPUT LOOM" CABLE

• QTY=4
• FEEDS UP TO 2 INPUTS FROM 1 CROSSOVER BAND OUTPUT
• SINGLE POINT GROUND; REST OF DAISY CHAIN FLOATING.

P6 CONNECTORIZED; NO PASSIVE CROSSOVERS

REHEARSAL STUDIO SIDEFILLS; LOCAL SHOWS; NEVER TOURED.

NICE PACKAGE FOR AN INSTALL, OR FOR DUTY ON REGIONAL STAGES.

THIS UNIT WAS NEVER TOURED
