LAB GRUPPEN PLM+ 12K44
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on February 17, 2017 - Viewed 277 times

LAB.GRUPPEN PLM+ 12K44 (YOM: ?) (S#: TBD) SUPERB (8-9)

FEATURES: SEE SPECIFICATIONS BELOW

EXTRAS: POWER CABLE

MODIFICATIONS: NONE

HISTORY: USED IN CHURCH INSTALL. CHURCH CLOSED - ITEM FOR SALE.

COMMENTS: NONE

THIS UNIT WAS NEVER TOURED

WWW.SOUNDBROKER.COM CELEBRATING OUR 20TH ANNIVERSARY LINKING BUYERS AND SELLERS TOGETHER SINCE 1997 FOR NEW AND USED PROFESSIONAL AUDIO, LIGHTING, STAGING, PROJECTORS, AND VIDEO EQUIPMENT.

SPECIFICATIONS:
MODEL PLM 12K44
GENERAL
PROCESSING / NETWORK LAKE / DANTE
NUMBER OF AMPLIFIER CHANNELS 4
TOTAL BURST POWER ALL CHANNELS (SHARE AMONG CHANNELS WITH RPM) 12000 W
MAX OUTPUT POWER (ALL CHANNELS DRIVEN)1
2 OHMS 3000 W
2.67 OHMS 3000 W
4 OHMS 3000 W
8 OHMS 1900 W
16 OHMS 950 W
HI-Z 70 V 3000 W
HI-Z 100 V 3000 W
MAX OUTPUT POWER SINGLE CHANNEL1
2 OHMS 4400 W
2.67 OHMS 5900 W
4 OHMS 4600 W
8 OHMS 2300 W
16 OHMS 1150 W
HI-Z 70 V 3300 W
HI-Z 100 V 4700 W
AMPLIFIER OUTPUT MODULES (ALL MODELS, ALL CHANNELS)
PEAK OUTPUT VOLTAGE 194 V
MAX. OUTPUT CURRENT 67 A
RATIONAL POWER MANAGEMENT (RPM) REGARDLESS OF MODEL, ANY CHANNEL HAS POTENTIAL TO DELIVER THE MAX SINGLE CHANNEL OUTPUT POWER
DEFAULT VOLTAGE LIMITATION (CAN BE LIFTED WITH RPM CONFIGURATION) 175 V
PROTECTION FEATURES CURRENT AVERAGE LIMITER (CAL), VERY HIGH FREQUENCY PROTECTION (VHF), DIRECT CURRENT PROTECTION (DC), SHORT CIRCUIT PROTECTION, CURRENT-CLIP LIMITER, VOLTAGE CLIP LIMITER, TEMPERATURE PROTECTION
AUDIO PERFORMANCE (AMPLIFIER PLATFORM WITH DIGITAL INPUT)
THD + N 20 HZ - 20 KHZ FOR 1 W < 0.05 %
THD + N AT 1 KHZ AND 1 DB BELOW CLIPPING < 0.04 %
Dynamic range > 114 DB
CHANNEL SEPARATION (CROSSTALK) AT 1 KHZ > 70 DB
FREQUENCY RESPONSE (1 W INTO 8 OHM, 20 HZ - 20 KHZ) +/- 0.05 DB
INTERNAL SAMPLE RATE / DATA PATH 48 / 96 KHZ / 32 BIT FLOATING POINT
PRODUCT PROPAGATION DELAY AES 96 KHZ / ANALOG INPUT 1.61 / 1.68 MS
LAKE PROCESSING
LOUDSPEAKER PROCESSING UP TO 4 MODULES OF CLASSIC/LINEAR-PHASE/FIR CROSSOVER, EQ, DELAY, LIMITERMAX™ - PEAK AND RMS LIMITERS
SYSTEM TUNING GROUP CONTROL WITH RAISED COSINE™ MESA EG™ ASYMMETRIC FILTERS
INPUT REDUNDANCY / MATRIX AUTOMATIC 4 LEVEL INPUT REDUNDANCY / 4 INPUT MIXERS
SYSTEM INTEGRATION COMPREHENSIVE 3RD PARTY PROTOCOL OVER UDP ETHERNET
MEASUREMENT & ANALYSIS
PILOT TONE GENERATION AND ANALYSIS YES
LOAD IMPEDANCE ANALYSIS YES
REAL TIME ANALYZER (RTA), 3RD PARTY INTEGRATION YES
DANTE AUDIO NETWORK
DANTE I/O 8 X 8
NETWORK TOPOLOGY / REDUNDANCY FLEXIBLE TOPOLOGY / SUPPORTS DAISY-CHAINED AND DUAL REDUNDANT NETWORKS
SAMPLE RATES / TRANSPORT 48, 96 KHZ / UNI + MULTICAST
NETWORK LATENCY 0.25, 0.5, 1.0, 2.0, 5.0 MS
DEVICE PRESETS
LOCAL MEMORY LOCATIONS FOR THE SETTINGS OF THE PRODUCT 100
AES INPUTS
INPUTS 4 AES INPUTS
SUPPORTED SAMPLE RATES / RESOLUTION 44.1, 48, 88.2, 96, 176.4, 192 KHZ / UP TO 24 BITS
SAMPLE RATE CONVERSION THD+N 20 HZ - 20 KHZ UNWEIGHTED 0.00003 %
ANALOG INPUTS
INPUTS 4 HIGH QUALITY INPUTS WITH ISO-FLOAT GROUND ISOLATION
MAXIMUM INPUT / DIGITAL REFERENCE +26 DBU / +21 DBU
SAMPLING RATE / RESOLUTION 96 KHZ / 24 BIT
INPUT IMPEDANCE BALANCED / UNBALANCED 20 / 10 KOHM
THD+N (TYPICAL AT 1 KHZ UNWEIGHTED) 0.00022 %
THD+N (TYPICAL AT 20 HZ AND 20 KHZ UNWEIGHTED) 0.00033 %
LIMITERS
ADJUSTABLE INTER-SAMPLE VOLTAGE PEAK LIMITER (ISVPL) 17.8 - 194 V, STEP SIZE 0.1 V
CURRENT PEAK LIMITER < 300 ms 67 A peak
Current Average Limiter (CAL) > 300 MS 33 ARMS
MAXRMS (RMS VOLTAGE LIMITER) YES
MAXPEAK (PEAK VOLTAGE LIMITER) YES
GAIN
AMPLIFIER GAIN 22 - 44 DB, STEP SIZE 0.1 DB
OUTPUT ATTENUATOR -INF TO 0 DB, STEP SIZE 0.25 DB

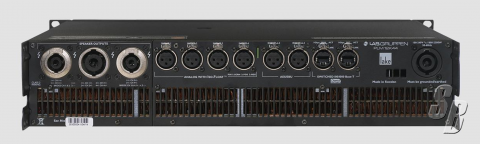

BACK PANEL INTERFACE
ANALOG, 2-CHANNEL I/O (INPUT + LINK) 4 X 3-PIN XLR, ELECTRONICALLY BALANCED
AES / EBU / I/O (INPUT + LINK) 2 X 3-PIN XLR
OUTPUT CONNECTORS NEUTRIK SPEAKON (1 X NLT8, 2 X NLT4) (SPEAKON POSTS ON THIS AMP)
AUTO 10/100, AUTO UPLINK 2 X RJ45 ETHERCON
CONTROL AND MONITORING INTERFACE VIA ETHERNET FOR LAKE CONTROLLER SOFTWARE, OR DLM (THE 3RD PARTY PROTOCOL)
DETACHABLE MAINS CORD NEUTRIK POWERCON RATED AT 250V/32A
COOLING THREE FANS, FRONT-REAR AIRFLOW, TEMPERATURE CONTROLLED SPEED

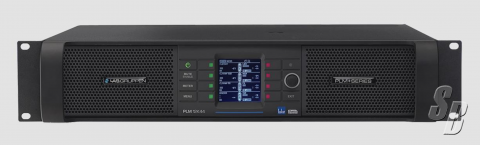

FRONT-PANEL USER INTERFACE
DISPLAY 2.5 INCH, BLACK / WHITE, DAYLIGHT READABLE LCD
FAULT/WARNING/LIMIT/CLIP INDICATORS RGB LEDS AND DETAILED FAULT DESCRIPTION ON DISPLAY
MUTE AND SOFT FUNCTION BUTTONS 8 PROVIDED
STANDBY POWER BUTTON ON/STANDBY
MUTE ENABLE BUTTON ENABLES MUTING OF OUTPUTS AND INPUTS VIA SOFT-BUTTON KEYPAD
METER BUTTON TOGGLES THROUGH METER VIEWS
MENU BUTTON PROVIDES A MENU DRIVEN INTERFACE FOR FULL FUNCTION FRONT PANEL CONTROL
ROTARY ENCODER YES
EXIT BUTTON PROVIDES A “BACK” FUNCTION
MAINS POWER
NOMINAL VOLTAGE 100 - 240 VOLT AC 45 - 66 HZ
OPERATING VOLTAGE 70-265 V AC
MAINS WALL PLUG NEMA L5-30 "TWIST LOCK" 125 V / 30 A, AND CEE 7/7 "SCHUKO" 230 V / 16 A
POWER SUPPLY FEATURES
SOFT START / INRUSH POWER YES/ MAX 8 AMPERE
POWER FACTOR CORRECTION (PFC) 0.98
REGULATED SWITCH MODE POWER SUPPLY (R.SMPS) YES
BREAKER EMULATION LIMITER (BEL) CONFIGURABLE CURRENT THRESHOLD AND BREAKER PROFILE
BEL MAX CURRENT THRESHOLD 25 A
POWER AVERAGE LIMITER (PAL) YES
UNDER VOLTAGE LIMITER (UVL) YES
MAINS UNDERVOLTAGE AND OVERVOLTAGE PROTECTION AND MAINS GLITCH TOLERANCE YES
