TVI TURNKEY SOUND SYSTEM
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on February 11, 2017 - Viewed 884 times

BIAMP, TRUE VISION, INC. (TVI) C210II DP-218S (YOM: ?) (S#: TBD) SUPERB (8-9)

FEATURES: THIS IS A COMPLETE TURNKEY SYSTEM.

IT CONTAINS THE FOLLOWING:

16 - C210II TOPS DUAL 10" TOPS
10 - DP-218S DUAL 18" SUBS
8 - INSTALLED ICE AMP MODULES TO MAKE THE TOPS SELF POWERED
5 - INSTALLED ICE AMP MODULES TO MAKE THE SUBS SELF POWERED
2 - FLY FRAMES
5 - ROLLING DOLLIES FOR THE SUBS

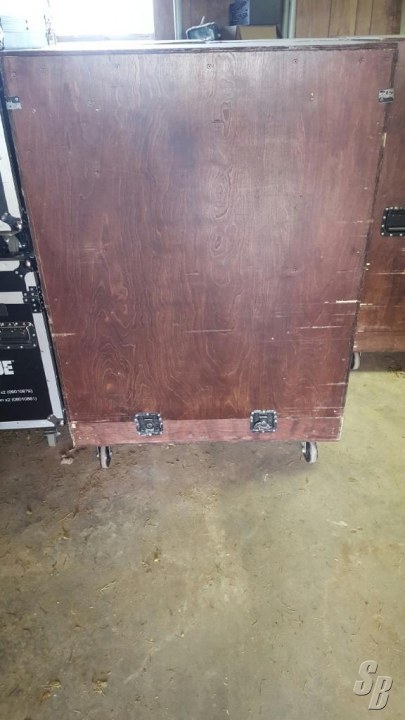

4 - WOOD SHOP BUILD ROAD CASES FOR THE TOPS
8 - NL8 JUMPER FOR THE TOPS
5 - NL4 JUMPER FOR THE SUBS
13 - POWERCON POWER CORDS FOR AMPS
2 - BIAMP NEXIA SP SYSTEM PROCESSORS
1 - SMALL RACK FOR NEXIAS

COMMENTS:
* THIS SYSTEM HAS BEEN PROFESSIONALLY USED AND MAINTAINED BY US SINCE WE PURCHASED IT NEW.
* IT IS IN GREAT CONDITION. WE JUST PUT ON A FRESH COAT OF SPEAKER PAINT AND REPLACED SOME CASTERS. THIS IS A GREAT RIG.
* IT CAN BE GROUND STACKED OR FLOWN.
* IT CAN BE ONE LARGE SYSTEM OR TWO SMALL ONES.
* CONNECT YOUR CONSOLE TO THE PROCESSORS AND YOU ARE READY TO GO.

WE ARE GOING A DIFFERENT DIRECTION SO IT'S TIME FOR THIS SYSTEM TO GET A NEW HOME WITH SOMEONE WHO CAN USE IT.

HISTORY:
* CONFERENCES, CORPORATE, CHURCH.
* IT HAS DONE MANY EVENTS OVER THE LAST 2 YEARS.
* WE USED IT TO DO CONCERTS, CORPORATE EVENTS, CONFERENCES, AND TRADE SHOWS.
* IT HAS DONE EVERYTHING FROM MEDIUM SIZE CONCERTS FOR 3000 PEOPLE DOWN TO SMALL 500 SEAT SHOWS.
* WE HAVE DONE SOME LARGE CORPORATE EVENTS IN SMALL 6000 SEAT HOCKEY AREAS.

EXTRAS: CABLES, PROCESSORS, CASES, CARTS.

MODIFICATIONS: NONE

THIS UNIT WAS NEVER TOURED

THE FOLLOWING IS FROM THE MANUFACTURER'S WEBSITE:

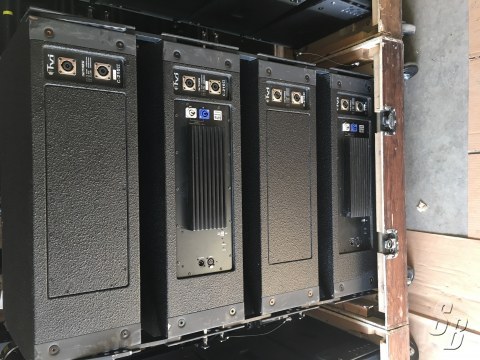

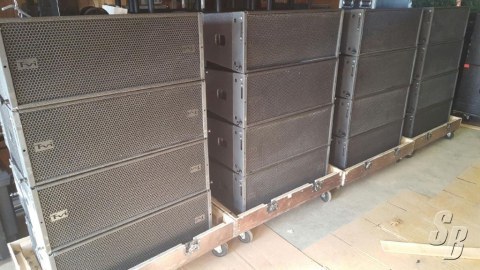

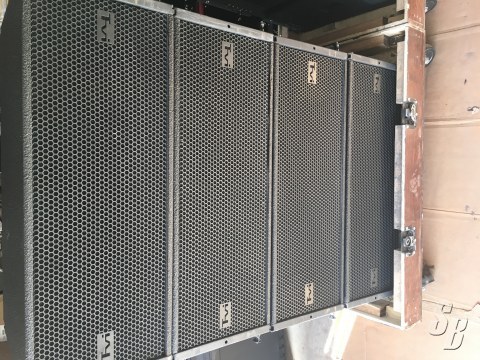

C210II
TRI-AMP LINE ARRAY ENCLOSURE
OPERATES DOWN TO 70HZ
INTEGRATED WAVE GUIDE
ARRAY UP TO 16 ELEMENTS
10:1 STATIC LOAD FACTOR
EASILY GROUND STACKABLE
POWERED VERSION AVAILABLE

APPLICATIONS
TOURING APPLICATIONS
PORTABLE ENTERTAINMENT
THEATERS
HOUSES OF WORSHIP
BALLROOMS
DISCOS & CLUBS

THE C-210II IS LOADED WITH DOUBLE 10″ LF/MF AND A SINGLE HIGH ENERGY HF DRIVER. EACH ENCLOSURE IS CONSTRUCTED OF HIGH GRADE BIRCH PLY-WOOD AND IS CUSTOM FITTED WITH STEEL FLY HARDWARE THAT HAS BEEN TEST RATED FOR A 7:1 STATIC LOAD, HANGING UP TO 16 ENCLOSURES IN A SINGLE ARRAY. OUR USER FRIENDLY HARDWARE ALLOWS FOR HANGING AND GROUND STACKING APPLICATIONS, PERMITTING THE USER TO STACK UP TO SIX ENCLOSURES.

ALL C-210II ENCLOSURES ARE HAND WIRED USING PREMIUM 14 GAUGE WIRE AND NEUTRIK BRAND NL8 CONNECTORS. ALL DRIVERS ARE BUILT WITH CAST FAME BASKETS FOR STRENGTH AND LONGEVITY. OUR COMPRESSION DRIVERS HAVE REPLACEABLE TITANIUM DIAPHRAGMS FOR SUPERB SOUND QUALITY, PERFORMANCE AND DURABILITY. WE USE A STANDARD PHASE PLUG DESIGN TO CONTROL THE ISOPHASIC WAVE FORM AS WELL AS A WAVE GUIDE SYSTEM FOR SMOOTH COVERAGE AND COUPLING. OUR COMPONENTS ARE DESIGNED AND BUILT TO A COMMERCIAL STANDARD AND HAVE A PROVEN TRACK RECORD ON TOURS RANGING FROM STADIUMS TO FESTIVALS OF UP TO 30 SHOWS PER MONTH WITH PRACTICALLY A NONEXISTENT FAILURE RATE.

ALL C-210II ENCLOSURES ARE EQUIPPED WITH A REMOVABLE BACK PANEL THAT CAN BE DISCONNECTED AND REPLACED BY AN INTERNAL TVI MULTI CHANNEL “CLASS D” POWER AMPLIFIER MODULE. EACH POWER AMPLIFIER HAS A BUILT IN MULTI-CHANNEL PROCESSOR THAT HAS BEEN CHAMBER TUNED FOR THE C-210II TO ACHIEVE A FLAT RESPONSE CURVE WITH PRE SET LIMITERS, DSP AND CROSSOVER POINTS. ONE AMPLIFIED C-210II ENCLOSURE WILL ALSO POWER ONE ADDITIONAL NON-POWERED C-210II ENCLOSURE IN TRI AMP MODE BY DAISY CHAINING AN NL8 CABLE.
TRI AMP CONFIGURATION (NL8) 2×10″, 1×3″ DIAPHRAGM
FREQUENCY RESPONSE (+/-3 DB) 70 HZ – 19 KHZ
PROGRAM POWER (WATTS) LF-600, LF2-600, HF-200
RMS POWER (WATTS) LF-300, LF2-300, HF-100
SPL & SENSITIVITY (1W/1M) 136DB / 110DB
COVERAGE ANGLE 100 X 10 DEGREES
NOMINAL IMPEDANCE LF-8OHM, LF2-8OHM, HF-8OHM
DIMENSIONS (HXWXD) 31.49″ X 17.51″ X 11.81/9.05″
WEIGHT & MATERIAL 103 LBS 3/4″ BIRCH PLYWOOD

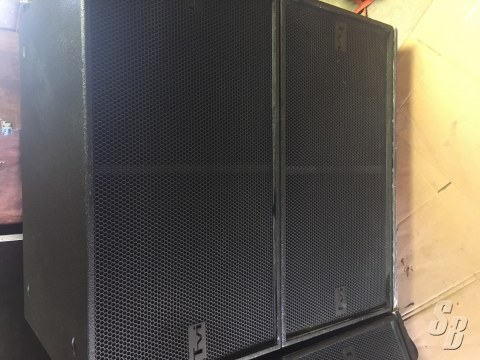

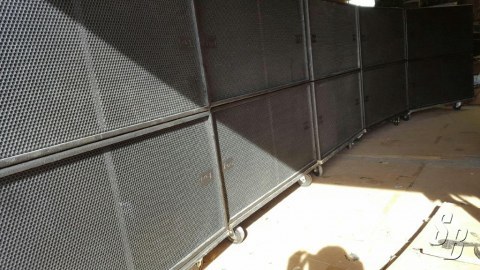

DP 218 SUBWOOFER

FRONT LOADED SUBWOOFER
OPERATES DOWN TO 35HZ
EASILY GROUND STACKABLE
POWERED VERSION AVAILABLE

APPLICATIONS
TOURING APPLICATIONS
PORTABLE ENTERTAINMENT
THEATERS
HOUSES OF WORSHIP
BALLROOMS
DISCOS & CLUBS

THE DP-218S IS A FRONT LOAD SUBWOOFER LOADED WITH DOUBLE 18″ WOOFERS. EACH ENCLOSURE IS CONSTRUCTED OF HIGH GRADE BIRCH PLY-WOOD. THE DP-218S SUBWOOFER HAS BEEN DESIGNED FOR GROUND STACKING APPLICATIONS. THIS SUBWOOFER CAN BE CUSTOM ORDERED WITH FLY HARDWARE TO FLY WITH THE BT-1200 AND C-208 LINE ARRAY SYSTEMS FOR ADDITIONAL COST.

ALL DP-218S ENCLOSURES ARE HAND WIRED USING PREMIUM 14 GAUGE WIRE AND NEUTRIK BRAND NL4 CONNECTORS. ALL DRIVERS ARE BUILT WITH CAST FAME BASKETS FOR STRENGTH AND LONGEVITY. THE ENCLOSURE IS A FRONT LOADED DESIGN THAT IS GREAT FOR MANY APPLICATIONS. OUR COMPONENTS ARE DESIGNED AND BUILT TO A COMMERCIAL STANDARD AND HAVE A PROVEN TRACK RECORD ON TOURS RANGING FROM STADIUMS TO FESTIVALS OF UP TO 30 SHOWS PER MONTH WITH PRACTICALLY A NONEXISTENT FAILURE RATE.

ALL DP-218S ENCLOSURES ARE EQUIPPED WITH A REMOVABLE BACK PANEL THAT CAN BE DISCONNECTED AND REPLACED BY AN INTERNAL TVI TWO CHANNEL “CLASS D” POWER AMPLIFIER MODULE. EACH POWER AMPLIFIER HAS A BUILT IN MULTI-CHANNEL PROCESSOR THAT HAS BEEN CHAMBER TUNED FOR THE DP-218S TO ACHIEVE A FLAT RESPONSE CURVE WITH PRE SET LIMITERS, DSP AND CROSSOVER POINTS. ONE AMPLIFIED DP-218S SUBWOOFER ENCLOSURE WILL ALSO POWER ONE ADDITIONAL NON-POWERED DP-218S SUBWOOFER ENCLOSURE BY DAISY CHAINING AN NL4 CABLE.
FRONT LOADED SUB (NL4) 2×18″
FREQUENCY RESPONSE (+/-3 DB) 35 HZ – 210 HZ
PROGRAM POWER (WATTS) LF-2000
RMS POWER (WATTS) LF-1000
SPL & SENSITIVITY (1W/1M) 136DB / 102DB
COVERAGE ANGLE NON-DIRECTIONAL
NOMINAL IMPEDANCE LF-4OHM
DIMENSIONS (HXWXD) 22.08″ X 41.06″ X 30.70″
WEIGHT & MATERIAL 147.70 LBS 3/4″ BIRCH PLYWOOD
