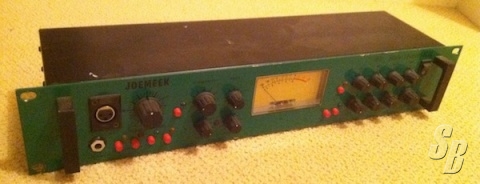

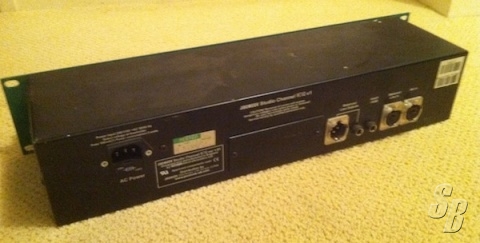

JOE MEEK VC1Q STUDIO CHANNEL SINGLE CHANNEL COMPRESSOR
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on September 11, 2012 - Viewed 102 times

JOE MEEK VC1Q (YOM: ?) (S#: TBD) SUPERB (8-9)

FEATURES: JOE MEEK VC1Q STUDIO CHANNEL SINGLE CHANNEL COMPRESSOR.

TECHNICAL SPECIFICATIONS:

MICROPHONE INPUT: XLR INPUT 3KOHM APPROX. TO SUIT 200 OHM MICROPHONES.; SWITCHABLE 48V PHANTOM POWER.; INPUT LEVEL FROM -70DB TO 0DB; PUSH BUTTON MIC/LINE SWITCH WITH LED INDICATOR FOR 'LINE'.; PUSH BUTTON 48V PHANTOM SUPPLY SWITCH WITH LED INDICATOR.
LINE INPUTS: XLR INPUT 10K IMPEDANCE FLOATING BALANCED. INSTRUMENT INPUT 150K IMPEDANCE UNBALANCED.
OVERLOAD MARGIN: 30DB ON MIC AND LINE INPUTS IN NORMAL OPERATION.
GAIN: LINE IN -6DB TO 24DB · INSTRUMENT IN 0DB TO 35DB · MIC IN 15DB TO 70DB; INSERT GAIN 10DB
NOISE: LINE IN AT LEAST 80DB BELOW OPERATING LEVEL; MIC IN AT LEAST 125.5DB BELOW INPUT AT 50DB GAIN 20HZ TO 20KHZ ACROSS
200OHM LOAD RESISTOR. SELF NOISE APPROX -132DB
HARMONIC DISTORTION: GENERALLY WITHIN 0.01% RISING TO APPROX. 0.14% AT 4DB ABOVE NOMINAL
OUTPUT LEVEL. 2ND HARMONIC PREDOMINANT.
AMPLITUDE FREQUENCY RESPONSE: LINE IN 6HZ TO 20KHZ WITHIN 0.5DB; MIC IN 8HZ TO 20KHZ WITHIN 1DB; HIGH PASS FILTER 3DB DOWN AT 75HZ, 12DB PER OCTAVE.
FILTER: PUSH BUTTON HIGH PASS FILTER SWITCH (AND INDICATOR) OPERATES AT 75HZ AT
12DB PER OCTAVE.
OUTPUTS: HIGH LEVEL BALANCED 50 OHM +4DBU FOR 0VU (VARIABLE); MAX. BALANCED OUTPUT APPROX. +26DBU; INSERT, TIP AND RING JACK SOCKET. 400 OHM -10DBU OUTPUT 22K OHM
INPUT.
COMPRESSOR: PHOTO-RESISTIVE SERVO OPERATED; RATIO MINIMUM APPROX. 1.5 TO 1; RATIO MAXIMUM APPROX. 8 TO 1 (POSITION 5); ATTACK TIME 1MS MIN. 7MS MAX. (VARIABLE); RELEASE TIME 200MS MIN 3S MAX. (VARIABLE)
ENHANCER: PERFORMANCE DETAILS NOT RELEASED.; VC1Q VERSION ALLOWS HARMONIC ENHANCEMENT AND DE-ESS EFFECT.; CONTROLS FOR Q, DRIVE AND EFFECT MIX.
MEEQUALIZER: SHELVING HIGH AND LOW FREQUENCY CONTROLS (8K AND 100HZ); MID FREQUENCY CUT/BOOST CONTROL; MID FREQUENCY CENTRE CONTROL (1KHZ - 4KHZ); BYPASS SWITCH WITH INDICATOR; CUT/BOOST LEVELS APPROX 15DB
POWER: 3.4 WATTS.; IEC SOCKET FOR POWER CABLE.; REVERSIBLE FUSE HOLDER FOR 230VAC AND 115VAC POWER INPUT.
HOUSING; 2U RACK MOUNTING TOTALLY ENCLOSED ALUMINIUM CASE.; DEPTH APPROX. 250MM.; WEIGHT 1.5KGS.

EXTRAS: SOLD AS-IS WITH IEC POWER CABLE.

MODIFICATIONS: GREAT OPTO-COMPRESSOR!

HISTORY: ONE OWNER, SMALL SOUND COMPANY/RECORDING FACILITY.

COMMENTS: SMALL AMOUNT OF COSMETIC DAMAGE, OTHERWISE IN GREAT SHAPE!

THIS UNIT WAS NEVER TOURED
