KLARK TEKNIK DN320 DUAL 2/3 OCTAVE PRESET GRAPHIC EQUALIZER
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on January 29, 2006 - Viewed 248 times

THE KLARK TEKNIK DN320 IS A DUAL CHANNEL, 16 BAND EQUALISER OFFERING 12DB OF CUT OR BOOST IN 2/3 OCTAVE STEPS BETWEEN THE FREQUENCIES OF 20HZ AND 20KHZ.

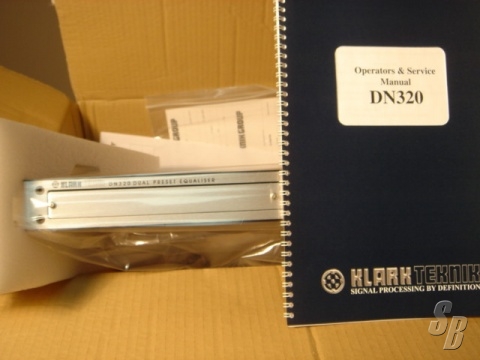

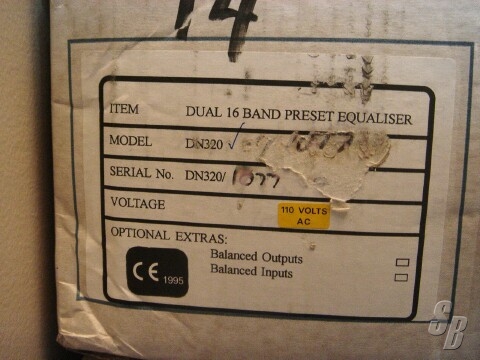

LIKE NEW IN FACTORY PACKAGING, HAS NOT BEEN USED SINCE BEING 100% FACTORY REFURBISHED BY KT.

THE BYPASS SWITCH SILENTLY REMOVES THE GRAPHIC EQUALISER SECTIONS FROM THE SIGNAL PATH. INCORPORATED IN THE BYPASS SWITCH IS A SUBSONIC 18DB/OCTAVE ROLL-OFF FILTER (-3DB @ 30HZ). OTHER FEATURES INCLUDE AN OVERLOAD LED PER CHANNEL, WHICH WARNS OF IMPENDING OVERLOAD AT ANY POINT IN THE EQUALISER. A DETACHABLE SECURITY COVER IS AN INHERENT FEATURE TO PREVENT UNAUTHORISED PERSONNEL FROM TAMPERING WITH THE CONTROL SETTINGS. INDIVIDUAL CHANNEL LEVEL CONTROLS, OVERLOAD INDICATORS AND BYPASS SWITCHES WITH INCORPORATED LOW CUT FILTERS ARE FEATURED ON THE CONTROL PANEL.

SEE THE COMPLETE SPEC SHEET BY GOING TO HTTP://WWW.SOUNDBROKER.COM/PROCESSING AND CLICKING ON VIEW MANUAL.

KLARK TEKNIK UTILISE A PROPRIETARY FILTER CIRCUIT WHICH REPLACES WHICH REPLACES THE CONVENTIONAL INDUCTOR BASED CIRCUIT, AT THE SAME TIME, OFFERING SEVERAL PERFORMANCE ADVANTAGES. INDUCTOR BASED CIRCUITS ARE HEAVY, EXPENSIVE TO PRODUCE AND SUFFER FROM LOW FREQUENCY DISTORTION AND INDUCED HUM. KLARK TEKNIKæ‹… PROPRIETARY FILTERS ON THE CONTRARY SUFFER NONE OF THESE PROBLEMS, YET OFFER UNEQUALLED PHASE RESPONSE AND CONTROL ACCURACY WITH THE ADDITIONAL BENEFITS OF LOW NOISE AND MINIMAL RIPPLE. THE NATURE, SHAPE AND WAY IN WHICH INDIVIDUAL EQUALISER FILTERS COMBINE, HAS A PROFOUND EFFECT ON THE CONTROL PROVIDED BY THE EQUALISER AND ON THE RESULTING QUALITY OF SOUND. THE MAJORITY OF APPLICATIONS WITHIN THE SOUND REINFORCEMENT, BROADCAST AND RECORDING FIELDS, REQUIRE A SMOOTH AND CONTINUOUS EQUALISATION RESPONSE CURVE IN ORDER TO CORRECTLY CONTOUR THE OVERALL RESPONSE CHARACTERISTICS OF A SOUND SYSTEM, LOUDSPEAKER, RECORDING EFFECT OR AUDIO CHANNEL. TO ACHIEVE THIS, THE INDIVIDUAL FILTERS MUST BE CAPABLE OF COMBINING SMOOTHLY TOGETHER TO RESULT IN A CONTINUOUS RESPONSE CURVE, FREE FROM SHAPE DISCONTINUITIES IN ORDER TO AVOID UNWANTED AUDIBLE PEAKS OF ANOMALIES IN THE FINAL SOUND.

SOUNDBROKER IS AN AUTHORIZED RESELLER OF KLARK TEKNIK

CLICK HERE FOR THE SPEC SHEET
