KLARK TEKNIK DN6000
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on January 20, 2009 - Viewed 243 times

KLARK TEKNIK DN6000 (YOM: ?) (S#: TBD) GOOD (7-8)

FEATURES: FOR SALE IS A KLARK TEKNIK DN6000 REAL TIME AUDIO ANALYZER THE DN6000 REAL TIME ANALYSER (CONFORMING TO THE TYPE 1 REQUIREMENTS OF IEC804: 1985 – STANDARD SPECIFICATION FOR INTEGRATING / AVERAGING SOUND LEVEL METERS), OFFERS TIME AND FREQUENCY ANALYSIS FACILITIES TO RIVAL UNITS COSTING MANY TIMES MORE. DN6000 OPERATES IN MANY MODES. REAL TIME FREQUENCY ANALYSIS, WITH PEAK HOLD AND A / C WEIGHTING IS AVAILABLE IN 1/3 AND 1/6 OCTAVE RESOLUTIONS, ALONG WITH REAL TIME FREQUENCY SPECIFIC SPL READING VIA A MOVEABLE CURSOR.

THE USER CAN CONDUCT TIMED ANALYSES OF BETWEEN 25MS AND 180 HOURS, THEN APPLY RT60, LEQ, LEQ AND DELAY TIME MEASUREMENTS TO THEM. 66 NON-VOLATILE USER MEMORIES ARE PROVIDED, AND IT IS POSSIBLE TO COMPARE A STORED ANALYSIS WITH THE CURRENT READING.

DN6000 FEATURES AN ONBOARD PRINT DRIVER WHICH ALLOWS THE USER TO PRINT DIRECTLY TO A COMPATIBLE PRINTER. IT IS ALSO FITTED WITH A SERIAL PORT FOR CONNECTION TO A PC SO THAT ANY PRINT FUNCTION CAN BE DISPLAYED ON A COMPUTER SCREEN AND THEN PRINTED FROM THERE IF REQUIRED.

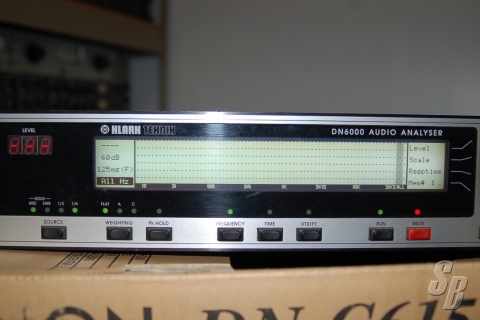

• HIGH CONTRAST, HIGH BRIGHTNESS, BACKLIT, BLACK AND WHITE LCD DISPLAY FOR SOFTWARE CONTROL OF BRIGHTNESS AND CONTRAST.

• RED LED DISPLAY FOR CONSTANT READ OUT OF SIGNAL LEVEL.

• CENTRONICS PRINTER PORT FOR DIRECT PRINTING TO ANY LQ COMPATIBLE PRINTER.

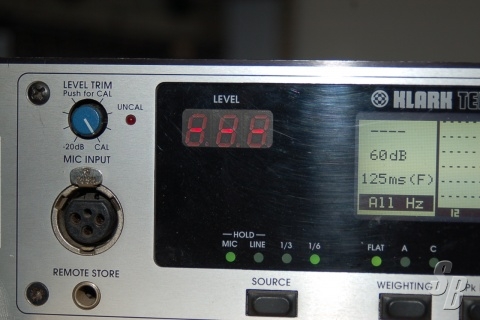

• FRONT PANEL MICROPHONE INPUT WITH 48V PHANTOM POWER.

• DUAL LINE LEVEL INPUTS FOR STEREO 1/3 OCTAVE ANALYSIS, WITH SUM AND DIFFERENCES DISPLAY OPTIONS.

• A AND C WEIGHTING FILTERS.

• FREQUENCY MODE INCLUDES 1/3 AND 1/6 OCTAVE SPECTRUM ANALYSIS VIA MIC OR LINE INPUTS.

• DN3600 INTERFACE FOR AUTO EQUALISATION FUNCTIONS.

• FAST ADJUSTMENT OF DISPLAY RANGE, LEVEL AND RESPONSE TIME.

• SWITCHABLE PEAK OR AVERAGE RESPONSES, WITH PEAK HOLD.

• INTERNAL SIGNAL GENERATOR WITH SINE WAVE AND BAND LIMITED PINK NOISE TEST SIGNALS.

• TEST SIGNAL BURST AND FREQUENCY SWEEP ABILITY WITH AUTOMATIC DATA CAPTURE.

• 32 MEMORY STORES, WITH ACCUMULATE AND OVERWRITE OPTION.

• MEMORY COMPARE AND RECALL FUNCTIONS.

• TIME MODE INCLUDES RT60 (REVERBERATION TIME), LEQ (EQUIVALENT SPL) AND LET (EQUIVALENT DOSE) MEASUREMENT.

• HIGH EFFICIENCY, VOLTAGE SENSING INTERNAL POWER SUPPLY.





TECHNICAL DATA

FREQUENCY RESPONSE 5HZ TO 40KHZ

MICROPHONE INPUT ONE,DIFFERENTIAL COMPATIBLE WITH MICROPHONE SENSITIVITIES FROM 0.25MV/UBAR TO1MV/UBAR SENSITIVITY 140DBSPL TO 50DBSPL (WITH OPTIONAL 6051 MICROPHONE) POWERING 48V DC PHANTOM POWER (NOMINAL) CONNECTOR XLR ON FRONT PANEL

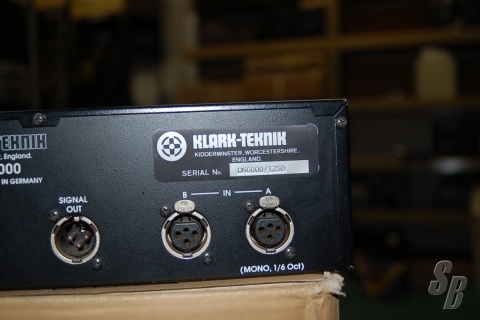

LINE INPUT TWO, DIFFERENTIAL BALANCED OR UNBALANCED SENSITIVITY +40DBU TO -50DBU IMPEDANCE 47K OHM CONNECTOR XLRS ON REAR PANEL

PINK NOISE OUTPUT TYPE DIGITAL PSEUDO-RANDOM WHITE NOISE GENERATOR WITH PINK NOISE FILTER FREQUENCY DISTRIBUTION -3DB/OCTAVE 20HZ TO 20KHZ ±0.2DB LEVEL +4DBU, -10DBU, -30DBU IMPEDANCE 50OHM BALANCED CONNECTOR XLR ON REAR PANEL

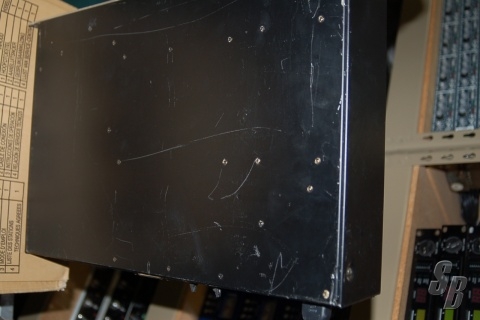

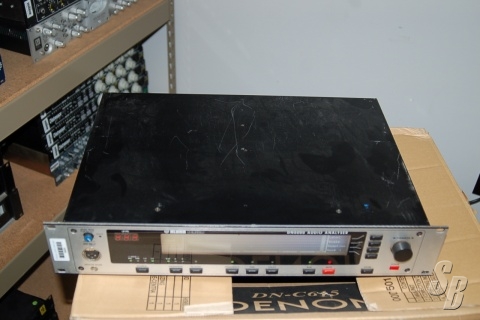

UNIT IS IN GOOD COSMETIC AND FUNCTIONAL CONDITION

EXTRAS: NONE

MODIFICATIONS: NONE

HISTORY: TOURING

COMMENTS: NONE

THIS UNIT WAS TOURED
