KLARK TEKNIK DN9344 HELIX QUAD NEW
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on October 17, 2008 - Viewed 175 times

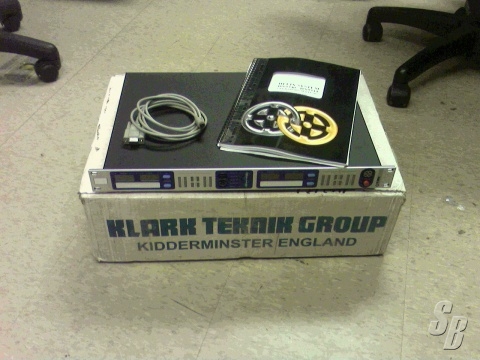

DESCRIPTION: KLARK TEKNIK DN9344 (?) (S#: DN9344/00307) LIKE NEW IN ORIGINAL PACKAGING (10)

FEATURES: DIGITAL INPUTS TWO
DIGITAL INPUTS TWO 2-CHANNEL INPUTS
TYPE AES / EBU
IMPEDANCE 110Ω
SAMPLE RATE 44.1KHZ, 48KHZ, 88.2KHZ*, 96KHZ*
WORD LENGTH 24-BIT OR 16-BIT
*SRC INPUT AT THESE SAMPLE RATES

ANALOGUE INPUTS FOUR
TYPE ELECTRONICALLY BALANCED (PIN 2 HOT)
IMPEDANCE (Ω) 20K
COMMON MODE REJECTION >80DB @ 1 KHZ

WORD CLOCK INPUT
TYPE BNC
IMPEDANCE 75Ω

DIGITAL OUTPUTS TWO 2-CHANNEL OUTPUTS
TYPE AES / EBU
IMPEDANCE 110Ω
SAMPLE RATE 44.1KHZ, 48KHZ, 88.2KHZ**, 96KHZ**
WORD LENGTH 24-BIT
**SRC OUTPUT - THESE RATES ARE ONLY AVAILABLE WHEN USED IN CONJUNCTION WITH A WORD CLOCK OR A DIGITAL INPUT RUNNING AT THAT FREQUENCY.

ANALOGUE OUTPUTS FOUR
TYPE ELECTRONICALLY BALANCED (PIN 2 HOT)
MAXIMUM LEVEL +21DBU INTO >2K

PERFORMANCE
FREQUENCY RESPONSE (20HZ TO 20KHZ) ±0.3 DB WITH ALL FILTERS AND EQ FLAT
DISTORTION (THD+N) @ +4DBU (20HZ TO 20 KHZ) <0.01%
DYNAMIC RANGE (20HZ-20KHZ UNWEIGHTED) 115 DB

PROCESSING (PER CHANNEL)
INPUT GAIN +12DB TO -40DB IN 0.1DB STEPS PLUS OFF
DELAY 0-1 SECOND (342.25 M OR 333'10” AT 20C IN 20.8US STEPS)
FILTERS 4 FILTERS (MAX)
TYPES LOW PASS, HIGH PASS, LOW SHELF, HIGH SHELF, NOTCH
DYNAMIC EQ 2 BANDS (MAX)
RANGE ±12DB
RESPONSES PROPORTIONAL, CONSTANT, SYMMETRICAL
PARAMETRIC EQ 12 BANDS (MAX)
RANGE ±12DB
RESPONSES PROPORTIONAL, CONSTANT, SYMMETRICAL
GRAPHIC EQ 31 BANDS ON ISO STANDARD FREQUENCIES
RANGE ±12DB
RESPONSES PROPORTIONAL, CONSTANT, SYMMETRICAL, DN27, DN360

POWER REQUIREMENTS
VOLTAGE 100V TO 240 V A.C. ±10%
CONSUMPTION <60W

TERMINATIONS
AUDIO INPUTS/OUTPUTS 3 PIN XLR
ETHERNET INPUTS/OUTPUTS ETHERCON
RS-232 8 PIN MINI-DIN SOCKET (FRONT)
9 PIN D-TYPE (REAR)
WORLD CLOCK BNC
POWER 3 PIN IEC

DIMENSIONS
WIDTH 483 MM (19INCH)
HEIGHT 88 MM (3.5 INCH) - (2RU)
DEPTH 303 MM (12 INCH)

WEIGHT
NET 4KG
SHIPPING 6KG

STS COMPATIBLE

EXTRAS: HAS MANUAL AND INTERFACE CABLE

MODIFICATIONS: NOPE

HISTORY: WAS INSTALLED IN MAIN WORSHIP CENTER FOR 1DAY. ENDED UP USING A DIFFERENT PIECE IN ITS PLACE. HAS BEEN IN BOX SINCE.

COMMENTS: NO PROBLEMS

WEBSITE LINK
HTTP://WWW.KLARKTEKNIK.COM/DN9344E.HTML

THIS UNIT WAS NEVER TOURED
