ID # 101041    CURRENT CATEGORY - PROCESSING


For Sale: LECTROSONICS ASPEN DIGITAL MATRIX AUDIO PROCESSOR
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on September 23, 2017 - Viewed 249 times

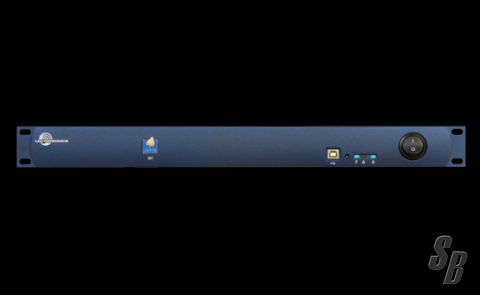

LECTROSONICS ASPEN DIGITAL MATRIX AUDIO PROCESSOR

LECTROSONICS ASPEN DIGITAL MATRIX AUDIO PROCESSOR - DANTE

PART# SPNDNT

DESCRIPTION:

  • CONNECTS DANTE™ NETWORKED AUDIO WITH ASPEN PROCESSORS
  • UP TO 32 INPUTS AND 32 OUTPUTS FROM THE DANTE NETWORK OPERATE AS NATIVE INPUTS AND OUTPUTS IN THE
    ASPEN DIGITAL MATRIX
  • LOW LATENCY, TIGHTLY SYNCHRONIZED TRANSPORT OF UNCOMPRESSED AUDIO OVER IP NETWORKS USING
    OFF THE SHELF SWITCHES
  • SIMPLIFIED CONFIGURATION MANAGEMENT INCLUDES EASY TO USE DANTE FEATURES LIKE AUTOMATIC DEVICE DISCOVERY
    AND PLUG AND PLAY NETWORKING
  • GIGABIT ETHERNET TRANSPORT
  • AVB SUPPORT
  • REDUNDANCY VIA SECONDARY NETWORK

IN ESSENCE, THE SPNDNT IS A FULL FUNCTION DSP MIXER AND PROCESSOR LIKE OTHER ASPEN MODELS EXCEPT THAT INSTEAD OF ANALOG I/O PORTS, IT USES DIGITAL NETWORK DANTE PORTS. THE PROCESSOR COMBINES DANTE NETWORKED DIGITAL AUDIO WITH THE ASPEN DIGITAL MATRIX TO EXPAND SIGNAL ROUTING OPTIONS. THE ON-BOARD AUDINATE® BROOKLYN II MODULE FUNCTIONS AS A NATIVE DANTE DEVICE USING STANDARD ETHERNET OR AVB COMPLIANT SWITCHES.

THE PROCESSOR ALSO HANDLES THE CLOCK SYNCHRONIZATION FOR THE ASPEN EQUIPMENT AND THE DANTE NETWORK. IF THE PROCESSOR IS THE DANTE MASTER, IT GENERATES THE CLOCK SIGNAL FOR THE NETWORK AND THE ASPEN RACK. IF THE PROCESSOR IS A DANTE SLAVE, IT PICKS UP THE NETWORK CLOCK AND PASSES IT ON TO THE ASPEN SYSTEM BELOW IT. MULTIPLE DANTE EQUIPPED DEVICES WILL AUTOMATICALLY DISCOVER ONE ANOTHER AND CONFIGURE THE MASTER/SLAVE RELATIONSHIP.

REDUNDANCY, WHICH IS REQUIRED IN SOME APPLICATIONS, IS ACCOMPLISHED BY CONNECTING TO A SECONDARY NETWORK THAT DUPLICATES REAL-TIME AUDIO TRAFFIC. IF THE PRIMARY NETWORK FAILS FOR ANY REASON, THE SECONDARY NETWORK’S AUDIO CONTINUES WITHOUT LOSING EVEN A SINGLE SAMPLE.

ACCESSORIES INCLUDED:

  • 1 - POWER CORD (PART #21499)
  • 1 - 25-PIN CONNECTOR (PART #21558)
  • 1 - USB CABLE (PART #21713)
  • 1 - TELEPHONE CABLE (PART #21753)
  • 1 - PATCH CABLE (PART #21802)
  • 1 - ADJUSTMENT TOOL (PART #35679)
  • 1 - SOFTWARE CD (PART #ASPENNETWIN)
  • 1 - MANUAL

BRAND NEW WITH MANUFACTURER WARRANTY

WWW.SOUNDBROKER.COM  LINKING BUYERS AND SELLERS TOGETHER SINCE 1997 FOR NEW AND USED PROFESSIONAL AUDIO, LIGHTING, STAGING, PROJECTORS, AND VIDEO EQUIPMENT.

Additional Details
ID#: 101041
Listing Type:
Standard
Model: SPNDNT
Manufacturer: LECTROSONICS
Condition: MFG A STOCK
Shipping Info: 0.00 lbs.,
Seller's Location: NM, USA
Updated: September 23, 2017
M.S.R.P.: $0.00
Offered at: Contact Us
