MIC -PRE AMP
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on January 09, 2013 - Viewed 142 times

ATI ATI PRO6 (YOM: ??) (S#: ?) GOOD (7-8)

FEATURES: DESIGNED BY ENGINEERS FOR ENGINEERS, THE ATI PRO 6 BRINGS A NEW LEVEL OF FLEXIBILITY TO ANY SOUND REPRODUCTION SYSTEM. THE PRO 6 IS SUPERB IN BOTH THE MANIPULATION OF SIMPLE AUDIO PARAMETERS AND THE CREATION OF SOPHISTICATED, DRAMATIC EFFECTS.

THE HEART OF THE PRO 6 IS A PROPRIETARY, PADLESS, HIGH VOLTAGE PREAMPLIFIER DESIGN WHOSE SONIC CHARACTERISTICS COMPLEMENT THE MOST ESOTERIC OF MICROPHONE SELECTIONS. THE PRO 6 IS FITTED WITH A FULLY PARAMETRIC, FOUR BAND EQUALIZER AND SWITCHABLE PEAKING AND SHELVING ON EACH BAND AS WELL AS 24 DB/OCTAVE HIGH AND LOW PASS FILTERS.

CLEARLY THE MOST UNIQUE FEATURE OF THE PRO 6 IS ITS PATENTED, AWARDING WINNING COMPRESSOR. THE UNIQUE DESIGN PROTECTS THE SENSITIVE HIGH FREQUENCY CONTENT OF THE AUDIO SIGNAL EVEN UNDER THE MOST VIGOROUS OF COMPRESSION RATIOS. ADDITIONAL CONTROL IS PROVIDED BY A FULLY PARAMETRIC NOISE GATE/DUCKER WITH UP TO 4 SECONDS OF DECAY AND AVAILABLE ATTENUATION EXCEEDING 60DB. THE TWO KEY FILTERS DEFINE THE BANDWIDTH OF THE GATE THRESHOLD AND THEIR OUTPUT CAN BE MONITORED FOR AUDIBLE TUNING.

THE GATE AND COMPRESSOR CONTROL VOLTAGES MAY INDIVIDUALLY BE LINKED FOR STEREO OPERATION OR WHERE MULTIPLE UNIT APPLICATION IS REQUIRED. ADDITIONALLY, THE EXTERNAL AUDIO KEY INPUTS HAVE SEPARATE JACKS FOR EACH DYNAMICS PROCESSING DEVICE. COMPREHENSIVE METERING OF AUDIO IN/OUT, GATE ATTENUATION AND COMPRESSION IS PROVIDED VIA THREE 10 SEGMENT LED LADDERS.

ALL SWITCHES USED ON THE PRO 6 ARE GOLD PLATED, SELF CLEANING AND SELF WIPING. THE POTENTIOMETERS ARE RATED FOR OVER 10,000 CYCLES AND ARE HIGH TRACK-ING. ALL RESISTORS USED IN AUDIO SIGNAL PATHS ARE 1% METALFILM. THE POWER SUPPLY IS FULLY REGULATED AND SUPPLIES ±20V TO ALL AUDIO SIGNAL PATHS ENSURING OPTIMUM HEADROOM.


PRO6 FEATURES:

ATI'S SIGNATURE HIGH-VOLTAGE MIC PREAMP
HIGH/LOW PASS FILTERS @ 24DB/OCTAVE
4-BAND FULLY PARAMETRIC EQUALIZER WITH PEAKING/SHELVING ON ALL BANDS
ATI'S PATENTED RMS COMPRESSOR
PARAMETRIC NOISE GATE/DUCKER INCLUDING SWEEP KEY FILTER AND KEY LISTEN
SEPARATE AUX OUTPUT WITH LEVEL CONTROL AND SIGNAL SOURCE SELECTION
STEREO LINK ABILITY FOR GATE AND COMPRESSOR INDIVIDUALLY
SEPARATE GATE AND COMPRESSOR EXTERNAL AUDIO TRIGGER INPUTS
EXTENSIVE METERING OF AUDIO IN/OUT, GATE AND COMPRESSOR
FULLY BALANCED INPUTS & OUTPUTS


TECHNICAL SPECS
FREQUENCY RESPONSE:
+0/–1 DB, 10HZ–100KHZ
(OR AS DEFINED BY HP/LP FILTERS)


HIGH/LOW PASS FILTERS:
10HZ–320HZ HPF
1.2KHZ–40KHZ LPF
4TH ORDER, 24DB/OCTAVE MODIFIED BESSEL
GAIN STRUCTURE:
20DB HEADROOM THROUGHOUT
THD: 0.008%, 20HZ–20KHZ, AT +4DBM
CLIPPING LEVEL – ALL STAGES: +24DBM
TOTAL VOLTAGE GAIN: 75 DB AT AUX OUT


COMPRESSOR/LIMITER:
RMS LEVEL DETECTION
HARD/SOFT KNEE SELECTION
THRESHOLD: –40DBM TO +10DBM
RATIO: 1:1 TO 10:1
GAIN: 0 DB TO +20 DB
GAIN REDUCTION DISPLAY, 20 DB RANGE
HUM AND NOISE:
(20KHZ BANDWIDTH)
–132 DBM E.I.N. (SHORTED INPUT)
–129 DBM E.I.N. (150 OHM SOURCE)
–90 DBM RESIDUAL OUTPUT NOISE




EQ:
4 BAND PARAMETRIC, ALL PEAK/SHELF TYPE
LF: 30HZ–480HZ LM:150HZ–2.4KHZ
HM: 500HZ–8KHZ HF: 1KHZ–16KHZ
INFINITE HEADROOM IN FILTER STAGES
TRUE LINEAR DB SCALE FOR CUT/BOOST
ULTRA LOW NOISE/LOW DISTORTION
MAXIMUM CUT/BOOST ±15 DB
VARIABLE Q FROM 0.3 TO 3 OCTAVES
INPUT PREAMP/TRIM CONTROL:
PROPRIETARY HIGH VOLTAGE PREAMP
ADJUSTABLE GAIN 0–65DB, SINGLE CONTROL
(NO PAD REQUIRED)
41 POSITION DETENTED LEVEL CONTROL
CONSTANT INPUT IMPEDANCE: 4K OHMS
THD 0.005% AT ALL LEVELS AND GAINS
CMR >80 DB, NO TRIMMING REQUIRED
RMS LEVEL DISPLAY –30 DB RANGE
PHANTOM POWER +48 VOLTS


NOISE GATE/ DUCKER:
KEY FILTERS: HP/LP 24DB/OCT.,50HZ TO 8KHZ
(FILTERS MAY BE CUED)
THRESHOLD: –40DBM TO +10DBM
ATTENUATION DEPTH: 0 TO 60 DB
ATTACK TIME: 10US TO 100MS
HOLD TIME: 4MS TO 4S
DECAY TIME: 4MS TO 4S
GAIN REDUCTION DISPLAY –60 DB RANGE

GENERAL/PHYSICAL

CONNECTORS:
INPUT AND OUTPUT: XL-TYPE 3 PIN (PIN 2
HIGH)
LINK, INSERT AND EXT. KEY: 1/4 IN. (63MM)
PHONE JACKS
AC INPUT: FUSED, VOLTAGE SELECTABLE
AC LINE CORD: IEC TYPE, DETACHABLE
DIMENSIONS:
1U, 1 3/4 X 19 IN. (44MM X 483MM)
11 IN. DEPTH BEHIND FRONT PANEL (280MM)
WEIGHT:
7 LBS. (3.2KG)
ELECTRICAL REQUIREMENTS:
100–120/220–240 V AC, 50–60 HZ,
<60 WATTS

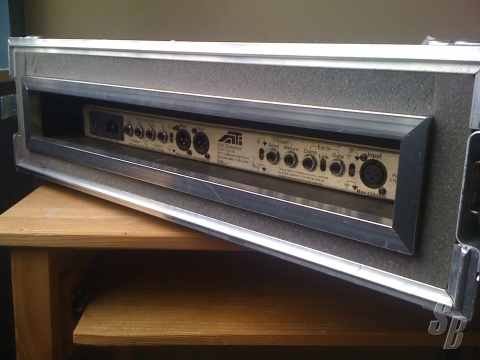

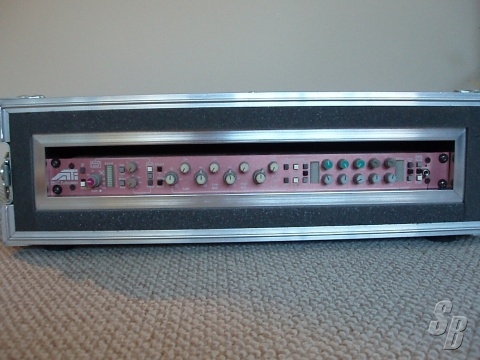

EXTRAS: I WILL INCLUDE ITS OWN CUSTOM MADE ROAD CASE

MODIFICATIONS: NO

HISTORY: THIS MIC PRE AMP WAS USED IN TOURING APPLICATIONS AND IT WAS INSERTED ON THE MAIN VOCAL STRIP , NEVER HAD A PROBLEM AND MAIN VOCAL ALWAYS GOLD!

COMMENTS: THERE'S A LITTLE CRACK ON THE BOTTOM RIGHT , BUT THIS NOT AFFECT THE PERFORMANCE OF THE UNIT AT ALL.

THIS UNIT WAS TOURED
