TC ELECTRONIC D-TWO
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on January 20, 2009 - Viewed 108 times

TC ELECTRONIC D-TWO (YOM: ?) (S#: TBD) GOOD (7-8)

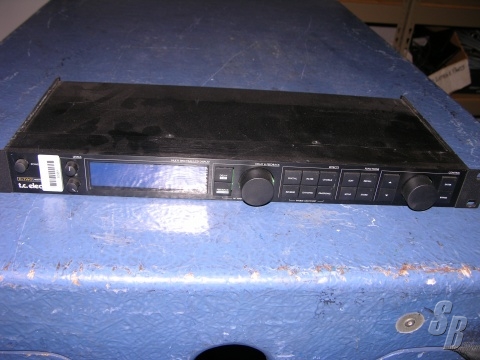

FEATURES: FOR SALE IS A TC ELECTRONIC D-TWO MULTITAP RHYTHM DELAY

TECHNICAL INFO

DIGITAL INPUTS AND OUTPUTS
CONNECTORS: RCA PHONO (S/PDIF)
FORMATS: S/PDIF (24-BIT), EIAJ CP-340, IEC 958
OUTPUT DITHER: HPF/TPDF DITHER 24/20/16/8 BIT
SAMPLE RATES: 44.1 KHZ, 48 KHZ
PROCESSING DELAY: 0.1 MS @ 48 KHZ
FREQUENCY RESPONSE DIO: DC TO 23.9 KHZ ± 0.01 DB @ 48 KHZ

ANALOG INPUTS
CONNECTORS: 1/4" PHONE JACK, BALANCED
IMPEDANCE, BALANCED/UNBALANCED: 21 KOHM / 13 KOHM
MAX. INPUT LEVEL: +24 DBU
MIN. INPUT LEVEL FOR 0 DBFS: 0 DBU
SENSITIVITY: @12 DB HEADROOM: -12 DBU TO +12 DBU
A TO D CONVERSION: 24-BIT, 128X OVERSAMPLING BIT-STREAM
A TO D DELAY: 0.65 MS / 0.70 MS @ 48 KHZ / 44.1 KHZ
DYNAMIC RANGE: 100 DB TYP, 20 HZ - 20 KHZ
THD: TYP < 92 DB (0,0025 %) @ 1 KHZ
FREQUENCY RESPONSE: +0/-0.1 DB @ 48 KHZ, 20 HZ TO 20 KHZ
CROSSTALK: <-95 DB, 20 HZ TO 20 KHZ

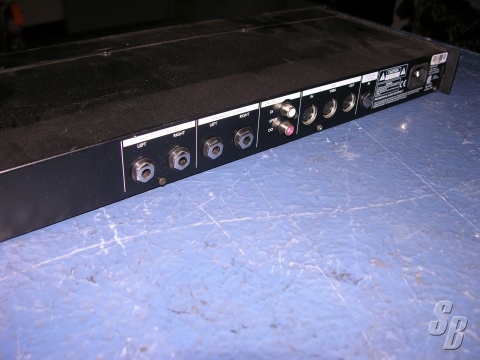

ANALOG OUTPUTS
CONNECTORS: 1/4" PHONE JACK, BALANCED
IMPEDANCE BAL/UNBAL: 40 OHM
MAX. OUTPUT LEVEL: +20 DBU (BALANCED)
OUTPUT RANGES: BALANCED: 20/14/8/2 DBU
UNBALANCED: 14/8/2 DBU
D TO A CONVERSION: 24-BIT, 128X OVERSAMPLING BIT-STREAM
D TO A DELAY: 0.63 MS / 0.68 MS @ 48 KHZ / 44.1 KHZ
DYNAMIC RANGE: 104 DB TYP, 20 HZ TO 20 KHZ
THD: TYP <-94 DB (0.002 %) @ 1 KHZ, +20 DBU OUTPUT
FREQUENCY RESPONSE: +0/-0.5 DB @ 48 KHZ, 20 HZ TO 20 KHZ
CROSSTALK: <-100 DB, 20 HZ TO 20 KHZ

EMC
COMPLIES WITH: EN 55103-1 AND EN 55103-2
FCC PART 15, CLASS B, CISPR 22, CLASS B

SAFETY
CERTIFIED TO: IEC 65, EN 60065, UL6500, AND CSA E65

ENVIRONMENT
OPERATING TEMPERATURE: 32Á F TO 122Á F (0Á C TO 50Á C)
STORAGE TEMPERATURE: -22Á F TO 167Á F (-30Á C TO 70Á C)
HUMIDITY: MAX. 90 % NON-CONDENSING

CONTROL INTERFACE
MIDI: IN/OUT/THRU: 5-PIN DIN
PEDAL: 1/4" PHONE JACK

GENERAL
FINISH: ANODIZED ALUMINUM FRONT
PLATED AND PAINTED STEEL CHASSIS
DISPLAY: 23 CHARACTER / 280 ICON STN-LCD DISPLAY
DIMENSIONS: 19 X 1.75 X 8.2 IN. (483 X 44 X 195MM)
WEIGHT: 4.1 LB. (1.85 KG)
MAINS VOLTAGE: 100 TO 240 VAC, 50 TO 60 HZ (AUTO-SELECT)
POWER CONSUMPTION: <15 W



UNIT IS IN GOOD COSMETIC AND FUNCTIONAL CONDITION

EXTRAS: NONE

MODIFICATIONS: NONE

HISTORY: TOURING

COMMENTS: NONE

THIS UNIT WAS TOURED
